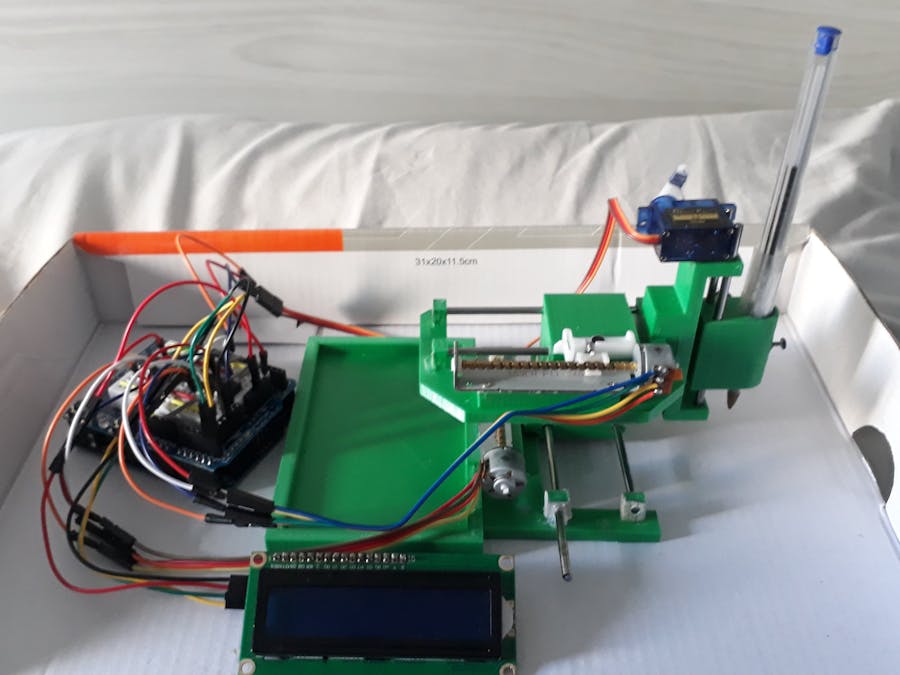

#include <Servo.h>
#include <Stepper.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>

#define LINE_BUFFER_LENGTH 512

LiquidCrystal_I2C lcd(0x3f, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE);
float total = 1.0;
String lcdText = "";
String percentText = "";
float cont = 0.0;
float percent = 0.0;



// Servo position for Up and Down
const int penZUp = 30;
const int penZDown = 120;

// Servo on PWM pin 8
const int penServoPin = 8;

const int stepsPerRevolution = 20;

Servo penServo;

// Initialize steppers for X- and Y-axis using this Arduino pins for the L293D H-bridge
Stepper myStepperY(stepsPerRevolution, 9,12,10,13);
Stepper myStepperX(stepsPerRevolution, 7,4,3,6);

struct point {
  float x;
  float y;
  float z;
};

// Current position of plothead
struct point actuatorPos;

//  Drawing settings, should be OK
float StepInc = 1;
int StepDelay = 0;
int LineDelay = 50;
int penDelay = 50;

// Calculate steps per mm. Enter here.
float StepsPerMillimeterX = 8.0;
float StepsPerMillimeterY = 8.0;

// Drawing robot limits, in mm
float Xmin = 0;
float Xmax = 22;
float Ymin = 0;
float Ymax = 22;
float Zmin = 0;
float Zmax = 1;

float Xpos = Xmin;
float Ypos = Ymin;
float Zpos = Zmax;

// Set to true to get debug output.
boolean verbose = true;

//  Needs to interpret
//  G1 for moving
//  G4 P300 (wait 150ms)
//  M300 S30 (pen down)
//  M300 S50 (pen up)
//  Discard anything with a (
//  Discard any other command!

/**********************
 * void setup() - Initialisations
 ***********************/
void setup() {
  //  Setup
  Serial.begin( 9600 );
  lcd.begin (16,2);
  lcd.setBacklight(HIGH);

  penServo.attach(penServoPin);
  penServo.write(penZUp);
  delay(200);

  // Decrease if necessary
  myStepperX.setSpeed(300);
  myStepperY.setSpeed(300);

  //  Set & move to initial default position
  // TBD

  //  Notifications!!!
  Serial.println("Ready to print");
  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("Ready to print");
}


void loop()
{
  delay(200);
  char line[ LINE_BUFFER_LENGTH ];
  char c;
  int lineIndex;
  bool lineIsComment, lineSemiColon;

  lineIndex = 0;
  lineSemiColon = false;
  lineIsComment = false;



  while (1) {

    // Serial reception
    while ( Serial.available()>0 ) {

      c = Serial.read();
      if (( c == '\n') || (c == '\r') ) {
        if ( lineIndex > 0 ) {
          line[ lineIndex ] = '\0';
          if (verbose) {
            Serial.print( "Received : ");
            Serial.println( line );
          }
          processIncomingLine( line, lineIndex );
          lineIndex = 0;
        }

        lineIsComment = false;
        lineSemiColon = false;
        Serial.println("ok");
      }
      else {
        if ( (lineIsComment) || (lineSemiColon) ) {
          if ( c == ')' )  lineIsComment = false;
        }
        else {
          if ( c == '(' ) {
            lineIsComment = true;
          }
          else if ( c == ';' ) {
            lineSemiColon = true;
          }
          else if ( lineIndex >= LINE_BUFFER_LENGTH-1 ) {
            Serial.println( "ERROR - lineBuffer overflow" );
            lineIsComment = false;
            lineSemiColon = false;
          }
          else if ( c >= 'a' && c <= 'z' ) {
            line[ lineIndex++ ] = c-'a'+'A';
          }
          else {
            line[ lineIndex++ ] = c;
          }
        }
      }
    }
  }
}

void processIncomingLine( char* line, int charNB ) {
  int currentIndex = 0;
  char buffer[ 64 ];
  struct point newPos;

  newPos.x = 0.0;
  newPos.y = 0.0;

  //  G1 for moving
  //  G1 X60 Y30
  //  G1 X30 Y50
  //  M300 S30 (pen down)
  //  M300 S50 (pen up)

  while( currentIndex < charNB ) {
    switch ( line[ currentIndex++ ] ) {
    case 'G':
      buffer[0] = line[ currentIndex++ ];
      //      buffer[1] = line[ currentIndex++ ];
      //      buffer[2] = '\0';
      buffer[1] = '\0';

      switch ( atoi( buffer ) ){
      case 0:
      case 1:
        char* indexX = strchr( line+currentIndex, 'X' );
        char* indexY = strchr( line+currentIndex, 'Y' );
        if ( indexY <= 0 ) {
          newPos.x = atof( indexX + 1);
          newPos.y = actuatorPos.y;
        }
        else if ( indexX <= 0 ) {
          newPos.y = atof( indexY + 1);
          newPos.x = actuatorPos.x;
        }
        else {
          newPos.y = atof( indexY + 1);
          indexY = '\0';
          newPos.x = atof( indexX + 1);
        }
        drawLine(newPos.x, newPos.y );
        actuatorPos.x = newPos.x;
        actuatorPos.y = newPos.y;
        break;
      }
        cont++;
        lcdPrint();
      break;
    case 'M':
      buffer[0] = line[ currentIndex++ ];
      buffer[1] = line[ currentIndex++ ];
      buffer[2] = line[ currentIndex++ ];
      buffer[3] = '\0';
      switch ( atoi( buffer ) ){
      case 300:
        {
          char* indexS = strchr( line+currentIndex, 'S' );
          float Spos = atof( indexS + 1);
          if (Spos == 30) {
            penDown();
          }
          if (Spos == 50) {
            penUp();
          }
          break;
        }
      case 114:
        Serial.print( "Absolute position : X = " );
        Serial.print( actuatorPos.x );
        Serial.print( "  -  Y = " );
        Serial.println( actuatorPos.y );
        break;
      default:
        Serial.print( "Command not recognized : M");
        Serial.println( buffer );
      }
      cont++;
      lcdPrint();
    break;
    case 'C':
        Serial.println("flag");
        buffer[0] = line[ currentIndex++ ];
        buffer[1] = line[ currentIndex++ ];
        buffer[2] = line[ currentIndex++ ];
        buffer[3] = line[ currentIndex++ ];
        buffer[4] = '\0';
        total = atoi(buffer);

      break;
    }
  }



}


/*********************************
 * Draw a line from (x0;y0) to (x1;y1).
 * Bresenham algo from https://www.marginallyclever.com/blog/2013/08/how-to-build-an-2-axis-arduino-cnc-gcode-interpreter/
 **********************************/
void drawLine(float x1, float y1) {

  if (verbose)
  {
    Serial.print("fx1, fy1: ");
    Serial.print(x1);
    Serial.print(",");
    Serial.print(y1);
    Serial.println("");
  }

  //  Bring instructions within limits
  if (x1 >= Xmax) {
    x1 = Xmax;
  }
  if (x1 <= Xmin) {
    x1 = Xmin;
  }
  if (y1 >= Ymax) {
    y1 = Ymax;
  }
  if (y1 <= Ymin) {
    y1 = Ymin;
  }

  if (verbose)
  {
    Serial.print("Xpos, Ypos: ");
    Serial.print(Xpos);
    Serial.print(",");
    Serial.print(Ypos);
    Serial.println("");
  }

  if (verbose)
  {
    Serial.print("x1, y1: ");
    Serial.print(x1);
    Serial.print(",");
    Serial.print(y1);
    Serial.println("");
  }

  //  Convert coordinates to steps
  x1 = (int)(x1*StepsPerMillimeterX);
  y1 = (int)(y1*StepsPerMillimeterY);
  float x0 = Xpos;
  float y0 = Ypos;

  //  Let's find out the change for the coordinates
  long dx = abs(x1-x0);
  long dy = abs(y1-y0);
  int sx = x0<x1 ? StepInc : -StepInc;
  int sy = y0<y1 ? StepInc : -StepInc;

  long i;
  long over = 0;

  if (dx > dy) {
    for (i=0; i<dx; ++i) {
      myStepperX.step(sx);
      over+=dy;
      if (over>=dx) {
        over-=dx;
        myStepperY.step(sy);
      }
      delay(StepDelay);
    }
  }
  else {
    for (i=0; i<dy; ++i) {
      myStepperY.step(sy);
      over+=dx;
      if (over>=dy) {
        over-=dy;
        myStepperX.step(sx);
      }
      delay(StepDelay);
    }
  }

  if (verbose)
  {
    Serial.print("dx, dy:");
    Serial.print(dx);
    Serial.print(",");
    Serial.print(dy);
    Serial.println("");
  }

  if (verbose)
  {
    Serial.print("Going to (");
    Serial.print(x0);
    Serial.print(",");
    Serial.print(y0);
    Serial.println(")");
  }

  //  Delay before any next lines are submitted
  delay(LineDelay);
  //  Update the positions
  Xpos = x1;
  Ypos = y1;
}

//  Raises pen
void penUp() {
  penServo.write(penZUp);
  delay(LineDelay);
  Zpos=Zmax;
  if (verbose) {
    Serial.println("Pen up!");
  }
}
//  Lowers pen
void penDown() {
  penServo.write(penZDown);
  delay(LineDelay);
  Zpos=Zmin;
  if (verbose) {
    Serial.println("Pen down.");
  }
}

void lcdPrint(){
  percent = (cont/total)*100;
  if(percent<10){
    percentText = "0"+String((int)percent)+"%";
  }else{
    percentText = String((int)percent)+"%";
  }
  if(!lcdText.equals(percentText)){
    lcdText = percentText;
    lcd.clear();
    lcd.setCursor(0,0);
    lcd.print(lcdText);
  }
  if(lcdText.equals("100%")){
    cont = 0;
    lcdText = "Finish";
    lcd.clear();
    lcd.setCursor(0,0);
    lcd.print(lcdText);
  }
    Serial.println(percentText);
}
