Home automation is building automation for a home, called a smart home or smart house. A home automation system will monitor and/or control home attributes such as lighting, climate, entertainment systems, and appliances. It may also include home security such as access control and alarm systems. When connected with the Internet, home devices are an important constituent of the Internet of Things.Project AIM : Smart Module can control Home electronics Appliances using Smart phone, Touch Control, IR remote and voice assistant like Alexa and Google.
By using CYPRESS chip able to achieve project aim.

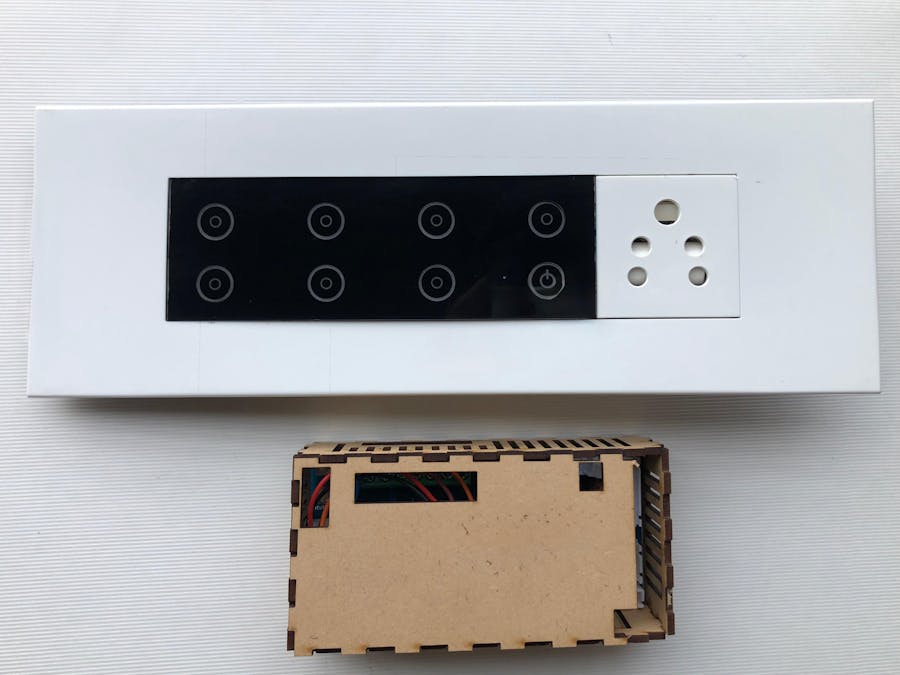

Pilot project design
Touch Input
Voice Input
For the demo purpose we are starting with 4 light controls and 1 fan control. Below diagram is the schematic diagram of the power module.
Schematic diagram of Power Module
Below diagram is the schematic diagram of the touch module.
#include"project.h"#include"stdlib.h"#include"cyapicallbacks.h"voidupdateLoad(void);voidloadWrite(uint8,uint8);voidHandleError(void);voidi2cReceive(void);#define LightloadNumber 4#define FanLoadNumber 1uint8state_switch[LightloadNumber];//status of touch switchuint8pre_switch[LightloadNumber];//previous status of touch switchuint8state_load[LightloadNumber];//status of loaduint8state[LightloadNumber+FanLoadNumber+1];//state for communication uint8pre_state[LightloadNumber+FanLoadNumber+1];//state for communication uint8state_Fswitch[FanLoadNumber];//status of fan switchuint8pre_Fswitch[FanLoadNumber];//previous status of fan switchuint8fan_state[2];uint8state_Fan[FanLoadNumber];//status of fan regulatoruint8Switch[]={0,1,2,3};// touch swich for light load(cap sense button 0,1,2,3)uint8Load[]={0,1,2,3};//load connection for switch (L0,L1,L2,L3)(relay)uint8F_UP_DWN[2]={5,4};//fan up and down touch switch(cap sense button 5,6)uint8Fan[4]={7,6,5,4};//fan output connection(L4,L5,L6,L7)uint8Fan_led[5]={12,11,10,9,8};// fan speed indicator led(L8,L9,L10,L11,L12)uint8white_led_load[]={13,14,15,16};//white led for each load(L13,L14,L15,L16)uint8Fan_UDW[2]={18,17};//fan up down white leduint8Fan_UDB[2]={22,21};//fan up down blue led// smd button down/*uint8 F_switch[] = {6}; //fan touch switch (cap sense button 4)uint8 Fan_BW[2] = {20,19}; //fan blue and white led uint8 Scenebut = {7}; //touch switch for smd pad(cap sense button 7)uint8 scene_BW[2] = {23,24}; //smd switch up down blue led*/// smd button upuint8F_switch[]={7};//fan touch switch (cap sense button 4)uint8Fan_BW[2]={24,23};//fan blue and white led uint8Scenebut={6};//touch switch for smd pad(cap sense button 7)uint8scene_BW[2]={19,20};//smd switch up down blue leduint8ScenebutStatus=0;uint8pre_ScenebutStatus=0;uint8whiteLed=1;//status of activation of white led of all loads//i2cuint8i2cReadBuffer[(LightloadNumber+FanLoadNumber+1)];uint8i2cWriteBuffer[(LightloadNumber+FanLoadNumber+1)];uint8I2CFlag=0u;uint8sceneled=0;uint8speed=0;intonOffFlag=0;uint8flag=0;voidI2C_I2C_ISR_ExitCallback(){I2CFlag=1;}intmain(void){memset(state_switch,0,sizeof(state_switch));memset(pre_switch,0,sizeof(pre_switch));memset(state,0,sizeof(state));memset(state_load,0,sizeof(state_load));memset(pre_state,0,sizeof(pre_state));memset(state_Fswitch,0,sizeof(state_Fswitch));memset(pre_Fswitch,0,sizeof(pre_Fswitch));memset(fan_state,0,sizeof(fan_state));memset(i2cReadBuffer,0,sizeof(i2cReadBuffer));L13_Write(whiteLed);L14_Write(whiteLed);L15_Write(whiteLed);L16_Write(whiteLed);L17_Write(whiteLed);L18_Write(whiteLed);L19_Write(whiteLed);L23_Write(whiteLed);I2C_I2CSlaveInitReadBuf(i2cReadBuffer,(LightloadNumber+FanLoadNumber+1));I2C_I2CSlaveInitWriteBuf(i2cWriteBuffer,(LightloadNumber+FanLoadNumber+1));I2C_I2C_ISR_ExitCallback();CyGlobalIntEnable;CySysWdtWriteMode(CY_SYS_WDT_COUNTER1,CY_SYS_WDT_MODE_RESET);CySysWdtWriteMatch(CY_SYS_WDT_COUNTER1,0xFA00);CySysWdtWriteClearOnMatch(CY_SYS_WDT_COUNTER1,1u);CySysWdtEnable(CY_SYS_WDT_COUNTER1_MASK);CapSense_1_Start();CapSense_1_InitializeAllBaselines();I2C_Start();for(;;){if(0u==CapSense_1_IsBusy()){/* Update all baselines */CapSense_1_ProcessAllWidgets();/* Start scanning all enabled sensors */CapSense_1_ScanAllWidgets();}ScenebutStatus=CapSense_1_IsWidgetActive(Scenebut);if(ScenebutStatus!=pre_ScenebutStatus){if(ScenebutStatus!=0&&onOffFlag==0){onOffFlag=1;for(inti=0;i<LightloadNumber+FanLoadNumber;i++){if(i<LightloadNumber)loadWrite(Load[i],0);state[i]=0;}loadWrite(Fan_BW[0],0);if(whiteLed==1){for(inti=0;i<LightloadNumber;i++){loadWrite(white_led_load[i],1);}loadWrite(Fan_BW[1],1);}}elseif(ScenebutStatus!=0&&onOffFlag==1){onOffFlag=0;for(inti=0;i<LightloadNumber+FanLoadNumber;i++){if(i<LightloadNumber)loadWrite(Load[i],1);state[i]=1;}loadWrite(Fan_BW[0],1);if(whiteLed==1){for(inti=0;i<LightloadNumber;i++){loadWrite(white_led_load[i],0);}loadWrite(Fan_BW[1],0);}}pre_ScenebutStatus=ScenebutStatus;}if(state[0]!=1&&state[1]!=1&&state[2]!=1&&state[3]!=1&&state[4]!=1){onOffFlag=1;}else{onOffFlag=0;}if(state[0]==1&&state[1]==1&&state[2]==1&&state[3]==1&&state[4]==1){if(whiteLed==1)loadWrite(scene_BW[0],0);loadWrite(scene_BW[1],1);}else{if(whiteLed==1)loadWrite(scene_BW[0],1);loadWrite(scene_BW[1],0);}for(uint8i=0;i<LightloadNumber;i++){state_switch[i]=CapSense_1_IsWidgetActive(Switch[i]);if(state_switch[i]!=pre_switch[i]){if(state_switch[i]!=0){if(state[i]!=0)state_load[i]=0;elsestate_load[i]=1;loadWrite(Load[i],state_load[i]);state[i]=state_load[i]?1:0;if(whiteLed==1)loadWrite(white_led_load[i],!(state_load[i]));}pre_switch[i]=state_switch[i];}}state_Fswitch[0]=CapSense_1_IsWidgetActive(F_switch[0]);if(state_Fswitch[0]!=pre_Fswitch[0]){if(state_Fswitch[0]!=0){if(state[4]!=0)state_Fan[0]=0;elsestate_Fan[0]=1;loadWrite(Fan_BW[0],state_Fan[0]);state[4]=state_Fan[0]?1:0;if(whiteLed==1)loadWrite(Fan_BW[1],!(state_Fan[0]));for(uint8i=0;i<4;i++)loadWrite(Fan[i],0);if(state[4]==1){if(speed==1){loadWrite(Fan[1],1);}elseif(speed==2){loadWrite(Fan[2],1);}elseif(speed==3){loadWrite(Fan[0],1);loadWrite(Fan[2],1);}elseif(speed==4){loadWrite(Fan[1],1);loadWrite(Fan[2],1);}elseif(speed==5){loadWrite(Fan[3],1);}}elseif(state[4]==0){for(uint8i=0;i<4;i++)loadWrite(Fan[i],0);}}pre_Fswitch[0]=state_Fswitch[0];}if(CapSense_1_IsWidgetActive(F_UP_DWN[0])!=fan_state[0]){if(CapSense_1_IsWidgetActive(F_UP_DWN[0])!=0){if(speed!=5)speed++;//fan state[3] increase by 1elsespeed=0;fan_state[0]=!(fan_state[0]);loadWrite(Fan_UDW[0],0);// fan up white led offloadWrite(Fan_UDB[0],1);//fan up blue led on}else{loadWrite(Fan_UDB[0],0);//fan up blue led offif(whiteLed==1)loadWrite(Fan_UDW[0],1);//fan up white led off}fan_state[0]=(CapSense_1_IsWidgetActive(F_UP_DWN[0]));}if(CapSense_1_IsWidgetActive(F_UP_DWN[1])!=fan_state[1]){//check if fan down touch pad is pressedif(CapSense_1_IsWidgetActive(F_UP_DWN[1])!=0){if(speed!=0)speed--;//fan state[3] decrease by 1elsespeed=5;fan_state[1]=!(fan_state[1]);loadWrite(Fan_UDW[1],0);loadWrite(Fan_UDB[1],1);}else{loadWrite(Fan_UDB[1],0);if(whiteLed==1)loadWrite(Fan_UDW[1],1);}fan_state[1]=(CapSense_1_IsWidgetActive(F_UP_DWN[1]));}if(speed==0){state[5]=0;for(inti=0;i<5;i++){loadWrite(Fan_led[i],0);}}elseif(speed==1){state[5]=1;loadWrite(Fan_led[0],1);for(inti=1;i<5;i++){loadWrite(Fan_led[i],0);}}elseif(speed==2){state[5]=2;for(inti=0;i<2;i++){loadWrite(Fan_led[i],1);}for(inti=2;i<5;i++){loadWrite(Fan_led[i],0);}}elseif(speed==3){state[5]=3;for(inti=0;i<3;i++){loadWrite(Fan_led[i],1);}for(inti=3;i<5;i++){loadWrite(Fan_led[i],0);}}elseif(speed==4){state[5]=4;for(inti=0;i<4;i++){loadWrite(Fan_led[i],1);}loadWrite(Fan_led[4],0);}elseif(speed==5){state[5]=5;for(inti=0;i<5;i++){loadWrite(Fan_led[i],1);}}if(state[5]!=pre_state[5]){for(uint8i=0;i<4;i++)loadWrite(Fan[i],0);if(state[4]==1){if(speed==1){loadWrite(Fan[1],1);}elseif(speed==2){loadWrite(Fan[2],1);}elseif(speed==3){loadWrite(Fan[0],1);loadWrite(Fan[2],1);}elseif(speed==4){loadWrite(Fan[1],1);loadWrite(Fan[2],1);}elseif(speed==5){loadWrite(Fan[3],1);}}//pre_state[5] = state[5];}if(I2CFlag!=0){I2CFlag=0;if(0u!=(I2C_I2C_SSTAT_WR_CMPLT&I2C_I2CSlaveStatus())){i2cReceive();I2C_I2CSlaveClearWriteBuf();(void)I2C_I2CSlaveClearWriteStatus();}if(0u!=(I2C_I2C_SSTAT_RD_CMPLT&I2C_I2CSlaveStatus())){I2C_I2CSlaveClearReadBuf();(void)I2C_I2CSlaveClearReadStatus();}}for(uint8i=0;i<LightloadNumber+FanLoadNumber+1;i++){if(state[i]!=pre_state[i]){if((I2C_I2C_SSTAT_RD_BUSY&I2C_I2CSlaveStatus())==0){pre_state[i]=state[i];i2cReadBuffer[i]=state[i];}}}CySysWatchdogFeed(CY_SYS_WDT_COUNTER1);}}voidi2cReceive(void){for(uint8i=0;i<LightloadNumber;i++){state[i]=i2cWriteBuffer[i];if(state[i]==0){loadWrite(Load[i],0);if(whiteLed==1)loadWrite(white_led_load[i],1);}elseif(state[i]==1){loadWrite(Load[i],1);loadWrite(white_led_load[i],0);}}state[4]=i2cWriteBuffer[4];if(state[4]!=0)state_Fan[0]=0;elsestate_Fan[0]=1;loadWrite(Fan_BW[0],!state_Fan[0]);loadWrite(Fan_BW[1],(state_Fan[0]));state[5]=i2cWriteBuffer[5];speed=i2cWriteBuffer[5];for(uint8i=0;i<4;i++)loadWrite(Fan[i],0);if(state[4]==1){if(speed==1){loadWrite(Fan[1],1);}elseif(speed==2){loadWrite(Fan[2],1);}elseif(speed==3){loadWrite(Fan[0],1);loadWrite(Fan[2],1);}elseif(speed==4){loadWrite(Fan[1],1);loadWrite(Fan[2],1);}elseif(speed==5){loadWrite(Fan[3],1);}}}voidloadWrite(uint8loadpin,uint8state){switch(loadpin){case0:L0_Write(state);break;case1:L1_Write(state);break;case2:L2_Write(state);break;case3:L3_Write(state);break;case4:L4_Write(state);break;case5:L5_Write(state);break;case6:L6_Write(state);break;case7:L7_Write(state);break;case8:L8_Write(state);break;case9:L9_Write(state);break;case10:L10_Write(state);break;case11:L11_Write(state);break;case12:L12_Write(state);break;case13:L13_Write(state);break;case14:L14_Write(state);break;case15:L15_Write(state);break;case16:L16_Write(state);break;case17:L17_Write(state);break;case18:L18_Write(state);break;case19:L19_Write(state);break;case20:L20_Write(state);break;case21:L21_Write(state);break;case22:L22_Write(state);break;case23:L23_Write(state);break;case24:L24_Write(state);break;}}voidHandleError(void){/* Disable all interrupts. */__disable_irq();/* Infinite loop. */while(1u){}}/* [] END OF FILE */
