During development and testing of my ESPuno Pi Zero, I wanted to build various stackable and plug in break-outs for testing. The PESB Zero is the culmination of this.
PESB Zero is a new and simple STEM Maker and Developer SDK board that allows easy and safe experimenting and project building, wrapped in a compact mechanical Pi Zero form.
DesignThe Strip board design is in the Pi Zero form factor and great for:
- Educational and Classroom projects
- Home and Work projects
- R&D projects
- Bread-board projects
- Experimenters
- Developers
- Education, Schools and Universities
- STEM
- Learning
- Engineers and Designers
- R&D and Testing
- A super little gadget for the toolbox
- Super-easy to use

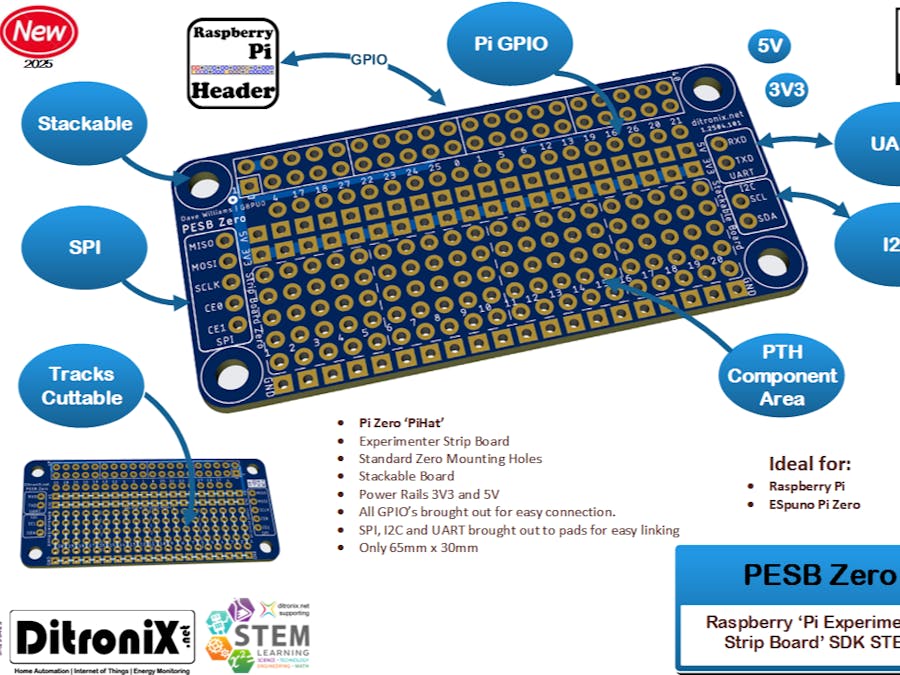

- Compact PESB Zero board is great for easy interfacing, and safely breaking out, the Pi GPIOs
- Designed to fit on any Raspberry Pi and be left in place as a PiHat
- Each GPIO port is broken out to pads on the board
- Power 5V and 3V3 is brought out to strips for easy use
- Twenty strips for interconnections
- The PESB Zero board is the same size as a Pi Zero (65 x 30mm)
- Stackable
2nd May 2025 - Now available on eBay
24th April 2025 - In Production
GitHubFurther details and updates maybe also be found on my GitHub
Purchase
PurchaseThis new board will be available end April on eBay.
Further InformationAdditional information, and other technical details on this project, maybe found in the related repository pages.
Repository Folders
- Code(Code examples for Arduino IDE and Platform IO)
- Datasheets and Information(Component Datasheets, Schematics, Board Layouts, Photos, Technical Documentation)
- Certification(Related Repository Project or Part, Certification Information)
Repository Tabs
- Wiki (Related Repository Wiki pages and Technical User Information)
- Discussions (Related Repository User Discussion Forum)
- Issues (Related Repository Technical Issues and Fixes)
