Detector Building - Temperature Monitor

If you are a part of Science Olympiad here is an example of a Temperature Monitor you can build for the competition.

BeginnerShowcase (no instructions)1,369

Things used in this project

Hardware components

Resistor 10k ohm

LED (generic)

Elegoo Thermistor

Arduino Nano R3

Graphic OLED, 128 x 64

Hand tools and fabrication machines

Tape, Electrical

Wire Stripper & Cutter, 18-10 AWG / 0.75-4mm² Capacity Wires

Wire Wrap Tool, Pencil

Story

Link to Detector Building SciOly page: https://scioly.org/wiki/index.php/Detector_Building

If you are in Science Olympiad here is a guide showing you how to create a Detector for the Detector Building Event.

This is basically a Temperature Monitor that has to perform certain functions at a highschool Science Competition.

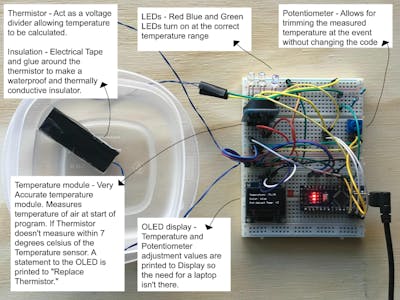

In this device, I use a voltage divider using a thermistor to determine the temperature of various liquids. The temperature can then be monitored on the OLED display and the corresponding LED lights up for different temperature ranges. In addition, a potentiometer is added to allow for calibration without changing the code.

Because this device has to measure temperatures of liquids I insulated the thermistor using electrical tape. This served as an effective barrier against the liquids presented at competitions and also didn't affect readings significantly.
