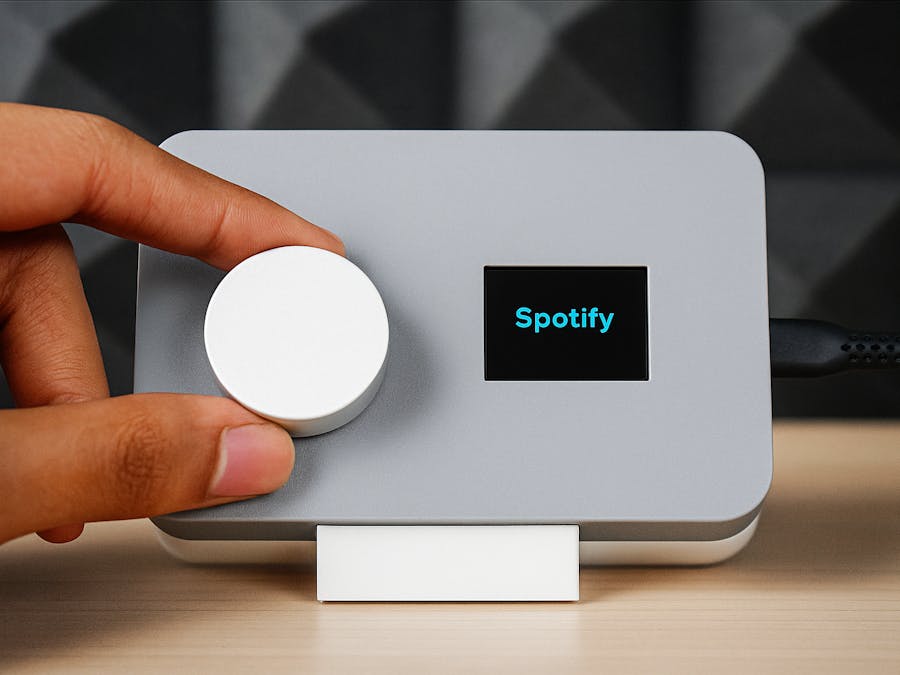

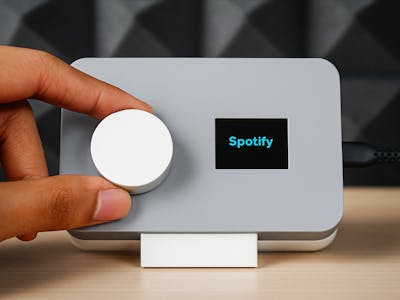

Simple Stream Deck: Streamo

Streamo is a minimalistic Stream deck using very less hardware and different from traditional stream decks. You don't need any additional software on your PC. Using bluetooth you can open any app or website you like.

Number of Apps and sites can be modified upon request.

For now, I have the following Apps and Sites:

• Spotify
• YouTube
• ChatGPT
• Discord
• Whatsapp
• Maker World
• Bambu Studio
• VS Code
• Steam
• Gmail

NOTE: This project is only for windows devices.

You can always DM me if you have any issues while assembling.

Supplies

Hardware parts:

ESP32 DOITDEVKIT V1 : https://a.co/d/7rwitrc

KY 040 Rotary Encoder: https://a.co/d/6ejCpry

OLED 12C SSD1306 0.96 inch: https://a.co/d/4cYxTEM

some wires

NOTE: Please buy exactly these parts, it can be from any site, for reference I have given the amazon links.

3D Printed parts:

Available on makerworld:

StreamoParts

Software: ESP flash download tool:

Code: streamo_ventoron zip file

Find them here:https://github.com/VikVentor/streamo_resources

NOTE: ESP Flash tool is originally from here: Flash Tool , but for your convenience I have put it in the github link along with my firmware.

List of parts:

• base.stl
• knob.stl
• oled_holder.stl
• top_cover.stl

Tools:

• Soldering Iron
• Hot Glue Gun.

Step 1: Connections

Refer this connection diagram and connect the wires on the bottom side of the OLED and Rotary Encoder.

Step 2: Uploading the Firmware/code & Testing

Refer to the below video to upload my code to your board:

https://youtu.be/UHlxNuUlFP0?si=_gNPbstDowRn3o5V&t=459

Once that's done connect your device with your windows PC bluetooth and test it out.

Step 3: Assembly: ESP32 and Rotary Encoder

Follow the images one by one.

make sure to hotlglue these parts in their places.

Step 4: OLED

Make sure the wires of the oled are soldered on the bottom side. I have soldered them by mistake in the video on the top but you have to solder them on the bottom so the part can fit.

Step 5: Fit the Top Cover

Fit the top cover and fit the Knob Finally

Step 6:

That's it connect it to your PC bluetooth and test it out!

Refer to the video on how to use all the features.
