Internet clock radio with touchscreen

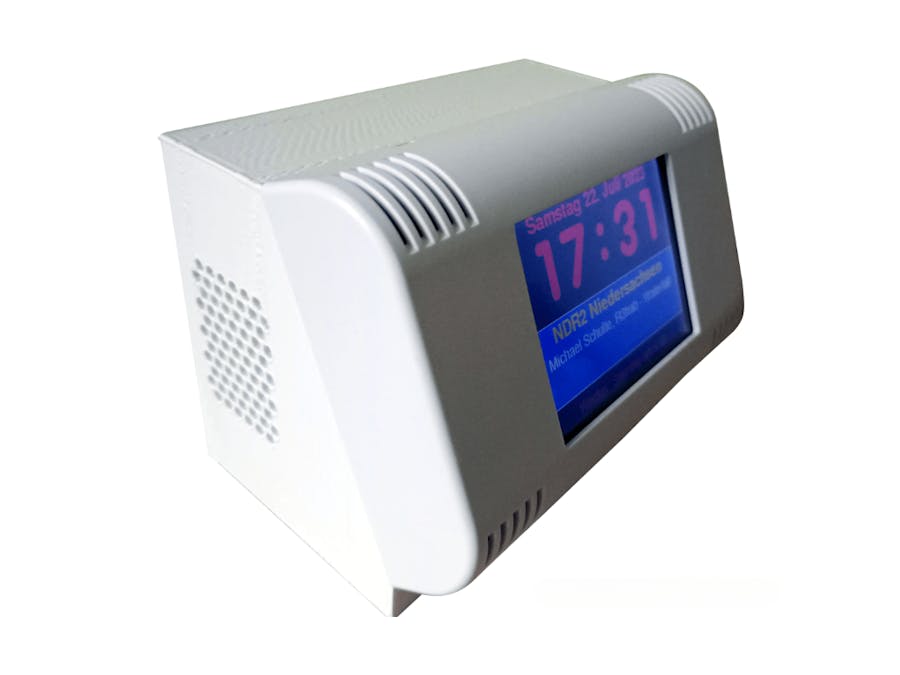

I am introducing a clock radio today. The special thing is that an AZ-Touch with a 2.4 inch or 2.8 inch touchscreen is used. Operation takes place exclusively via the touchscreen. There are two alarm times, which can be assigned to any day of the week. Of course there is also a sleep timer. The brightness can be adjusted so that the display does not disturb you at night. With an optional LDR, the display brightness can be automatically adjusted to the room brightness. Volume, sleep time, display brightness and station selection can be adjusted via the touchscreen. Wake-up times and the stream URLs of the radio stations are configured via a web interface.

Circuit

The circuit diagram only shows those parts that are not present in the AZ-Touch. The following images show how to expand the AZ-Touch circuit board accordingly. For the audio amplifiers, two 7-pin female connectors are attached to the perforated grid of the AZ-Touch to plug the audio amplifiers into. Also a 470 kΩ resistor. If you want to use the optional light sensor, you should solder a two-pin pin strip at 3.3 V and GND, as well as a single-pin pin at A0.

The second illustration shows how the wiring should be done on the back. The contours of the female connectors and the resistor are shown in yellow.

Assembly

To accommodate the speakers, the AZ-Touch has a back wall that transforms it into a desk housing. The back panel can be made with a 3D printer. It also has an opening for the DC socket. File for printing the back panel.

There is one for installing the optional LDR mounting plate, onto which the LDR module can be screwed. A 5mm hole is drilled at the top of the housing and then the mounting plate is glued to the back wall with double-sided adhesive tape so that the LDR lies in the hole.

software

The sketch has been broken down into several parts for clarity. A function provided By the Arduino IDE is used for this purpose. If there are other “.ino” or “.h” files in the same folder in addition to the main sketch, which has the same name as the folder, the compiler will append them to the main sketch in alphabetical order.Since the entire code has become very extensive, it is only available for download.

Sketch to download

The ZIP file contains the folder with all associated files. It must be unpacked into the project files folder (often Documents\Arduino\). The individual parts are briefly described below. A detailed description can be found as comments in the code.

radiowecker.ino: This is the main sketch. Global variables and data structures are defined.

• findNextAlarm() looks for the time and day of the week on which the alarm clock should be activated. The result is in the global variables alarmday for the day of the week and alarmtime saved for time in minutes. If no next appointment has been found, alarmday set to 8.
• set up() After initializing the serial port, the configuration data is read from the preferences. The setup functions of the individual program parts, with the exception of the web server and OTA, are then called. This is followed By establishing a connection to the local WLAN. If the connection was not successful, information about the configuration is shown on the Display. If the connection is successful, the real-time clock is initialized. Now the setup for web server and OTA can also be called up.
• loop() first checks whether there are OTA requests and then whether there are requests for the web server. It checks whether the connection to the WLAN still exists. If the connection is established, the audio stream and the two encoders are checked for events. The time display is updated once a minute and a check is made to see whether the alarm clock needs to be activated. If the alarm time and day of the week match, the radio stream is started and played at the set volume. If the connection was interrupted for more than 5 minutes, the ESP32 will be restarted.
• radiowecker.ino: This is the main sketch. Global variables and data structures are defined.findNextAlarm() looks for the time and day of the week on which the alarm clock should be activated. The result is in the global variables alarmday for the day of the week and alarmtime saved for time in minutes. If no next appointment has been found, alarmday set to 8.set up() After initializing the serial port, the configuration data is read from the preferences. The setup functions of the individual program parts, with the exception of the web server and OTA, are then called. This is followed By establishing a connection to the local WLAN. If the connection was not successful, information about the configuration is shown on the Display. If the connection is successful, the real-time clock is initialized. Now the setup for web server and OTA can also be called up.loop() first checks whether there are OTA requests and then whether there are requests for the web server. It checks whether the connection to the WLAN still exists. If the connection is established, the audio stream and the two encoders are checked for events. The time display is updated once a minute and a check is made to see whether the alarm clock needs to be activated. If the alarm time and day of the week match, the radio stream is started and played at the set volume. If the connection was interrupted for more than 5 minutes, the ESP32 will be restarted.
• 01_ziffern.ino: Defines 11 bitmaps with 50 x 70 pixels. These are the numbers 0 to 9 and the colon to represent the time.

audio.ino: In this part, all functions related to the audio streams are implemented.

• setup_audio() prepares the system. Buffer and stream output are initialized.
• audio_loop() checks the status of the audio stream.
• MDCallback(void *cbData, const char *type, bool isUnicode, const char *string)is called whenever new metadata is available in the received stream. Title type metadata appears on the display.
• stopPlaying() stops playing the stream and releases the associated resources.
• bool startUrl(String url) Starts playing a stream from a given URL. If the start is not successful, false is returned.
• setGain() sets the volume to the value of the global variable
• audio.ino: In this part, all functions related to the audio streams are implemented.setup_audio() prepares the system. Buffer and stream output are initialized.audio_loop() checks the status of the audio stream.MDCallback(void *cbData, const char *type, bool isUnicode, const char *string)is called whenever new metadata is available in the received stream. Title type metadata appears on the display.stopPlaying() stops playing the stream and releases the associated resources.bool startUrl(String url) Starts playing a stream from a given URL. If the start is not successful, false is returned.setGain() sets the volume to the value of the global variable
• fonts.h: Two fonts for the text display are defined here. One has a height of 9 pixels, the other 12 pixels. In addition to the 7-bit ASCII characters (codes 32 to 126), there are also the German umlauts Ä, Ö, Ü, ä, ö, ü, ß and the degree symbol (codes 127 to 134). There is a module for conversion tft_display.ino the function encodeUnicode(const char* src, char* dst), which converts text in UTF8 format so that it is displayed correctly on the display. For easier handling, two macros are defined: FNT9 for the 9-pixel font and FNT12 for the 12-pixel font.

index.h: Contains the HTML pages for the web server. With the command sequenceconst char MAIN_page[] PROGMEM = R"=====(any text………)=====";Any text can be built directly into the program memory as a constant. This is very useful for HTML pages as they can then be designed and tested outside of the IDE. These pages use jQuery, Ajax and JavaScript. The advantage of Ajax for interactive pages is that when changes occur, only the changed part of the page is updated. Three HTML constants are defined.

• OPTION_entry a template for entries in the selection list for the radio stations
• MAIN_page the main page with configuration and maintenance of the channel list
• CONFIG_page Page for entering the access data if the ESP32 is in access point mode for the initial configuration.
• index.h: Contains the HTML pages for the web server. With the command sequenceconst char MAIN_page[] PROGMEM = R"=====(any text………)=====";Any text can be built directly into the program memory as a constant. This is very useful for HTML pages as they can then be designed and tested outside of the IDE. These pages use jQuery, Ajax and JavaScript. The advantage of Ajax for interactive pages is that when changes occur, only the changed part of the page is updated. Three HTML constants are defined.OPTION_entry a template for entries in the selection list for the radio stationsMAIN_page the main page with configuration and maintenance of the channel listCONFIG_page Page for entering the access data if the ESP32 is in access point mode for the initial configuration.
• knoepfe.h: HHere a bitmap with 320 x 64 pixels is defined that represents the heads on the configuration page. Each of the five buttons has a size of 64 x 64 pixels.

ota.ino: The functions for updating the firmware via WLAN can be found here.

• setup_ota() the hostname and password are set. Callback functions are then registered.
• ota_onStart() is called when starting an OTA upload. The display is cleared and a corresponding message is shown in the first line
• ota_onEnd() is called after the upload has finished. A corresponding message is displayed.
• ota_onProgress(unsigned int progress, unsigned int total) is called up at regular intervals during the upload and provides information about the progress. The display shows the progress in percent and as a bar.
• ota_onError(ota_error_t error) is called when an error occurs. The error message is shown on the display.
• ota.ino: The functions for updating the firmware via WLAN can be found here.setup_ota() the hostname and password are set. Callback functions are then registered.ota_onStart() is called when starting an OTA upload. The display is cleared and a corresponding message is shown in the first lineota_onEnd() is called after the upload has finished. A corresponding message is displayed.ota_onProgress(unsigned int progress, unsigned int total) is called up at regular intervals during the upload and provides information about the progress. The display shows the progress in percent and as a bar.ota_onError(ota_error_t error) is called when an error occurs. The error message is shown on the display.

stations.ino: defines a program memory constant with the default channel list.

• setup_senderlist() fills the channel list in RAM with the channel list from the preferences. If there is no channel list there, the default channel list is used.
• restore(): Fills the channel list from the default channel list and saves it in the preferences. The function is helpful if the channel list is mixed up.
• saveList(): Save the station list from the RAM in the preferences.
• reorder(uint8_t oldpos, uint8_t newpos): Moves the sender entry at the position oldpos to the position newpos. Entries in between are moved accordingly.
• stations.ino: defines a program memory constant with the default channel list.setup_senderlist() fills the channel list in RAM with the channel list from the preferences. If there is no channel list there, the default channel list is used.restore(): Fills the channel list from the default channel list and saves it in the preferences. The function is helpful if the channel list is mixed up.saveList(): Save the station list from the RAM in the preferences.reorder(uint8_t oldpos, uint8_t newpos): Moves the sender entry at the position oldpos to the position newpos. Entries in between are moved accordingly.

tft_display.ino: contains all functions for controlling the display and touchscreen.

• onTouchClick(TS_Point p): Callback function that is always called when you briefly tap the touchscreen. The parameter p indicates the point on the display that was tapped. The coordinates are x and p.y. The zero point is in the top left corner.
• setGainValue(uint16_t value): The volume slider is updated to the value passed.
• setBrightness(uint16_t value): The brightness slider is updated to the value passed.
• setSnoozeTime(uint16_t value): The sleep time slider is updated to the value passed.
• setBGLight(uint8_t prct): The brightness of the backlighting of the display is set to the transferred value in percent. If the value is 0, the brightness is set depending on the light sensor.
• selectStation(uint16_t x): Depending on the x position, the next or previous entry in the channel list is displayed on the configuration page. Entries that are not activated are skipped. If x < 50, the previous entry is displayed. If x > 270, the next entry is displayed. Nothing happens for all other values ​​of x.
• toggleRadio(boolean off) : Depending on the value of the parameter off Playback of the MP3 stream is started or stopped. The display then switches to the clock display.
• toggleAlarm(): The alarm clock function is switched. From off to on and vice versa. The display then switches to the clock display.
• startSnooze(): The sleep time is started with the configured value. The display then switches to the clock display. If necessary, the radio will be turned on.
• changeStation(): With selectStation selected station is set as active station. The display then switches to the clock display.
• touch_loop(): Must be called from the main loop and is used to query the status of the touchscreen in order to detect touches.
• setup_display(): The display and touchscreen are initialized.
• textInBox(uint16_t x, uint16_t y, uint16_t w, uint16_t h, const char* text, uint8_t align = ALIGNLEFT, boolean big = false, uint16_t fc = ILI9341_WHITE, uint16_t bg = ILI9341_BLACK, uint8_t lines = 1 ): The passed text will be in a rectangle with the width w and the height H at the position x, y (top left corner). If the text is too long, it will be cut off at the last space between words. The alignment can be left, right or centered. Default is left. With the parameter big The font size can be selected with 12 pixels. Default is 9 pixels. Font color and background color can be chosen. Default is white on black. A multi-line display is possible. In this case, the line break always occurs at a space between words. Default is one line.
• updateTime(boolean redraw): The date and time display is updated. Is redraw true, the entire content will be reprinted, otherwise only the changes will be updated.
• displayDateTime(): Calls updateTime(false)
• showProgress(uint32_t prc): Displays a progress bar and the value in percent. Is called in connection with the software update.
• encodeUnicode(const char* src, char* dst): Walks in the text src the UTF8 characters ÄÖÜäöüß° so that they are shown correctly on the display. The result will be in dst The target string must exist in a sufficient size.
• showSlider(uint16_t y, float value, uint16_t vmax): A slider will be at the vertical position y The slider will change according to the value passed value positioned. The parameter vmax indicates the maximum value.
• showGain(): The volume setting bar in the configuration display is displayed.
• showBrightness(): The brightness setting bar in the configuration display is displayed.
• showSnoozeTime(): The bar for setting the sleep time in the configuration display is displayed.
• updateStation(): The name of the channel in the channel selection bar is updated.
• showStationList(): The channel selection bar in the configuration display is displayed.
• showCommand(): The configuration display is displayed at full brightness.
• showStation(): The name of the active station is displayed in the radio block.
• showTitle(): The metadata for the currently playing stream is displayed in the radio block.
• showRadio(): The radio block is displayed.
• showNextAlarm(): The date and time for the next alarm event are displayed on the bottom line.
• showDebugInfo(int16_t v1, int16_t v2, int16_t v3): This function is not used. However, it can be used to show the value of three integer numbers on the display in the bottom line.
• showClock(): The time is displayed. The display will be completely deleted beforehand. If the radio is switched on, the radio block is displayed. If the alarm clock function is active, the next alarm time is displayed.
• tft_display.ino: contains all functions for controlling the display and touchscreen.onTouchClick(TS_Point p): Callback function that is always called when you briefly tap the touchscreen. The parameter p indicates the point on the display that was tapped. The coordinates are x and p.y. The zero point is in the top left corner.setGainValue(uint16_t value): The volume slider is updated to the value passed.setBrightness(uint16_t value): The brightness slider is updated to the value passed.setSnoozeTime(uint16_t value): The sleep time slider is updated to the value passed.setBGLight(uint8_t prct): The brightness of the backlighting of the display is set to the transferred value in percent. If the value is 0, the brightness is set depending on the light sensor.selectStation(uint16_t x): Depending on the x position, the next or previous entry in the channel list is displayed on the configuration page. Entries that are not activated are skipped. If x < 50, the previous entry is displayed. If x > 270, the next entry is displayed. Nothing happens for all other values ​​of x.toggleRadio(boolean off) : Depending on the value of the parameter off Playback of the MP3 stream is started or stopped. The display then switches to the clock display.toggleAlarm(): The alarm clock function is switched. From off to on and vice versa. The display then switches to the clock display.startSnooze(): The sleep time is started with the configured value. The display then switches to the clock display. If necessary, the radio will be turned on.changeStation(): With selectStation selected station is set as active station. The display then switches to the clock display.touch_loop(): Must be called from the main loop and is used to query the status of the touchscreen in order to detect touches.setup_display(): The display and touchscreen are initialized.textInBox(uint16_t x, uint16_t y, uint16_t w, uint16_t h, const char* text, uint8_t align = ALIGNLEFT, boolean big = false, uint16_t fc = ILI9341_WHITE, uint16_t bg = ILI9341_BLACK, uint8_t lines = 1 ): The passed text will be in a rectangle with the width w and the height H at the position x, y (top left corner). If the text is too long, it will be cut off at the last space between words. The alignment can be left, right or centered. Default is left. With the parameter big The font size can be selected with 12 pixels. Default is 9 pixels. Font color and background color can be chosen. Default is white on black. A multi-line display is possible. In this case, the line break always occurs at a space between words. Default is one line.updateTime(boolean redraw): The date and time display is updated. Is redraw true, the entire content will be reprinted, otherwise only the changes will be updated.displayDateTime(): Calls updateTime(false)showProgress(uint32_t prc): Displays a progress bar and the value in percent. Is called in connection with the software update.encodeUnicode(const char* src, char* dst): Walks in the text src the UTF8 characters ÄÖÜäöüß° so that they are shown correctly on the display. The result will be in dst The target string must exist in a sufficient size.showSlider(uint16_t y, float value, uint16_t vmax): A slider will be at the vertical position y The slider will change according to the value passed value positioned. The parameter vmax indicates the maximum value.showGain(): The volume setting bar in the configuration display is displayed.showBrightness(): The brightness setting bar in the configuration display is displayed.showSnoozeTime(): The bar for setting the sleep time in the configuration display is displayed.updateStation(): The name of the channel in the channel selection bar is updated.showStationList(): The channel selection bar in the configuration display is displayed.showCommand(): The configuration display is displayed at full brightness.showStation(): The name of the active station is displayed in the radio block.showTitle(): The metadata for the currently playing stream is displayed in the radio block.showRadio(): The radio block is displayed.showNextAlarm(): The date and time for the next alarm event are displayed on the bottom line.showDebugInfo(int16_t v1, int16_t v2, int16_t v3): This function is not used. However, it can be used to show the value of three integer numbers on the display in the bottom line.showClock(): The time is displayed. The display will be completely deleted beforehand. If the radio is switched on, the radio block is displayed. If the alarm clock function is active, the next alarm time is displayed.

webserver.ino: Includes the setup and functions to respond to http requests.

• setup_webserver(): The individual functions for handling http requests are registered and the server is started on port 80.
• webserver_loop() It is checked whether there are new requests.
• handleRoot() is processing a request for the main page. If there is a connection to the local WLAN, the main page is sent to the client. If the ESP32 is in access point mode for the basic configuration, the configuration page is transferred. In this case, any existing parameters must also be processed in order to save the access data or trigger a restart.
• sendStations() responds to the Ajax command with the URL /cmd/stations. Sends the list of stations as an HTML option list. This list is then incorporated into the dropdown element in the client via Javascript.
• setAccessData() responds to the Ajax command with the URL /cmd/setaccess. The SSID, PKEY and NTP server configuration data are saved in the preferences.
• getAccessData() responds to the Ajax command with the URL /cmd/getaccess. The SSID, PKEY and NTP server configuration data are sent as a response. The end of the line is used as a separator.
• getAlarms() responds to the Ajax command with the URL /cmd/getalarms. The two alarm times and the respective alarm days are sent as a string. The end of the line is used as a separator.
• uint16_t stringToMinutes(String val): Converts a string in hh:mm format to the number of minutes.
• setAlarms() responds to the Ajax command with the URL /cmd/setalarms. The alarm times are expected as arguments al0 and al8 in the format hh:mm. The alarm days are expected in the arguments al1 to al7 and al9 to al15. They are converted into an 8-bit binary number.
• getStationData() responds to the Ajax command with the URL /cmd/getstation. The ID of the desired station is expected as an argument. The name, URL and enable flag of the specified station are sent as a response. The end of the line is used as a separator.
• setStationData() responds to the Ajax command with the URL /cmd/setstation. The ID of the desired station is expected as an argument. If the ID is valid, the data passed as an argument for the name, the URL and the enable flag are stored in the channel list.
• testStation() responds to the Ajax command with the URL /cmd/teststation. The URL to be tested is expected as an argument. Attempting to start playing the specified URL. If the attempt is not successful, the system switches back to the current station and responds with “ERROR”.
• endTest() responds to the Ajax command with the URL /cmd/endtest. The test ends By starting playback of the current station.
• restoreStations(): The station list is filled with the default stations and saved in the preferences.
• restart() responds to the Ajax command with the URL /cmd/restart. The ESP32 will restart.
• webserver.ino: Includes the setup and functions to respond to http requests.setup_webserver(): The individual functions for handling http requests are registered and the server is started on port 80.webserver_loop() It is checked whether there are new requests.handleRoot() is processing a request for the main page. If there is a connection to the local WLAN, the main page is sent to the client. If the ESP32 is in access point mode for the basic configuration, the configuration page is transferred. In this case, any existing parameters must also be processed in order to save the access data or trigger a restart.sendStations() responds to the Ajax command with the URL /cmd/stations. Sends the list of stations as an HTML option list. This list is then incorporated into the dropdown element in the client via Javascript.setAccessData() responds to the Ajax command with the URL /cmd/setaccess. The SSID, PKEY and NTP server configuration data are saved in the preferences.getAccessData() responds to the Ajax command with the URL /cmd/getaccess. The SSID, PKEY and NTP server configuration data are sent as a response. The end of the line is used as a separator.getAlarms() responds to the Ajax command with the URL /cmd/getalarms. The two alarm times and the respective alarm days are sent as a string. The end of the line is used as a separator.uint16_t stringToMinutes(String val): Converts a string in hh:mm format to the number of minutes.setAlarms() responds to the Ajax command with the URL /cmd/setalarms. The alarm times are expected as arguments al0 and al8 in the format hh:mm. The alarm days are expected in the arguments al1 to al7 and al9 to al15. They are converted into an 8-bit binary number.getStationData() responds to the Ajax command with the URL /cmd/getstation. The ID of the desired station is expected as an argument. The name, URL and enable flag of the specified station are sent as a response. The end of the line is used as a separator.setStationData() responds to the Ajax command with the URL /cmd/setstation. The ID of the desired station is expected as an argument. If the ID is valid, the data passed as an argument for the name, the URL and the enable flag are stored in the channel list.testStation() responds to the Ajax command with the URL /cmd/teststation. The URL to be tested is expected as an argument. Attempting to start playing the specified URL. If the attempt is not successful, the system switches back to the current station and responds with “ERROR”.endTest() responds to the Ajax command with the URL /cmd/endtest. The test ends By starting playback of the current station.restoreStations(): The station list is filled with the default stations and saved in the preferences.restart() responds to the Ajax command with the URL /cmd/restart. The ESP32 will restart.

wlan.ino: Includes the ability to connect to local Wi-Fi or provide an access point when connection is not possible.

• boolean initWiFi(String ssid, String pkey) tries to connect to the local WLAN with the specified access data. If no SSID was specified or the connection attempt is unsuccessful, an access point is started. The configuration page can then be accessed via this access point from a browser at the address 192.168.4.1.
• wlan.ino: Includes the ability to connect to local Wi-Fi or provide an access point when connection is not possible.boolean initWiFi(String ssid, String pkey) tries to connect to the local WLAN with the specified access data. If no SSID was specified or the connection attempt is unsuccessful, an access point is started. The configuration page can then be accessed via this access point from a browser at the address 192.168.4.1.

In order for the sketch to be compiled, the Arduino IDE must be prepared accordingly. By default, the Arduino IDE supports a large number of boards with different microcontrollers, but not the ESP32. In order to create and upload programs for these controllers, a support software package must be installed.

First you need to tell the Arduino IDE where to find the additional data it needs. To do this, open the menu file the point Presets. In the preferences window there is an input field called “Additional board administrator URLs”. If you click on the icon to the right of the input field, a window opens in which you can enter the URL https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json can enter.

Now select the board management in the Arduino IDE under Tool → Board.

A window opens listing all available packages. To narrow down the list, enter “esp32” in the search field. Then you only get one entry in the list. Install the esp32 package. If the package was already installed, please check whether you have version 2.0.9.

For the display you need two libraries that can be installed via the Arduino library management. This is the library “Adafruit_ILI9341” in version 1.5.10

and the library “Adafruit_GFX” in version 1.10.14.

Two additional libraries are required for the touchscreen. This is “XPT2046_Touchscreen” in version 1.4.0

and “Touchevent” in version 1.3.0

The core of this project is the library “ESP8266Audio” By Earle F. Philhower in version 1.9.7.

This library makes it possible to read, decode and play back various digital audio streams via different output channels. The program memory, the internal RAM, a file system, an SD card, an HTTP stream, or an ICY stream can be used as input. The ICY stream is typically used By Internet radios.WAV, MOD, MIDI, FLAC, AAC and MP3 files can be decoded. MP3 is required for the web radio. Finally, the output can be in memory, files or I2S.

When all libraries are installed, the sketch can be compiled and uploaded to the hardware.Danger! Since the sketch consists of numerous parts, it can take a long time to compile, especially the first time. For the ESP32 package and the ESP8266audio library, it is important to use the specified versions because the audio library was programmed very closely to the hardware.

If you want to save yourself the hassle of compiling, you can download the compiled firmware here and upload it directly to the ESP32.

Binary file for download

To upload the binary file you need a utility program that can be downloaded free of charge from Espressif.Flash Download Tools

You need to download and unzip the ZIP file. Then you can start the included program flash_download_tool_3.9.5.exe. A window for selecting the controller appears.

📷Here you select ESP32 as the chip type and Develop as the work mode. The program continues with OK. The tool's working window appears.

📷Connect the ESP32 to the computer using a USB cable and select the serial port used at the bottom right. In the top line, set the path to the downloaded BIN file for the clock radio. 0x10000 must be entered as the destination address. Select all other settings as shown in the figure. Now you can click on “START”. The upload begins. When everything is finished, the green “IDLE” area changes to blue with the text “FINISH”. The ESP32 now has the firmware for the radio alarm clock and can be put into operation. The compiled BIN file only works with the current version of AZ-Touch.

Installation

When you first start up, there are no preferences yet. Therefore, a connection to the local WiFi cannot be established. An access point with the SSID “radioweckerconf” without a password is started. A corresponding message appears on the display.

📷A connection to this access point can now be established using, for example, a smartphone. The configuration page can then be accessed in a browser using the address 192.168.4.1.

After rebooting, you should be able to connect to the local WiFi successfully. The current time and date should be shown on the display.

If you tap anywhere on the display, the operating page appears.

There are three sliders for volume, brightness and sleep time. The settings are changed By tapping on the desired position. A special feature applies to the brightness. If set to 0, if the optional LDR is present, the brightness is adjusted to the ambient brightness.

In the fourth line you can see the current radio station. Using the two buttons on the left and right, stations can be selected from the station list.

At the bottom is a row of buttons.

📷 The radio turns on or off. The display returns to the time display. If the radio was switched on, the radio block with the station name and the metadata (e.g. name of the song currently being played) appears under the time display.

📷 The sleep time starts. If the radio is not turned on, it will turn on. The display returns to the time display. When the set sleep time has passed, the radio switches off automatically.

📷 The alarm clock function is switched on or off. The display returns to the time display. If the alarm clock has been switched on, the day of the week and the time when the alarm clock will next be triggered appear at the bottom of the display. If the displayed day of the week and time are correct, the radio will automatically turn on.

📷 The selected station is adopted as the active station. If the radio is currently switched on, the stream automatically switches to the new station. The display returns to the time display.

📷 The display returns to the time display.

If there is no activity for 10 seconds, the display automatically returns to the time display. All settings changes are saved in preferences. The operating page is always displayed at full brightness.

Configuration and editing of alarm times and the station list

The configuration page should be accessible via the URL http://radiowecker/.

In the upper part the access data and the NTP server can be changed. The changes will only take effect once the “Save” button has been clicked.A restart can be triggered using the “Restart” button.Next are the alarm times. Two alarm times can be set. For each of the alarm times, the days of the week on which the alarm times are to be applied can be selected.The drop-down list below contains all channels in the channel list. Selectable channels have a black dot in front of the name. In the form below, the data for the selected station is displayed and can be changed. If the “Use” box is not checked, the station cannot be selected in the device. Since some URLs do not work, a new URL should be tested using the “Test” button. Clicking on this button starts playback of the URL on the device. Danger! The radio must be switched on on the device for testing. If playback does not work, it will immediately switch back to the current station and a message will be displayed. If playback is possible, a box with a button will appear. Clicking this button closes the box and ends the test. The current station is played again. The position of the selected station within the station list is displayed in the “Position” input field. By changing this value, the station can be moved to the specified position. Using the “Change” button, the changes for the selected station can be made permanent.

Firmware update via OTA

To update the program, it is not necessary to open the device and connect a USB connection. In the Arduino IDE you should see the following entry under the ports.

You can now upload a sketch via this port. For protection, the password “wakeup update” must be entered when prompted. Since the serial interface cannot be used, messages are shown on the display.

Have fun replicating it.
