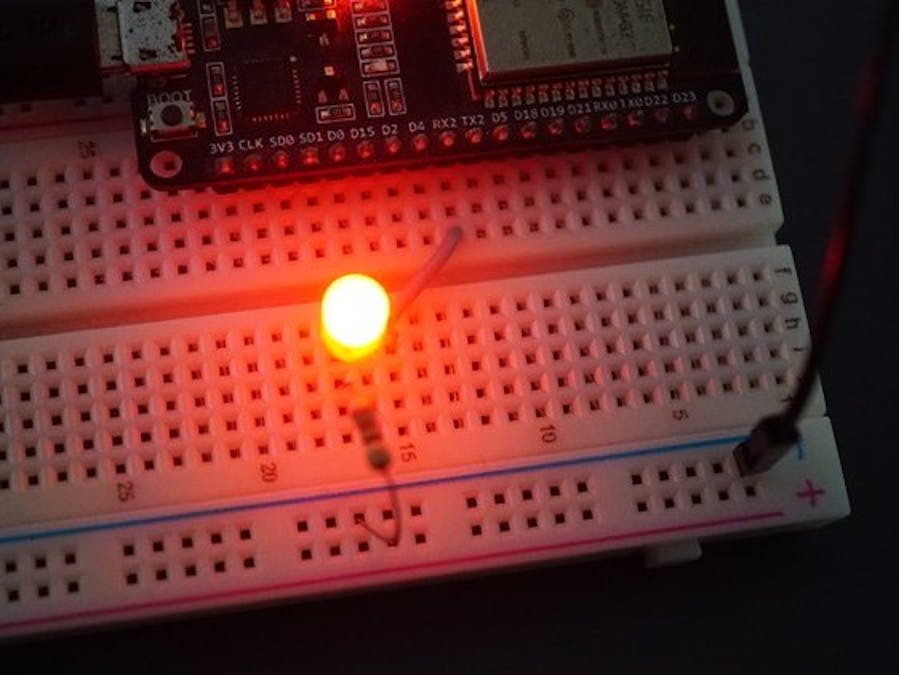

Brightness Control System Using ESP32

A system that uses Potentiometer and a simple LED to simulate variation of brightness level. All done using ESP-IDF framework.

IntermediateShowcase (no instructions)2 hours22
Brightness Control System Using ESP32

Things used in this project

Hardware components

ESP32
Espressif ESP32
×1
LED (generic)
LED (generic)
×1
Rotary potentiometer (generic)
Rotary potentiometer (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

ESP-IDF
Espressif ESP-IDF

Story

Read more

Schematics

Circuit Layout

LED pin connected to PIN 4 and potentiometer to PIN 36 (VP)

Code

An ESP-IDF code for simulating the connection

Download the code, then you can simulate to WOKWI or in case of available Hardware components mentioned so far, give it a try. Good luck..
