Interfacing HLK LD2420 24GHz Radar Sensor with Arduino

Introduction

The HLK LD2420 is a sophisticated 24GHz radar sensor that brings professional-grade human presence detection to your Arduino projects. Unlike PIR sensors that only detect motion, the LD2420 can detect stationary human presence, making it perfect for smart home automation, security systems, and IoT applications.

What Makes LD2420 Special?

• True Human Presence Detection: Detects both moving and stationary humans
• No Blind Zones: Works from 0.2m to 8m range
• High Accuracy: ±35cm precision within detection range
• Wide Coverage: Wide detection angle
• Real-time Data: 10Hz refresh rate for responsive applications

Software Installation

Step 1: Download the Library

Option A: Manual Installation

• Download from GitHub
• Extract the ZIP file
• Copy to Arduino/libraries folder
• Restart Arduino IDE

Option B: Git Clone

• Download from GitHub
• Open Arduino IDE
• Go to Sketch → Include Library → Add.ZIP Library...
• Select the downloaded ZIP file

Step 2: Verify Installation

Create a new sketch and add:

#include "LD2420.h"

If no errors appear, the library is installed correctly.

Basic Interface Tutorial

Tutorial 1: Simple Motion Detection

For the simplest possible radar detection that only shows distance changes, use the provided SimpleMotionDetection example:

#include <SoftwareSerial.h>
#include "LD2420.h"

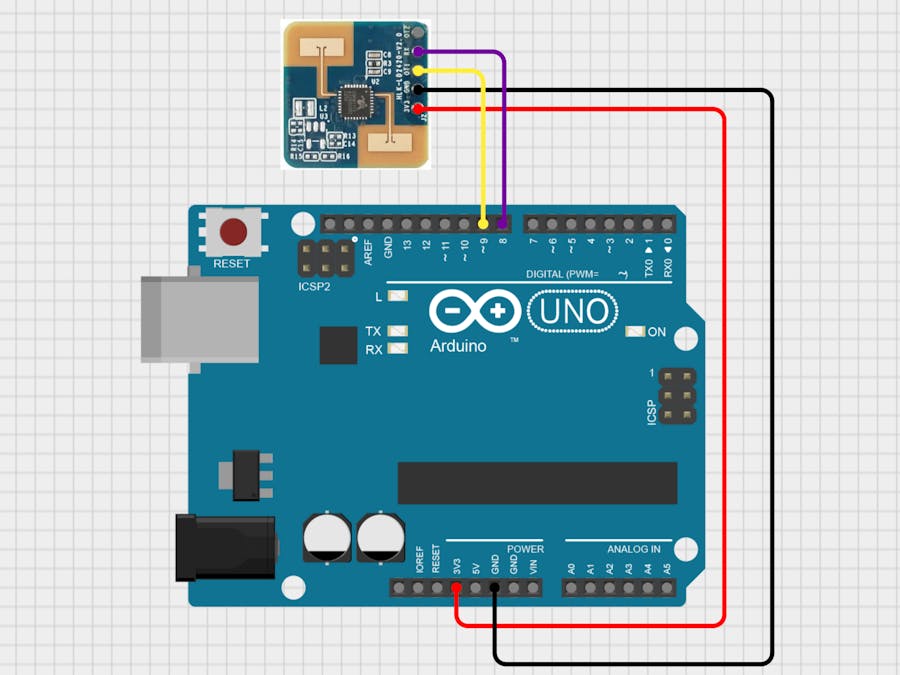

// Define RX and TX pins for SoftwareSerial
#define RX_PIN 8
#define TX_PIN 9

// Create instances
SoftwareSerial sensorSerial(RX_PIN, TX_PIN);
LD2420 radar;  // Use default constructor

// Track last distance to detect changes
int lastDistance = -1;
bool wasDetecting = false;

void setup() {
  // Initialize Serial Monitor
  Serial.begin(115200);
  while (!Serial) {
    delay(10);
  }

  Serial.println("=== Simple Motion Detection ===");

  // Initialize SoftwareSerial for LD2420
  sensorSerial.begin(115200);

  // Initialize the radar sensor
  if (radar.begin(sensorSerial)) {
    Serial.println("Radar ready. Waiting for motion...");
  } else {
    Serial.println("Failed to initialize radar!");
    while (1) delay(1000);
  }

  // Configure sensor
  radar.setDistanceRange(0, 600);
  radar.setUpdateInterval(50); // 20Hz update rate
}

void loop() {
  radar.update();  // Update radar readings

  // Check if motion is detected
  bool isDetecting = radar.isDetecting();
  int currentDistance = radar.getDistance();

  if (isDetecting) {
    // Only print when distance changes
    if (currentDistance != lastDistance) {
      Serial.print("Motion detected at ");
      Serial.print(currentDistance);
      Serial.println("cm");

      lastDistance = currentDistance;
      wasDetecting = true;
    }
  } else {
    // Motion stopped - reset for next detection
    if (wasDetecting) {
      lastDistance = -1;
      wasDetecting = false;
    }
  }

  delay(10);
}

This Tutorial demonstrates:

• ✅ Basic sensor initialization
• ✅ Simple motion detection with distance output
• ✅ No repeated messages for the same distance
• ✅ Clean, minimal code structure

Expected Output:

Tutorial 2: Advanced Features and Callbacks

For comprehensive radar functionality with callbacks, zones, and data filtering, use the AdvancedUsage example:

#include <SoftwareSerial.h>
#include "LD2420.h"

// Define RX and TX pins for SoftwareSerial
#define RX_PIN 8
#define TX_PIN 9

// Create instances
SoftwareSerial sensorSerial(RX_PIN, TX_PIN);
LD2420 radar;  // Use default constructor

// Detection zones
struct DetectionZone {
  int minDistance;
  int maxDistance;
  String name;
  bool isActive;
  unsigned long lastDetection;
};

DetectionZone zones[] = {
  {0, 50, "Close Range", false, 0},
  {51, 150, "Medium Range", false, 0},
  {151, 300, "Far Range", false, 0}
};

const int NUM_ZONES = sizeof(zones) / sizeof(zones[0]);

// Data filtering
const int FILTER_SIZE = 5;
int distanceFilter[FILTER_SIZE];
int filterIndex = 0;
bool filterFull = false;

// Configuration
unsigned long statusInterval = 5000; // Print status every 5 seconds
unsigned long lastStatusPrint = 0;

void setup() {
  // Initialize Serial Monitor
  Serial.begin(115200);
  while (!Serial) {
    delay(10);
  }

  Serial.println("=== LD2420 Advanced Example ===");

  // Initialize SoftwareSerial for LD2420
  sensorSerial.begin(115200);
  Serial.println("SoftwareSerial initialized on RX:8, TX:9");

  // Initialize the radar sensor
  if (radar.begin(sensorSerial)) {
    Serial.println("✓ LD2420 initialized successfully!");
  } else {
    Serial.println("❌ Failed to initialize LD2420!");
    while (1) delay(1000);
  }

  // Configure sensor
  radar.setDistanceRange(0, 400);
  radar.setUpdateInterval(50);

  // Set up callbacks
  radar.onDetection(onDetectionEvent);
  radar.onStateChange(onStateChangeEvent);
  radar.onDataUpdate(onDataUpdateEvent);

  // Initialize filter
  initializeFilter();

  Serial.println("Setup complete. Monitoring detection zones...");
  printZoneInfo();
}

void loop() {
  radar.update();  // Update radar readings

  // Check zone status
  updateZones();

  // Print periodic status
  if (millis() - lastStatusPrint > statusInterval) {
    printDetailedStatus();
    lastStatusPrint = millis();
  }

  delay(10);
}

// Initialize the distance filter
void initializeFilter() {
  for (int i = 0; i < FILTER_SIZE; i++) {
    distanceFilter[i] = 0;
  }
  filterIndex = 0;
  filterFull = false;
}

// Add a value to the filter and return the filtered result
int addToFilter(int newValue) {
  distanceFilter[filterIndex] = newValue;
  filterIndex = (filterIndex + 1) % FILTER_SIZE;

  if (!filterFull && filterIndex == 0) {
    filterFull = true;
  }

  // Calculate average
  int sum = 0;
  int count = filterFull ? FILTER_SIZE : filterIndex;

  for (int i = 0; i < count; i++) {
    sum += distanceFilter[i];
  }

  return count > 0 ? sum / count : 0;
}

// Update detection zones
void updateZones() {
  bool isDetecting = radar.isDetecting();
  int currentDistance = radar.getDistance();

  for (int i = 0; i < NUM_ZONES; i++) {
    bool wasActive = zones[i].isActive;

    // Check if object is in this zone
    if (isDetecting &&
        currentDistance >= zones[i].minDistance &&
        currentDistance <= zones[i].maxDistance) {

      zones[i].isActive = true;
      zones[i].lastDetection = millis();

      // Print zone activation
      if (!wasActive) {
        Serial.print("🎯 Zone activated: ");
        Serial.print(zones[i].name);
        Serial.print(" (");
        Serial.print(currentDistance);
        Serial.println(" cm)");
      }
    } else {
      zones[i].isActive = false;
    }
  }
}

// Callback functions
void onDetectionEvent(int distance) {
  int filteredDistance = addToFilter(distance);

  Serial.print("📡 Raw: ");
  Serial.print(distance);
  Serial.print(" cm, Filtered: ");
  Serial.print(filteredDistance);
  Serial.println(" cm");
}

void onStateChangeEvent(LD2420_DetectionState oldState, LD2420_DetectionState newState) {
  Serial.print("🔄 State change: ");
  Serial.print(stateToString(oldState));
  Serial.print(" → ");
  Serial.println(stateToString(newState));

  // Reset all zones when no detection
  if (newState == LD2420_NO_DETECTION) {
    for (int i = 0; i < NUM_ZONES; i++) {
      zones[i].isActive = false;
    }
    Serial.println("🔄 All zones cleared");
  }
}

void onDataUpdateEvent(LD2420_Data data) {
  // This callback gets called for every data update
  // Use it for continuous monitoring or logging

  static unsigned long updateCounter = 0;
  updateCounter++;

  // Print data rate every 100 updates
  if (updateCounter % 100 == 0) {
    static unsigned long lastRateCheck = 0;
    unsigned long now = millis();

    if (lastRateCheck > 0) {
      float rate = 100000.0 / (now - lastRateCheck); // Updates per second
      Serial.print("📊 Data rate: ");
      Serial.print(rate, 1);
      Serial.println(" Hz");
    }
    lastRateCheck = now;
  }
}

// Convert detection state to string
String stateToString(LD2420_DetectionState state) {
  switch (state) {
    case LD2420_NO_DETECTION: return "No Detection";
    case LD2420_DETECTION_ACTIVE: return "Active Detection";
    case LD2420_DETECTION_LOST: return "Detection Lost";
    default: return "Unknown";
  }
}

// Print zone information
void printZoneInfo() {
  Serial.println("\\n=== Detection Zones ===");
  for (int i = 0; i < NUM_ZONES; i++) {
    Serial.print(zones[i].name);
    Serial.print(": ");
    Serial.print(zones[i].minDistance);
    Serial.print("-");
    Serial.print(zones[i].maxDistance);
    Serial.println(" cm");
  }
  Serial.println("=====================\\n");
}

// Print detailed status
void printDetailedStatus() {
  Serial.println("\\n--- Detailed Status ---");

  LD2420_Data currentData = radar.getCurrentData();

  Serial.print("Target detected: ");
  Serial.println(radar.isDetecting() ? "Yes" : "No");

  Serial.print("Distance: ");
  Serial.print(radar.getDistance());
  Serial.println(" cm");

  Serial.print("State: ");
  Serial.println(stateToString(radar.getState()));

  Serial.print("Data valid: ");
  Serial.println(radar.isDataValid() ? "Yes" : "No");

  Serial.print("Last update: ");
  Serial.print(radar.getLastUpdateTime());
  Serial.println(" ms ago");

  Serial.println("\\nZone Status:");
  for (int i = 0; i < NUM_ZONES; i++) {
    Serial.print("  ");
    Serial.print(zones[i].name);
    Serial.print(": ");

    if (zones[i].isActive) {
      Serial.print("ACTIVE (");
      Serial.print(millis() - zones[i].lastDetection);
      Serial.println(" ms ago)");
    } else {
      Serial.println("Inactive");
    }
  }

  Serial.println("---------------------\\n");
}

This Tutorial demonstrates:

• ✅ Multiple detection zones (Close, Medium, Far range)
• ✅ Real-time callbacks for detection events
• ✅ Data filtering for noise reduction
• ✅ State change monitoring
• ✅ Detailed status reporting
• ✅ Performance metrics

Expected Output:

Tutorial 3: Distance Range Configuration

Configure the sensor to detect objects only within specific ranges:

#include <SoftwareSerial.h>
#include "LD2420.h"

SoftwareSerial radarSerial(8, 9);
LD2420 radar;

void setup() {
  Serial.begin(115200);
  radarSerial.begin(115200);

  if (radar.begin(radarSerial)) {
    // Set detection range: 50cm to 100cm
    radar.setDistanceRange(50, 100);

    // Set faster update rate
    radar.setUpdateInterval(50); // Check every 50ms

    radar.onDetection(onDetection);

    Serial.println("📏 Detection range: 50cm - 300cm");
    Serial.println("⚡ Update rate: 20Hz");
  }
}

void loop() {
  radar.update();
  delay(10);
}

void onDetection(int distance) {
  // This will only trigger for distances between 50-300cm
  Serial.print("✅ Valid detection: ");
  Serial.print(distance);
  Serial.println(" cm");
}

Expected Output:

Conclusion

This comprehensive tutorial has covered everything you need to know about interfacing the HLK LD2420 radar sensor with Arduino. From basic detection to advanced smart home automation, the LD2420 offers unprecedented capabilities for human presence detection.

Support and Community:

• GitHub repository: https://github.com/cyrixninja/LD2420
• Submit issues and feature requests
• Contribute to the library development

Happy building! 🚀
