from m5stack import *
from m5ui import *
from uiflow import *
import imu
import random
import collections # Needed for Breadth FS
import time
# Initialize display and IMU
setScreenColor(0x000000)
imu0 = imu.IMU()
# Maze settings
grid_size = 40 # Fit 320x240 screen
maze_width = 8
maze_height = 6
maze = [[1] * maze_width for _ in range(maze_height)] # Start with walls
# Ball properties
ball_radius = 8
ball_speed = 0.5 # Base sensitivity
ball_velocity_x = 0 # Initial velocity on X-axis
ball_velocity_y = 0 # Initial velocity on Y-axis
ball_max_speed = 5 # Limit max speed to prevent overshooting
scaling_factor = 2 # Scaling factor for responsiveness (higher = more responsive)
friction = 0.90 # Inertia / friction factor to slow the ball over time
scale_x = 2.0 # Scaling factor for X-axis tilt
scale_y = 2.0 # Scaling factor for Y-axis tilt
# Fixed screen dimensions for M5Stack Core2
SCREEN_WIDTH = 320
SCREEN_HEIGHT = 240
# Start and end positions
start_x, start_y = 0, 0
end_x, end_y = 0, 0
ball_x, ball_y = 0, 0
# Maze generation using DFS (Always Solvable)
def generate_maze():
global maze, start_x, start_y, end_x, end_y, ball_x, ball_y
# Initialize the maze with walls
maze = [[1] * maze_width for _ in range(maze_height)]
# Choose a random starting point
start_x, start_y = random.randint(0, maze_width - 1), random.randint(0, maze_height - 1)
# DFS-based maze generation
def carve_maze(x, y):
maze[y][x] = 0 # Mark as path
# Randomize movement direction manually (since shuffle is unavailable)
directions = [(0, 1), (0, -1), (1, 0), (-1, 0)]
for i in range(len(directions) - 1, 0, -1): # Fisher-Yates shuffle
j = random.randint(0, i) # Randomly shuffle directions
directions[i], directions[j] = directions[j], directions[i]
for dx, dy in directions:
nx, ny = x + dx * 2, y + dy * 2
if 0 <= nx < maze_width and 0 <= ny < maze_height and maze[ny][nx] == 1:
maze[y + dy][x + dx] = 0 # Open wall
carve_maze(nx, ny)
carve_maze(start_x, start_y)
# Find the farthest point using BFS
def find_farthest_point(sx, sy):
visited = [[False] * maze_width for _ in range(maze_height)]
queue = collections.deque([(sx, sy, 0)]) # (x, y, distance)
visited[sy][sx] = True
farthest_x, farthest_y, max_dist = sx, sy, 0
while queue:
x, y, dist = queue.popleft()
if dist > max_dist:
max_dist = dist
farthest_x, farthest_y = x, y
for dx, dy in [(0, 1), (0, -1), (1, 0), (-1, 0)]:
nx, ny = x + dx, y + dy
if 0 <= nx < maze_width and 0 <= ny < maze_height and not visited[ny][nx] and maze[ny][nx] == 0:
visited[ny][nx] = True
queue.append((nx, ny, dist + 1))
return farthest_x, farthest_y
# Set the farthest valid end point
end_x, end_y = find_farthest_point(start_x, start_y)
# Set ball to start position
ball_x, ball_y = start_x * grid_size + grid_size // 2, start_y * grid_size + grid_size // 2
generate_maze()
# Function to draw the maze

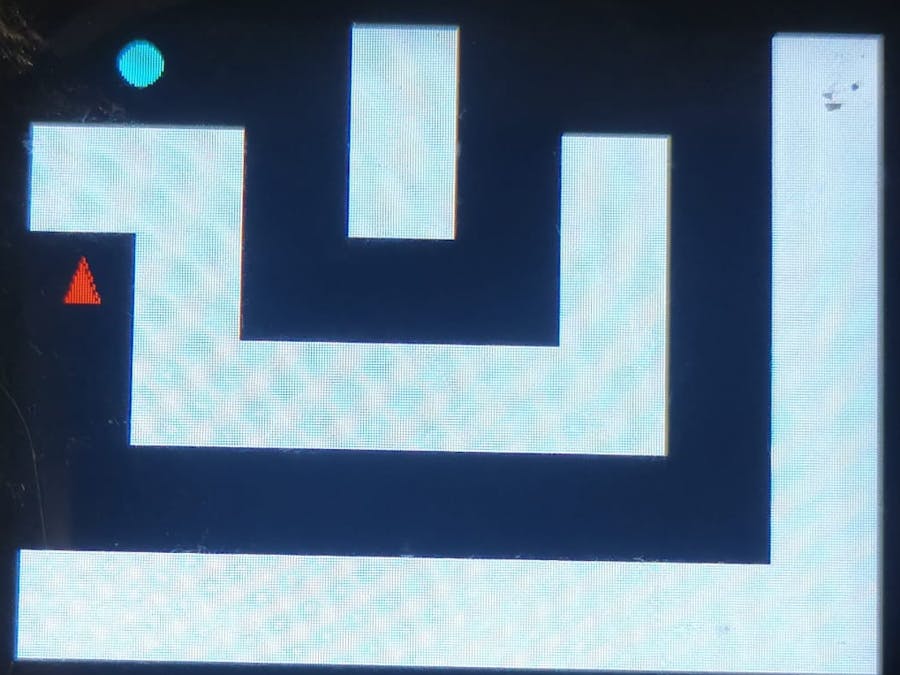

def draw_maze():
lcd.clear(0x000000) # Black background
for y in range(maze_height):
for x in range(maze_width):
if maze[y][x] == 1:
lcd.rect(x * grid_size, y * grid_size, grid_size, grid_size, color=0xFFFFFF, fillcolor=0xFFFFFF)
# Draw red flag at the destination
flag_x, flag_y = end_x * grid_size + grid_size // 2, end_y * grid_size + grid_size // 2
lcd.triangle(flag_x, flag_y - 10, flag_x - 6, flag_y + 6, flag_x + 6, flag_y + 6, color=0xFF0000, fillcolor=0xFF0000)
# Function for game over screen
def game_over():
lcd.fill(0x000000) # Clear screen
lcd.text(SCREEN_WIDTH // 2 - 50, SCREEN_HEIGHT // 2 - 10, "GAME OVER", 0xFFFFFF)
while True:
if btnA.isPressed():
return # Exit game over state when button A is pressed
# Main game loop
def game_loop():
global ball_x, ball_y, ball_velocity_x, ball_velocity_y
draw_maze() # Draw maze once at the start
while True:
# Erase previous ball position
lcd.circle(int(ball_x), int(ball_y), ball_radius, color=0x000000, fillcolor=0x000000)
# Get accelerometer readings
ax = imu0.acceleration[0] # X-axis acceleration
ay = imu0.acceleration[1] # Y-axis acceleration
# Apply scaling factor to tilt input for higher responsiveness
ball_velocity_x += -ax * scale_x # Inverted for proper direction
ball_velocity_y += ay * scale_y # Apply to Y-axis (up-down)
# Apply friction to simulate slowing down
ball_velocity_x *= friction
ball_velocity_y *= friction
# Update ball position based on velocity
ball_x += ball_velocity_x
ball_y += ball_velocity_y
# Ensure the ball stays within the maze boundaries
ball_x = max(0, min(SCREEN_WIDTH - 1, ball_x))
ball_y = max(0, min(SCREEN_HEIGHT - 1, ball_y))
# Convert the ball's position to integers for grid-based calculation
grid_x = int(ball_x // grid_size)
grid_y = int(ball_y // grid_size)
# Prevent moving into walls by checking if the ball is inside the maze grid
if 0 <= grid_x < maze_width and 0 <= grid_y < maze_height and maze[grid_y][grid_x] == 0:
ball_x, ball_y = ball_x, ball_y
else:
# Adjust ball position if it hits a wall
# Check in all four directions to find the point of collision
if maze[grid_y][grid_x] == 1: # If ball is colliding with a wall
# Move ball back to a valid position (slightly inside the grid)
ball_x -= ball_velocity_x # Revert X velocity
ball_y -= ball_velocity_y # Revert Y velocity
# Reverse velocity after collision
ball_velocity_x = -ball_velocity_x
ball_velocity_y = -ball_velocity_y
# Draw ball at new position
lcd.circle(int(ball_x), int(ball_y), ball_radius, color=0x00FFFF, fillcolor=0x00FFFF)
# Check if player reaches the goal
grid_x = int(ball_x // grid_size) # Ensure conversion to int before accessing grid
grid_y = int(ball_y // grid_size)
if grid_x == end_x and grid_y == end_y:
lcd.print("YOU WON!", 130, 110, 0xFF0000)
wait(2)
generate_maze()
draw_maze()
ball_x, ball_y = start_x * grid_size + grid_size // 2, start_y * grid_size + grid_size // 2
# Restart if Button A is pressed
if btnA.isPressed():
generate_maze()
draw_maze()
ball_x, ball_y = start_x * grid_size + grid_size // 2, start_y * grid_size + grid_size // 2
wait_ms(30) # Reduce flickering
game_loop()
