What I did

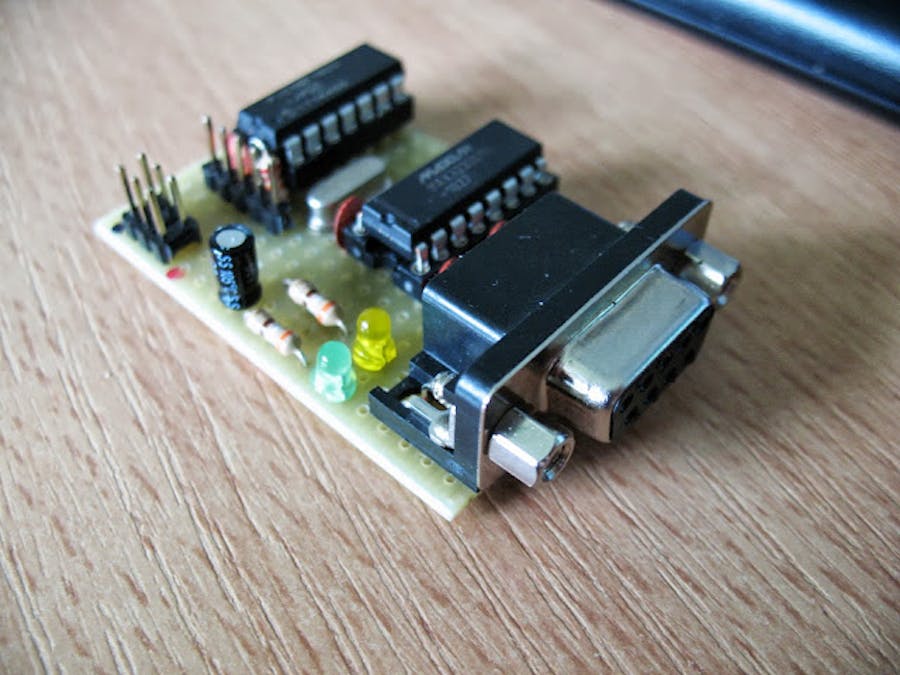

Basically it is STK500 port on PIC16F1825. I took this one, did some clean-up, wrote new hardware layer for PIC16 and voila - new programmer is born. It was done in one evening and night, ready to work in the morning. I didn't bother with USB (though there is a lot of DIP USB MCUs from microchip), as It would contain extreme amount of ICs - probably one more than this implementation - and I wanted to keep it simple and transparent. One can use FT232RL instead of MAX3232.
Well, what more? It works with both AVRstudio and avrdude. It has no ESD protection, but for recreational use (I don't like AVR very much) it is acceptable.
There is a lot of other programmers, as good (or better or worse) as this one. This is nothing special - I made it for sheer passion of PIC-AVR interracial marriage.
