Sea Vessel Switch Board

/*
 Name:		FS_Panel.ino

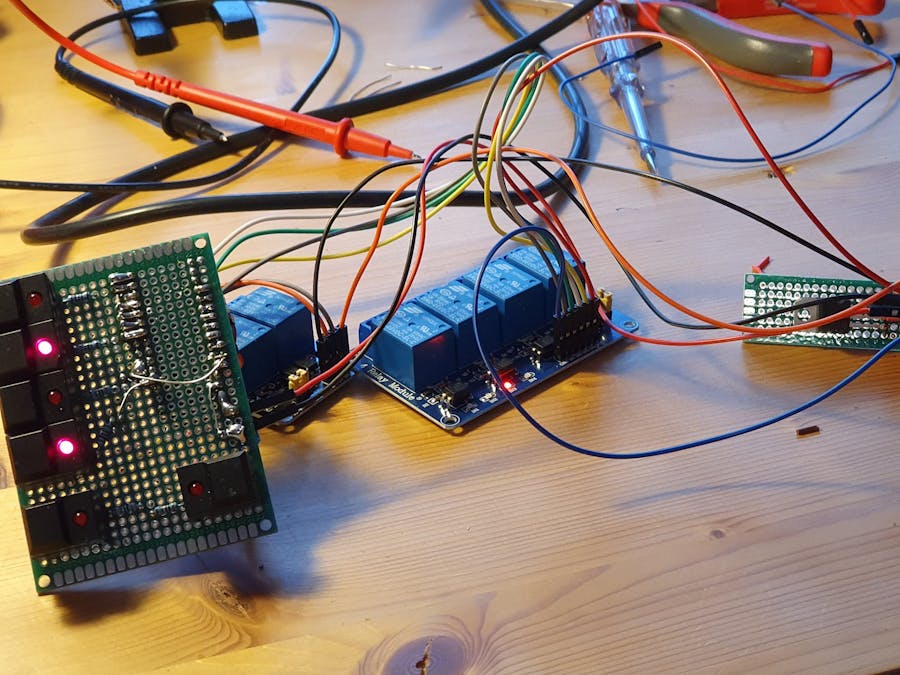

 Panel with 6 Buttons with LEDs to control lights, pumps and wipers.
 Internal pullup reistors are used so we have to connect the buttons to a sink.

 Created:	03.07.2019 08:23:01
 Author:	Joerg Pauly
*/

// Get the OneButton Library and all the other stuff working
#include <EEPROM.h>
#include <OneButton.h>

// As the relays close on LOW we need inverted triggers: switching a relay to ON means pull it's pin to GND
#define ON LOW
#define OFF HIGH

// define the Button's pins
int pinAnchor = A0;
int pinRunning = A1;
int pinBilge = A2;
int pinWater = A3;
int pinWiperL = A4;
int pinWiperR = A5;

// define pins for LEDs and relais
int relAnchor = 12;		// D12
int relRunning = 11;	// D11
int relBilge = 9;		// D9
int relWater = 8;		// D8
int relWiperL = 7;		// D7
int relWiperR = 6;		// D6

// define pins for feedback from the wipers
int febWiperL = A6;
int febWiperR = A7;

// define BOOLs to state if a wiper is to be switched off
bool flWiperL;
bool flWiperR;

// Create Button Objects
OneButton btnAnchor(pinAnchor, true);
OneButton btnRunning(pinRunning, true);
OneButton btnBilge(pinBilge, true);
OneButton btnWater(pinWater, true);
OneButton btnWiperL(pinWiperL, true);
OneButton btnWiperR(pinWiperR, true);

// Prepare the pins an attach the Buttons
void setup()
{
	// Make the buttons INPUT
	pinMode(pinAnchor, INPUT_PULLUP);
	pinMode(pinRunning, INPUT_PULLUP);
	pinMode(pinBilge, INPUT_PULLUP);
	pinMode(pinWater, INPUT_PULLUP);
	pinMode(pinWiperL, INPUT_PULLUP);
	pinMode(pinWiperL, INPUT_PULLUP);

	// Make relais and LEDs OUTPUT
	pinMode(relAnchor, OUTPUT);
	pinMode(relRunning, OUTPUT);
	pinMode(relBilge, OUTPUT);
	pinMode(relWater, OUTPUT);
	pinMode(relWiperL, OUTPUT);
	pinMode(relWiperR, OUTPUT);

	// Set them all to OFF
	digitalWrite(relAnchor, OFF);
	digitalWrite(relRunning, OFF);
	digitalWrite(relBilge, OFF);
	digitalWrite(relWater, OFF);
	digitalWrite(relWiperL, OFF);
	digitalWrite(relWiperR, OFF);

	// attach buttons to callbacks
	btnAnchor.attachClick(OnAnchorPressed);
	btnRunning.attachClick(OnRunningPressed);
	btnBilge.attachClick(OnBilgePressed);
	btnWater.attachClick(OnWaterPressed);
	btnWiperL.attachClick(OnWiperLPressed);
	btnWiperR.attachClick(OnWiperRPressed);
	btnWiperL.attachDuringLongPress(OnWiperLongPressed);
	btnWiperR.attachDuringLongPress(OnWiperLongPressed);

	if (EEPROM.read(0) == 1)
	{
		digitalWrite(relWater, ON);
	}
	else
	{
		digitalWrite(relWater, OFF);
	}

	flWiperL = false;
	flWiperR = false;
}

// the endless work of the MCU
void loop()
{
	// check the buttons
	btnAnchor.tick();
	btnRunning.tick();
	btnBilge.tick();
	btnWater.tick();
	btnWiperL.tick();
	btnWiperR.tick();

	// check if a wiper is to be switched off
	// TODO: change to tendence current measuring
	if (flWiperL)
	{
		//int res = analogRead(febWiperL);
		//if (res > 950)
		//{
			digitalWrite(relWiperL, OFF);
			flWiperL = false;
		//}
	}

	if (flWiperR)
	{
		//int res = analogRead(febWiperR);
		//if (res > 950)
		//{
			digitalWrite(relWiperR, OFF);
			flWiperR = false;
		//}
	}


}

// Here are the callback functions for the buttons

void OnAnchorPressed()
{
	if (digitalRead(relAnchor) == OFF)
	{
		digitalWrite(relAnchor, ON);
		digitalWrite(relRunning, OFF);
	}
	else
	{
		digitalWrite(relAnchor, OFF);
	}
}

void OnRunningPressed()
{
	if (digitalRead(relRunning) == OFF)
	{
		digitalWrite(relRunning, ON);
		digitalWrite(relAnchor, OFF);
	}
	else
	{
		digitalWrite(relRunning, OFF);
	}
}

void OnBilgePressed()
{
	if (digitalRead(relBilge) == OFF)
	{
		digitalWrite(relBilge, ON);
	}
	else
	{
		digitalWrite(relBilge, OFF);
	}
}

void OnWaterPressed()
{
	// "Water" is the only channel that is switched on in normal condition.
	// As we want to have the relays in rest position on normal we have to invert it by using the LOW/HIGH system.

	if (digitalRead(relWater) == LOW)
	{
		digitalWrite(relWater, HIGH);
		EEPROM.update(0, 1);
	}
	else
	{
		digitalWrite(relWater, LOW);
		EEPROM.update(0, 0);
	}
}

void OnWiperLPressed()
{
	if (digitalRead(relWiperL) == OFF)
	{
		digitalWrite(relWiperL, ON);
	}
	else
	{
		flWiperL = true;
	}
}

void OnWiperRPressed()
{
	if (digitalRead(relWiperR) == OFF)
	{
		digitalWrite(relWiperR, ON);
	}
	else
	{
		flWiperR = true;
	}
}

void OnWiperLongPressed()
{
	digitalWrite(relWiperL, ON);
	digitalWrite(relWiperR, ON);
}
