Smart Irrigation IOT

Automatically irrigate crops taking into account forecasted weather and current water content of the soil to minimise water usage.

Things used in this project

Hardware components

nodeMCU

Seeed Studio High Accuracy Pi RTC (DS3231)

Resistor 10k ohm

Through Hole Resistor, 50 kohm

LED (generic)

1N4007 – High Voltage, High Current Rated Diode

Solid State Relay

Linear Regulator (7805)

Infineon IRF540N

12V solenoid valve

heatsink TO-220

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

Story

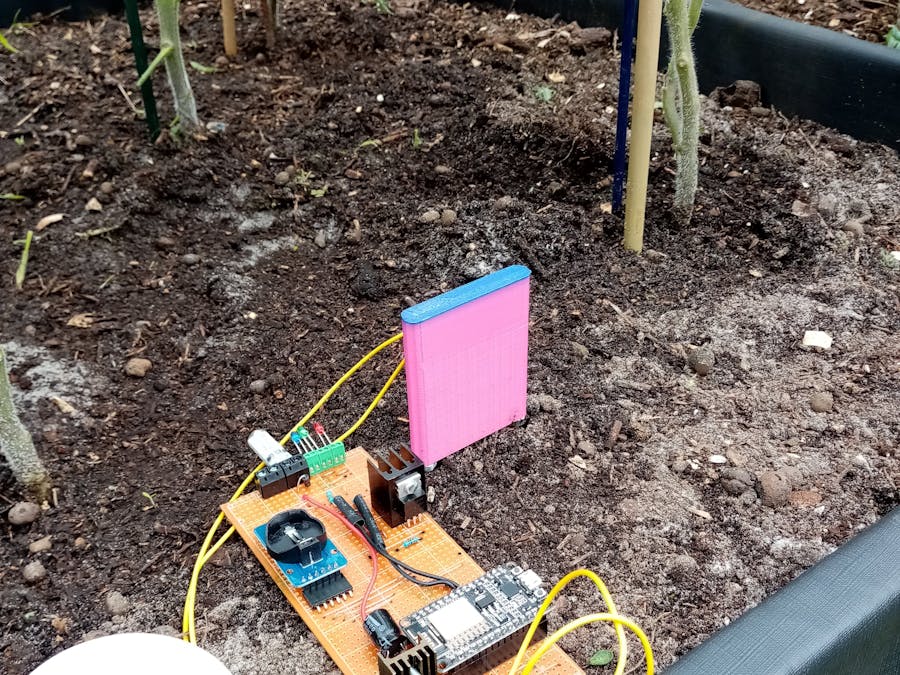

My wife is passionate gardener every day she looks after her plants. However we only have limited storage for rainwater. So I decided to build this automated irrigation system. To minimise water usage the system collects weather information via an API (connected to the house WIFI). If significant rain is predicted there is no need to irrigate. Also via a 3D printed sensor soil humidity is measured and the system only irrigates up to a given soil humidity. Those two parameters guarantee sufficient irrigation with a minimum of water consumption.
