3D Printed BLE Media Control Keyboard (ESPHome, OpenSCAD)

A tiny media control bar based on ESPHome, OpenSCAD, ESP32-C3

IntermediateWork in progress1 hour187

3D Printed BLE Media Control Keyboard (ESPHome, OpenSCAD)

Things used in this project

Hardware components

ESP32-C3 Super Mini

Low-profile Cherry MX Switch

Low-profile Keycap

Generic Mouse Rotary Encoder

3-pin, H5.5mm x W9.5mm

Φ1.75mm PLA filament

Used as the shaft for the knob. A short piece is needed.

Φ3mm x 6mm Magnet

M2 x 6mm Self tapping screws

Software apps and online services

ESPHome

OpenSCAD

Hand tools and fabrication machines

3D Printer (generic)

Story

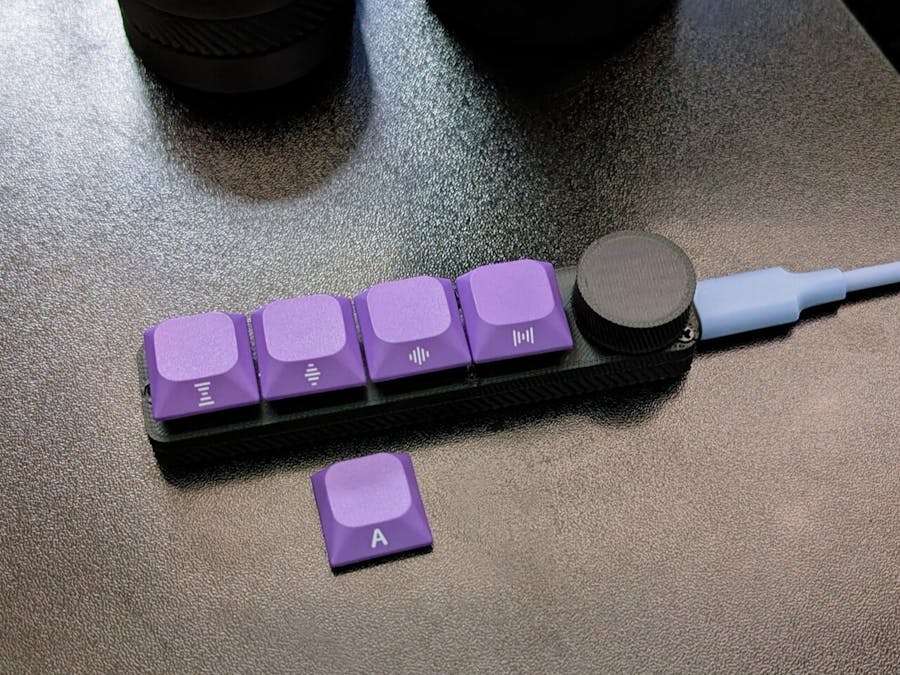

A tiny media control bar based on ESPHome.

4 Keys + 1 Rotary Encoder Knob
Acts as a BLE Keyboard with WiFi connectivity (ESP32-C3 Super Mini)
Seamless Home Assistant integration via ESPHome
Customizable 3D Printed Enclosure designed in OpenSCAD

Repo (ESPHome package, OpenSCAD .scad and .stl files): https://github.com/likeablob/mini-media-control-bar
