I Kept Killing My Plants. This E-Paper Dashboard Saved Them

Project Story: I confess, I'm a serial plant killer. I love the idea of plants, but I'm terrible at the practice. My salvation came not from a sudden green thumb, but from discovering two incredible, all-in-one smart devices that made building a solution almost laughably easy. This is the story of how I went from plant murderer to plant whisperer, with zero soldering or wiring required.

The "Why": A Non-Hardware Person's Dream

My desk desperately needed some life, but my track record with plants was abysmal. I needed a tech solution, but the thought of breadboards, jumper wires, and complex schematics was intimidating. I'm a software person; I want to write code, not debug a loose connection.

My search for a simple solution led me to a revelation. I found two products from Seeed Studio that were exactly what I needed: a complete, self-contained Soil Moisture Sensor and a complete, self-contained E-Paper Display. Each had a powerful XIAO ESP32-C3 already built-in. This was a game-changer. The hardware problem was already solved; all I had to do was bring them to life with software.

The Architecture: A Tale of Two Devices

My plan was simple and wireless, leveraging the power of these all-in-one gadgets.

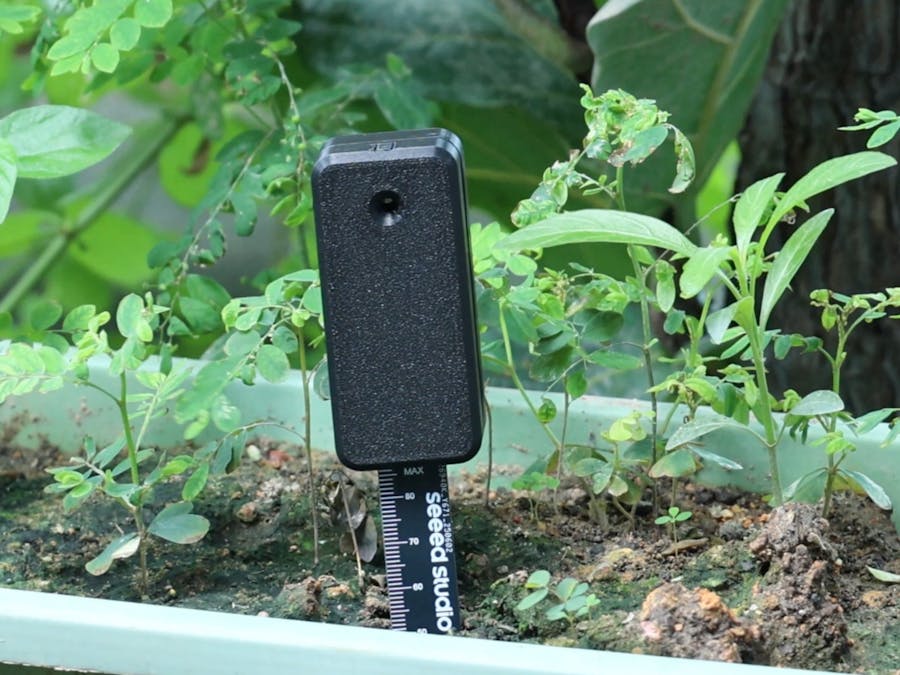

• The Sensor: The Seeed Studio XIAO Soil Moisture Sensor would be staked directly into my plant's pot. Its singular job: measure the moisture and report it over Wi-Fi.
• The Display: The Seeed Studio 7.5inch E-Paper Panel would live on my desk. Its job: to act as my personal command center, fetching the plant's status, the weather forecast, and my daily calendar from Home Assistant and displaying it all in a beautiful, calm interface.

This wireless, modular approach meant no clutter and maximum flexibility. The magic tying them together would be Home Assistant and ESPHome.

Software:

• A running Home Assistant instance.
• The ESPHome Add-on for Home Assistant.

The Build Process: From Box to Working in Minutes

Hardware Setup (The 30-Second Step)

• Take the Soil Sensor out of its box.
• Take the E-Paper Display out of its box.

That's it. The hardware build is 100% complete. This is the magic of using truly integrated products. Now, for the fun part.

Software Configuration

The entire project is defined in two simple YAML files within ESPHome.

Step 1: Configure the Soil Sensor

This file tells the sensor how to connect to your Wi-Fi and report its data to Home Assistant.

substitutions:
  name: "xiao-soil-moisture"
  friendly_name: "XIAO Soil Moisture Monitor"

esphome:
  name: "${name}"
  friendly_name: "${friendly_name}"
  name_add_mac_suffix: true
  project:
    name: "xiao.soil-moisture-monitor"
    version: "1.0"
  platformio_options:
    platform: https://github.com/mnowak32/platform-espressif32.git#boards/seeed_xiao_esp32c6
  on_boot:
    then:
      - output.turn_off: gpio_3_output
      - output.turn_on: gpio_14_output
      - light.turn_on:
          id: pwm_led
          brightness: 68%  # Set 68% duty cycle
      - if:
          condition:
            lambda: 'return id(wifi_net_status) == 0;'
          then:
            - logger.log: "The device has not been set to the network"
            - deep_sleep.prevent: deep_sleep_control
          else:
            - logger.log: "The device has been networked"
      - delay: 1s
      - script.execute: check_moisture_once


esp32:
  board: seeed_xiao_esp32c6
  variant: ESP32C6
  flash_size: 4MB
  framework:
    type: esp-idf
    version: "5.2.1"
    platform_version: 6.6.0
    sdkconfig_options:
      CONFIG_ESPTOOLPY_FLASHSIZE_4MB: y


# LED Yellow	D10 18
# LED RED	D9  20
# LED Green	D8 19
# button	D2  2

# Battery	D0 0
# PWM out	D3 21
# Soil sensor	D1  1


output:
  - platform: gpio
    pin: GPIO18
    id: yellow_led_output

  - platform: gpio
    pin: GPIO19
    id: green_led_output

  - platform: gpio
    pin: GPIO20
    id: red_led_output

  - platform: ledc
    pin: GPIO21
    id: pwm_output
    frequency: 200kHz  # Set the frequency to 200kHz

  - platform: gpio
    pin: GPIO3
    id: gpio_3_output

  - platform: gpio
    pin: GPIO14
    id: gpio_14_output

light:
  - platform: binary
    id: yellow_led
    output: yellow_led_output

  - platform: binary
    id: green_led
    output: green_led_output

  - platform: binary
    id: red_led
    output: red_led_output

  - platform: monochromatic
    output: pwm_output
    id: pwm_led
    name: "200kHz PWM"
    internal: true
    default_transition_length: 0s


script:
  - id: red_led_blink
    mode: restart
    then:
      - repeat:
          count: 10
          then:
            - light.turn_on: red_led
            - delay: 500ms
            - light.turn_off: red_led
            - delay: 500ms

  - id: green_led_blink
    mode: restart
    then:
      - repeat:
          count: 10
          then:
            - light.turn_on: green_led
            - delay: 500ms
            - light.turn_off: green_led
            - delay: 500ms

  - id: fast_blink_green
    then:
      - repeat:
          count: 5
          then:
            - light.turn_on: green_led
            - delay: 200ms
            - light.turn_off: green_led
            - delay: 200ms

  - id: fast_blink_red
    then:
      - repeat:
          count: 5
          then:
            - light.turn_on: red_led
            - delay: 200ms
            - light.turn_off: red_led
            - delay: 200ms

  - id: red_led_blink_3_times
    then:
      - repeat:
          count: 1
          then:
            - light.turn_on: red_led
            - delay: 1000ms
            - light.turn_off: red_led
            - delay: 100ms
  - id: yellow_led_blink_3_times
    then:
      - repeat:
          count: 1
          then:
            - light.turn_on: yellow_led
            - delay: 1000ms
            - light.turn_off: yellow_led
            - delay: 100ms

  - id: green_led_blink_3_times
    then:
      - repeat:
          count: 1
          then:
            - light.turn_on: green_led
            - delay: 1000ms
            - light.turn_off: green_led
            - delay: 100ms


  - id: do_calibration
    then:
      - deep_sleep.prevent: deep_sleep_control
      - logger.log: "Starting calibration"
      - script.execute: red_led_blink
      - delay: 10s
      - script.stop: red_led_blink
      - lambda: |-
          float sum = 0;
          for (int i = 0; i < 10; i++) {
            id(soil_sensor).update();
            sum += id(soil_sensor).state;
            delay(200);
          }
          id(dry_value) = sum / 10.0;
          ESP_LOGI("calibration", "Dry value: %f", id(dry_value));

      - delay: 3s

      - script.execute: green_led_blink
      - delay: 10s
      - script.stop: green_led_blink
      - lambda: |-
          float sum = 0;
          for (int i = 0; i < 10; i++) {
            id(soil_sensor).update();
            sum += id(soil_sensor).state;
            delay(200);
          }
          id(wet_value) = sum / 10.0;
          ESP_LOGI("calibration", "Wet value: %f", id(wet_value));

      - delay: 3s

      - lambda: |-
          if (id(dry_value) > id(wet_value)) {
            ESP_LOGI("calibration", "Calibration success");
            id(fast_blink_green).execute();
          } else {
            ESP_LOGW("calibration", "Calibration failed");
            id(fast_blink_red).execute();
          }

      - delay: 3s
      - script.execute: check_moisture_once
      - delay: 3s
      - deep_sleep.enter: deep_sleep_control

  - id: check_moisture_once
    then:
      - lambda: |-
          for(int i = 0; i < 10; i++){
            id(soil_sensor).update();
            delay(200);
          }
          float moisture = id(soil_sensor).state;
          ESP_LOGI("moisture_check", "Moisture reading: %f", moisture);
          float Diff = id(dry_value) - id(wet_value);
          ESP_LOGI("moisture_check", "Diff is: %f", Diff);
          ESP_LOGI("moisture_check", "ref_dry Diff is: %f",id(dry_value) - Diff * id(ref_dry));
          ESP_LOGI("moisture_check", "ref_wet Diff is: %f",id(dry_value) - Diff * id(ref_wet));
          if (moisture >= (id(dry_value) - Diff * id(ref_dry))) {  // The drier -> the higher the voltage
            id(red_led_blink_3_times).execute();
            id(deep_sleep_control).set_sleep_duration(900000);
          } else if(moisture >  (id(dry_value) - Diff * id(ref_wet)) && moisture < (id(dry_value) - Diff * id(ref_dry))){
            id(yellow_led_blink_3_times).execute();
            id(deep_sleep_control).set_sleep_duration(3600000);
          }else{
            // moisture >  (id(dry_value) - Diff * id(ref_wet))
            id(green_led_blink_3_times).execute();
            id(deep_sleep_control).set_sleep_duration(28800000);
          }



globals:
  - id: button_press_count
    type: int
    restore_value: no
    initial_value: '0'
  - id: dry_value
    type: float
    restore_value: yes
    initial_value: '2.75'
  - id: wet_value
    type: float
    restore_value: yes
    initial_value: '1.2'
  - id: wifi_net_status
    type: int
    restore_value: yes
    initial_value: "0"
  - id: ref_dry
    type: float
    restore_value: no
    initial_value: "0.23"
  - id: ref_wet
    type: float
    restore_value: no
    initial_value: "0.58"

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO2
      mode: INPUT_PULLUP
      allow_other_uses: true
    id: my_button
    on_press:
      - lambda: |-
          id(button_press_count)++;
      - delay: 1s  # Delay 1 second to see if the button is pressed 3 times in a row
      - lambda: |-
          if (id(button_press_count) == 3) {
            id(button_press_count) = 0;
            id(do_calibration).execute();  // Trigger calibration process
          } else if (id(button_press_count) == 1) {
            id(button_press_count) = 0;
            id(check_moisture_once).execute();  // Perform an ADC decision
          } else {
            id(button_press_count) = 0;
          }


# interval:
#   - interval: 10s
#     then:
#       - script.execute: check_moisture_once



# Deep sleep configuration
deep_sleep:
  id: deep_sleep_control
  run_duration: 120s
  sleep_duration: 180min
  wakeup_pin:
    number: GPIO2
    inverted: true
    allow_other_uses: true
    mode: INPUT_PULLUP


external_components:
  - source: github://pr#7942
    components: [ "adc" ]

  - source:
      type: git
      url: https://github.com/ackPeng/esphome.git
      ref: api
    components: [ api ]
    refresh: 0s

sensor:
  - platform: adc
    id: soil_sensor
    pin: GPIO1
    name: "Soil moisture measurement"
    update_interval: 4s
    internal: true
    attenuation: 12db


  - platform: adc
    pin: GPIO0
    name: "Battery measurement"
    attenuation: 12db
    # internal: true
    filters:                     # When the battery drops below 1V, it is dead.
      - lambda: |-
          if (x < 1.2) {
            return 0.0;
          }else if(x > 1.5){
            return 1.0 * 100.0;
          }else {
            return ((x - 1.2) / (1.5 - 1.2)) * 100.0;
          }
    unit_of_measurement: "%"
    update_interval: 5s
    force_update: True

  - platform: wifi_signal
    name: "wifi singnal strength"
    update_interval: 10s

# text_sensor:
#   - platform: template
#     name: "Soil Moisture Status"   # ✅ Status displayed on the HA panel
#     id: soil_status
#     # internal: true
#     lambda: |-
#       float value = id(soil_sensor).state;
#       float Diff = id(dry_value) - id(wet_value);
#       if (value >= (id(dry_value) - Diff * id(ref_dry))) {
#         //id(red_led_blink_3_times).execute();
#         return {"Dry"};
#       } else if (value > (id(dry_value) - Diff * id(ref_wet)) && value < (id(dry_value) - Diff * id(ref_dry))) {
#         //id(yellow_led_blink_3_times).execute();
#         return {"Almost Dry"};
#       } else {
#         //id(green_led_blink_3_times).execute();
#         return {"Normal Moisture"};
#       }
#     update_interval: 5s

text_sensor:
  - platform: template
    name: "Soil Moisture Status"
    id: soil_status
    lambda: |-
      float value = id(soil_sensor).state;
      float Diff = id(dry_value) - id(wet_value);
      if (value >= (id(dry_value) - Diff * id(ref_dry))) {
        return {"Dry"};
      } else if (value > (id(dry_value) - Diff * id(ref_wet)) && value < (id(dry_value) - Diff * id(ref_dry))) {
        return {"Almost Dry"};
      } else {
        return {"Normal Moisture"};
      }
    update_interval: never  # 不让自动触发上报，我们自己控制

interval:
  - interval: 5s
    then:
      - text_sensor.template.publish:
          id: soil_status
          state: !lambda |-
            return "";
      - delay: 10ms
      - text_sensor.template.publish:
          id: soil_status
          state: !lambda |-
            float value = id(soil_sensor).state;
            float Diff = id(dry_value) - id(wet_value);
            if (value >= (id(dry_value) - Diff * id(ref_dry))) {
              id(deep_sleep_control).set_sleep_duration(900000);
              return "Dry";
            } else if (value > (id(dry_value) - Diff * id(ref_wet)) && value < (id(dry_value) - Diff * id(ref_dry))) {
              id(deep_sleep_control).set_sleep_duration(3600000);
              return "Almost Dry";
            } else {
              id(deep_sleep_control).set_sleep_duration(28800000);
              return "Normal Moisture";
            }

# Enable logging
logger:

improv_serial:

# Enable Home Assistant API
api:

ota:
  - platform: esphome

wifi:
  on_connect:
    then:
      - if:
          condition:
            lambda: 'return id(wifi_net_status) == 0;'
          then:
            - logger.log: "The device has not been configured yet, but now it is successfully configured"
            - globals.set:
                id: wifi_net_status
                value: '1'
            - delay: 5s
            - deep_sleep.allow: deep_sleep_control
          else:
            - logger.log: "The device has been networked"


  on_disconnect:
    then:
      - globals.set:
          id: wifi_net_status
          value: '0'
  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "XIAO-Soil-Moisture-Monitor"

captive_portal:

Step 2: Configure the E-Paper Dashboard

This more detailed file tells the display what information to fetch and how to draw it on the screen.

esphome:
  name: dashboard
  friendly_name: dashboard

esp32:
  board: esp32-c3-devkitm-1
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:

ota:
- platform: esphome


globals:
  - id: wifi_status
    type: int
    restore_value: no
    initial_value: "0"
  - id: first_update_done
    type: bool
    restore_value: no
    initial_value: "false"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  on_connect:
    then:
      - lambda: |-
        id(wifi_status) = 1;
  on_disconnect:
    then:
      - lambda: |-
        id(wifi_status) = 0;

captive_portal:

script:
  - id: update_display
    then:
      - component.update: my_display

interval:
  # Condition: wifi connected && data retrieved && first time
  - interval: 10s # Check every second
    then:
      - if:
          condition:
            and:
              - wifi.connected:
              - lambda: "return !id(ha_calendar_event_1).state.empty();"
              - lambda: "return !id(first_update_done);"
          then:
            - lambda: |-
                ESP_LOGD("Display", "Updating Display...");
            - script.execute: update_display # Refresh immediately
            - lambda: "id(first_update_done) = true;"

image:
  - file: image/wifi.jpg
    type: BINARY
    id: esphome_logo
    resize: 400x240
    invert_alpha: true

# Connect to Home Assistant to get time
time:
  - platform: homeassistant
  id: homeassistant_time

text_sensor:
  - platform: homeassistant
    id: ha_calendar_event_1
    entity_id: calendar.calendar
    attribute: "message"
  - platform: homeassistant
    id: ha_calendar_start_time_1
    entity_id: calendar.calendar
    attribute: "start_time"
  - platform: homeassistant
    id: ha_calendar_end_time_1
    entity_id: calendar.calendar
    attribute: "end_time"
  - platform: homeassistant
    id: ha_calendar_event_2
    entity_id: calendar.calendar2
    attribute: "message"
  - platform: homeassistant
    id: ha_calendar_start_time_2
    entity_id: calendar.calendar2
    attribute: "start_time"
  - platform: homeassistant
    id: ha_calendar_end_time_2
    entity_id: calendar.calendar2
    attribute: "end_time"
  - platform: homeassistant
    id: ha_calendar_event_3
    entity_id: calendar.calendar3
    attribute: "message"
  - platform: homeassistant
    id: ha_calendar_start_time_3
    entity_id: calendar.calendar3
    attribute: "start_time"
  - platform: homeassistant
    id: ha_calendar_end_time_3
    entity_id: calendar.calendar3
    attribute: "end_time"
  - platform: homeassistant
    entity_id: weather.home
    id: myWeather
  - platform: homeassistant
    entity_id: weather.home
    id: temp
    attribute: "temperature"
  - platform: homeassistant
    entity_id: sensor.xiao_soil_moisture_b4c0f4_soil_moisture_status
    id: soil
  - platform: homeassistant
    entity_id: weather.home
    id: wind_bearing
    attribute: "wind_bearing"
  - platform: homeassistant
    entity_id: weather.home
    id: wind
    attribute: "wind_speed"

font:
  - file: "fonts/Montserrat-Black.ttf"
    id: web_font
    size: 20
  - file: "fonts/Montserrat-Black.ttf"
    id: data_font
    size: 30
  - file: "fonts/Montserrat-Black.ttf"
    id: sensor_font
    size: 22
  - file: "gfonts://Inter@700" #
    id: font1
    size: 24
  - file: 'fonts/materialdesignicons-webfont.ttf' # Directory to save ttf file
    id: font_mdi_large
    size: 200
    glyphs: &mdi-weather-glyphs # https://pictogrammers.com/library/mdi/
      - "\U000F050F" # Thermometer
      - "\U000F058E" # Humidity
      - "\U000F059D" # Wind speed
      - "\U000F0D60" # Atmospheric pressure
      - "\U000F0590" # Cloudy weather
      - "\U000F0596" # Rainy weather
      - "\U000F0598" # Snowy weather
      - "\U000F0599" # Sunny weather
  - file: 'fonts/materialdesignicons-webfont.ttf'
    id: font_weather # Copy the above icon and change the size to 40
    size: 200
    glyphs: *mdi-weather-glyphs
  - file: 'fonts/materialdesignicons-webfont.ttf'
    id: img_font_sensor # Copy the above icon and change the size to 40
    size: 70
    glyphs: *mdi-weather-glyphs

spi:
  clk_pin: GPIO8
  mosi_pin: GPIO10

display:
  - platform: waveshare_epaper
    id: my_display
    cs_pin: GPIO3
    dc_pin: GPIO5
    busy_pin: GPIO4
    reset_pin: GPIO2
    model: 7.50inv2
    update_interval: 70s
    lambda: |-
      if(id(wifi_status) == 0){
it.image(180, 0, id(esphome_logo));
it.print(230, 300, id(data_font), "WI-FI CONNECTING");
}else{
// Draw weather images here
std::string weather_string = id(myWeather).state.c_str();
if(weather_string == "rainy" || weather_string == "lightning" || weather_string == "pouring"){
// Draw rainy weather image
it.printf(120, 85, id(font_weather), TextAlign::CENTER, "\U000F0596");
}else if(weather_string == "snowy"){
// Draw snowy weather image
it.printf(120, 85, id(font_weather), TextAlign::CENTER, "\U000F0598");
}else if(weather_string == "sunny" || weather_string == "windy"){
// Draw sunny weather image
it.printf(120, 85, id(font_weather), TextAlign::CENTER, "\U000F0599");
}else{
// Draw cloudy weather image
it.printf(120, 85, id(font_weather), TextAlign::CENTER, "\U000F0590");
}
auto time_now = id(homeassistant_time).now();
// Month conversion
const char* months[] = {
"January", "February", "March", "April", "May", "June",
"July", "August", "September", "October", "November", "December"
};
const char* month_str = months[time_now.month - 1];  // Month index starts from 0
// Get the day
int day = time_now.day_of_month;
// Draw the date
it.printf(220, 110, id(data_font), "%s %d", month_str, day);
// Get the day of the week
const char* days[] = {"Saturday", "Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday"};
const char* day_of_week = days[time_now.day_of_week];
it.printf(220, 70, id(data_font), "%s", day_of_week);
int x = 20, y = 180, w = 180, h = 120, r = 10, thickness = 4;
// Draw four borders
it.filled_rectangle(x + r, y, w - 2 * r, thickness); // Top border
it.filled_rectangle(x + r, y + h - thickness, w - 2 * r, thickness); // Bottom border
it.filled_rectangle(x, y + r, thickness, h - 2 * r); // Left border
it.filled_rectangle(x + w - thickness, y + r, thickness, h - 2 * r); // Right border
// Draw four rounded corners
it.filled_circle(x + r, y + r, r); // Top-left corner
it.filled_circle(x + w - r, y + r, r); // Top-right corner
it.filled_circle(x + r, y + h - r, r); // Bottom-left corner
it.filled_circle(x + w - r, y + h - r, r); // Bottom-right corner
// Fill the inside with black to form a border
it.filled_rectangle(x + thickness, y + thickness, w - 2 * thickness, h - 2 * thickness, COLOR_OFF);
// Temperature
it.printf(x+10, y+10, id(sensor_font), "Temperature");
it.printf(x+35, y+75, id(img_font_sensor), TextAlign::CENTER, "\U000F050F");
// Get temperature data
it.printf(x+58,y+65, id(data_font), "%s°C", id(temp).state.c_str());
x = 220;
y = 180;
// Draw four borders
it.filled_rectangle(x + r, y, w - 2 * r, thickness); // Top border
it.filled_rectangle(x + r, y + h - thickness, w - 2 * r, thickness); // Bottom border
it.filled_rectangle(x, y + r, thickness, h - 2 * r); // Left border
it.filled_rectangle(x + w - thickness, y + r, thickness, h - 2 * r); // Right border
// Draw four rounded corners
it.filled_circle(x + r, y + r, r); // Top-left corner
it.filled_circle(x + w - r, y + r, r); // Top-right corner
it.filled_circle(x + r, y + h - r, r); // Bottom-left corner
it.filled_circle(x + w - r, y + h - r, r); // Bottom-right corner
// Fill the inside with black to form a border
it.filled_rectangle(x + thickness, y + thickness, w - 2 * thickness, h - 2 * thickness, COLOR_OFF);
// Soil Sensor
it.printf(x+10, y+10, id(sensor_font), "Soil Sensor");
it.printf(x+45, y+75, id(img_font_sensor), TextAlign::CENTER, "\U000F058E");
// Get soil sensor data
it.printf(x+75,y+65, id(data_font), "%s%", id(soil).state.c_str());
x = 20;
y = 320;
// Draw four borders
it.filled_rectangle(x + r, y, w - 2 * r, thickness); // Top border
it.filled_rectangle(x + r, y + h - thickness, w - 2 * r, thickness); // Bottom border
it.filled_rectangle(x, y + r, thickness, h - 2 * r); // Left border
it.filled_rectangle(x + w - thickness, y + r, thickness, h - 2 * r); // Right border
// Draw four rounded corners
it.filled_circle(x + r, y + r, r); // Top-left corner
it.filled_circle(x + w - r, y + r, r); // Top-right corner
it.filled_circle(x + r, y + h - r, r); // Bottom-left corner
it.filled_circle(x + w - r, y + h - r, r); // Bottom-right corner
// Fill the inside with black to form a border
it.filled_rectangle(x + thickness, y + thickness, w - 2 * thickness, h - 2 * thickness, COLOR_OFF);
// wind_bearing
it.printf(x+10, y+10, id(sensor_font), "Wind Bearing");
it.printf(x+45, y+75, id(img_font_sensor), TextAlign::CENTER, "\U000F0D60");
// Get atmospheric wind_bearing data
it.printf(x+85,y+50, id(data_font), "%s", id(wind_bearing).state.c_str());
x = 220;
y = 320;
// Draw four borders
it.filled_rectangle(x + r, y, w - 2 * r, thickness); // Top border
it.filled_rectangle(x + r, y + h - thickness, w - 2 * r, thickness); // Bottom border
it.filled_rectangle(x, y + r, thickness, h - 2 * r); // Left border
it.filled_rectangle(x + w - thickness, y + r, thickness, h - 2 * r); // Right border
// Draw four rounded corners
it.filled_circle(x + r, y + r, r); // Top-left corner
it.filled_circle(x + w - r, y + r, r); // Top-right corner
it.filled_circle(x + r, y + h - r, r); // Bottom-left corner
it.filled_circle(x + w - r, y + h - r, r); // Bottom-right corner
// Fill the inside with black to form a border
it.filled_rectangle(x + thickness, y + thickness, w - 2 * thickness, h - 2 * thickness, COLOR_OFF);
// Wind Speed
it.printf(x+10, y+10, id(sensor_font), "Wind Speed");
it.printf(x+45, y+75, id(img_font_sensor), TextAlign::CENTER, "\U000F059D");
// Get wind speed data
it.printf(x+85,y+50, id(data_font), "%s", id(wind).state.c_str());
it.printf(x+85,y+78, id(sensor_font), "km/h");
// Draw a vertical line
it.filled_rectangle(430, 30, 5, 430);
// Right section
it.printf(540, 40, id(data_font), "Calendar");
// Define event structure
struct Event {
std::string message;
std::string start_time;
std::string end_time;
time_t start_timestamp;
};
// Parse time string to time_t (UNIX timestamp)
auto parse_time = [](const std::string &time_str) -> time_t {
struct tm timeinfo = {};
if (strptime(time_str.c_str(), "%Y-%m-%d %H:%M:%S", &timeinfo) == nullptr) {
return 0;  // Invalid time
}
return mktime(&timeinfo);
};
// Create event list
std::vector<Event> events = {
{id(ha_calendar_event_1).state, id(ha_calendar_start_time_1).state, id(ha_calendar_end_time_1).state, parse_time(id(ha_calendar_start_time_1).state)},
{id(ha_calendar_event_2).state, id(ha_calendar_start_time_2).state, id(ha_calendar_end_time_2).state, parse_time(id(ha_calendar_start_time_2).state)},
{id(ha_calendar_event_3).state, id(ha_calendar_start_time_3).state, id(ha_calendar_end_time_3).state, parse_time(id(ha_calendar_start_time_3).state)}
};
ESP_LOGD("myCalendar", "Start Time: %s -> %ld", id(ha_calendar_start_time_1).state.c_str(), parse_time(id(ha_calendar_start_time_1).state));
ESP_LOGD("myCalendar", "Start Time: %s -> %ld", id(ha_calendar_start_time_2).state.c_str(), parse_time(id(ha_calendar_start_time_2).state));
ESP_LOGD("myCalendar", "Start Time: %s -> %ld", id(ha_calendar_start_time_3).state.c_str(), parse_time(id(ha_calendar_start_time_3).state));
// Filter invalid events (start_timestamp == 0)
events.erase(std::remove_if(events.begin(), events.end(), [](const Event &e) { return e.start_timestamp == 0; }), events.end());
// Sort by `start_timestamp` (earliest to latest)
std::sort(events.begin(), events.end(), [](const Event &a, const Event &b) {
return a.start_timestamp < b.start_timestamp;
});
// Define a function to format time
auto format_time = [](std::string time_str) -> std::string {
struct tm timeinfo;
if (strptime(time_str.c_str(), "%Y-%m-%d %H:%M:%S", &timeinfo) == nullptr) {
return "Invalid";
}
char buffer[10];
strftime(buffer, sizeof(buffer), "%I:%M%p", &timeinfo); // Convert to 12-hour format
return std::string(buffer);
};
// Parse date
auto format_date = [](const std::string &time_str) -> std::string {
struct tm timeinfo = {};
if (strptime(time_str.c_str(), "%Y-%m-%d %H:%M:%S", &timeinfo) == nullptr) {
return "Invalid";
}
char buffer[6];  // Need to store "MM-DD\0"
strftime(buffer, sizeof(buffer), "%m-%d", &timeinfo);
return std::string(buffer);
};
// Draw events
int even_x_start_offset = 460;
int even_y_start_offset = 80;
for (const auto &event : events) {
if(even_y_start_offset >= 420){
break;
}
// Format time
std::string formatted_date = format_date(event.start_time);
std::string formatted_start_time = format_time(event.start_time);
std::string formatted_end_time = format_time(event.end_time);
// Combine time range string
std::string time_range = formatted_start_time + " - " + formatted_end_time;
time_range = formatted_date + "  " + time_range;
if(formatted_start_time == "Invalid" || formatted_end_time == "Invalid"){
time_range.clear();
}
// Display time range, e.g., "10:00AM - 11:00AM"
it.printf(even_x_start_offset, even_y_start_offset, id(sensor_font), "%s", time_range.c_str());
even_y_start_offset += 30;
// Display event name
it.printf(even_x_start_offset, even_y_start_offset, id(sensor_font), "%s", event.message.c_str());
even_y_start_offset += 40;
}
}

Step 3: My Hard-Won Lessons (Read This to Avoid Headaches!)

Even with simple hardware, software can have its quirks. Here's what I learned so you don't have to.

Entity IDs Are Your Enemy!

• The Problem: The dashboard code relies on entity_id's from Home Assistant, like sensor.xiao_soil_moisture_b4c0f4_soil_moisture_status or weather.home. These will be different for you! Copying my code directly will result in a blank screen or "unavailable" messages.
• The Fix: Go to Developer Tools > States in your Home Assistant dashboard. Find the exact entity IDs for your devices and services. Carefully replace every single one in the YAML file. Precision is key.

The Mystery of Font & Icon Paths

• The Problem: ESPHome needs to find your font files (like Montserrat-Black.ttf and materialdesignicons-webfont.ttf) during compilation. If the path is wrong, the process will fail with a cryptic error.
• The Fix: In your ESPHome config directory (e.g., /config/esphome/), create a fonts folder. Place your .ttf files inside it. Then, in your YAML, reference them with a relative path like fonts/your_font.ttf.

The Magic (and Traps) of Icon Glyphs

• The Magic: The Material Design Icon font has thousands of icons. Loading the whole thing would instantly overwhelm the device's memory. The glyphs: configuration is a lifesaver—it tells ESPHome to only package the specific icons we list, saving precious RAM.
• The Trap: Finding the right code for an icon can be tricky. Go to the [Pictogrammers MDI Library], find your icon (e.g., "water-percent"), click it, and copy the "Codepoint" (e.g., F058E). In your YAML, you must format it as a Unicode string: "\U000F058E". Get this format wrong, and it won't work.

The Wi-Fi Connection & First Refresh Race Condition

• The Problem: When the device boots, it might try to fetch data from Home Assistant before the Wi-Fi is fully connected. This will fail, potentially leaving your screen blank or in an error state.
• The Fix: The code implements a robust startup sequence using wifi_status and first_update_done flags. It displays a "Connecting..." message first. Only after Wi-Fi is confirmed and the initial data is successfully retrieved does it perform the first full screen refresh. This small detail makes the user experience infinitely better.

The Result: A Desk Companion That Sparks Joy

The moment the display flickered to life, showing a perfect dashboard, was incredible. A project that I thought would be complex was made simple by choosing the right hardware.

Now, with a single glance, I know:

• If my plant is thirsty.
• If I need an umbrella for my lunch break.
• The current temperature and wind conditions.
• My next meeting on the calendar.

This project was a powerful reminder that technology is at its best when it's accessible. Thanks to these amazing all-in-one products, a sophisticated smart-home device is no longer a complex hardware challenge, but purely a software one.

Happy Hacking!
