Hourly Speaking Clock with LED Light 3s

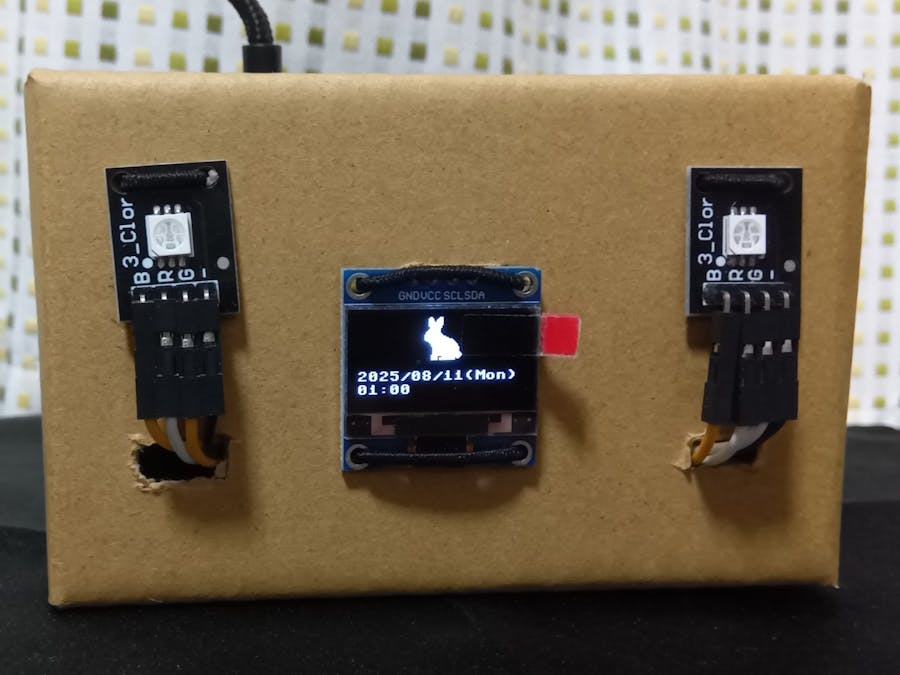

OLED constantly displays image, date, weekday, and time. Speaks time hourly, lights LED for 3s.

IntermediateFull instructions providedOver 1 day55

Things used in this project

Hardware components

M5Stack STAMPS3

M5Stack -STAMPS3 GroveBreakOut

Software apps and online services

MicroPython

Story

Part List

Here is the detailed parts list:

System Configuration

The system configuration is outlined below:

OLED

The control chip used in the module is a standard SSD1306, so there is a MicroPython library for it.

https://github.com/TimHanewich/MicroPython-SSD1306

However, the I2C notation has changed, so please follow the Hardware I2C Bus section of the MicroPython documentation.

https://docs.micropython.org/en/latest/esp32/quickref.html#software-i2c-bus

If you want to display something in MicroPython, save the following code on your board without changing the name:

https://github.com/TimHanewich/MicroPython-SSD1306/blob/master/src/ssd1306.py


The images are taken from the following links:

https://icooon-mono.com/12766-%ef%bd%92abbit-icon-1/?lang=en

The size is 32px, the color is white(RGB:255, 255, 255), and the type is png.

If you want to display it on an OLED screen, please convert it to binary using the following site.

https://www.digole.com/tools/PicturetoC_Hex_converter.php

The general steps are as follows:

1. Select the file to convert.

2. Code format: Select HEX: /x

3. Display position: X 0 Y 0　(leave the default settings).

4. Resize to Width: 32 Height: 32 (enter the desired output size here).

5. Used for: Black/White, for "DIM"

6. Address in Flash: 0 (leave the default settings).

7. Click the "Get C String" button to convert the image.

8. The image will be converted to the "Image Data:" window, so you can copy and paste it into your program.

DF PLAYER

Information about DFPlayer can be found at the link below:

https://wiki.dfrobot.com/DFPlayer_Mini_SKU_DFR0299

Speaker

I use these speakers for electronic projects.

If you're interested, try searching for model number: MSI28-12R.

Key specifications are as follows:

・Impedance: 8Ω

・Rated Output: 1W

・Maximum Input: 2W

Audio Data

The software used is VOICE BOX.

The character used is 四国めたん(Shikoku Metan).

https://voicevox.hiroshiba.jp/

The audio files are stored on the microSD card as shown below.

The audio file combinations are as follows:

RGB LED

It uses a typical RGB LED, which has four pins (R, G, B, GND).

RGB LED Colors Setting

The RGB LED uses 12 colors and is set for each hour as follows:

Firmware Settings

The general steps are as follows:

1. Please download the firmware from the link below.

[Note] The file type is bin.

https://micropython.org/download/ESP32_GENERIC_S3/

2. After connecting the M5Stack Stamp S3 to your PC, press and hold the button.

3. Launch Terminal, or if you're using Windows, launch Command Prompt.

4. If esptool is not installed on your PC, install it with the following command:

pip install esptool

5. Erase the flash memory with the following command:

esptool --chip esp32s3 --port <port number> erase_flash

6. Install the new firmware using the following method:

esptool --chip esp32s3 --port <port number> write_flash -z 0 <bin file path + bin file name>

Chassis

The case is made of cardboard.

Development View

Before Assembly

After Assembly

Movie

Code

Main Program

import network
import ntptime
from machine import Pin, PWM, UART, I2C
from ssd1306 import SSD1306_I2C
import framebuf
import time

#-----wifi------

ssid = 'Wifi ID'
Password = 'Wifi Password'

#Wifi connection
wlan = network.WLAN(network.STA_IF)
wlan.active(True)
wlan.connect(ssid,Password)

while not wlan.isconnected() and wlan.status() >= 0:
    print("waiting to connect:")
    time.sleep(1)

#print(wlan.ifconfig())

#-----NTC------

#Get date and time
UTC_offset = 9 * 60 * 60
day_week = ("Mon","Tue","Wed", "Thu", "Fri", "Sat", "Sun")
ntptime.settime()

#-----OLED-----

#Image
#https://icooon-mono.com/12766-%ef%bd%92abbit-icon-1/?lang=en
picture = bytearray(b'\x03\x07\x00\x00\x07\x8f\x00\x00\x07\x9f\x00\x00\x07\xdf\x00\x00\x07\xff\x00\x00\x07\xff\x00\x00\x07\xfe\x00\x00\x03\xfe\x00\x00\x03\xfc\x00\x00\x07\xfc\x00\x00\x0f\xfc\x00\x00\x1f\xfc\x00\x00\x1f\xfe\x00\x00\x3f\xff\x00\x00\x3f\xff\xc0\x00\x3f\xff\xf0\x00\x3f\xff\xfe\x00\x1f\xff\xff\x00\x07\xff\xff\x80\x03\xff\xff\xc0\x01\xff\xff\xe0\x01\xff\xff\xe0\x00\xff\xff\xf0\x00\xff\xff\xf0\x00\xff\xff\xf0\x00\xff\xff\xf0\x00\xff\xff\xf8\x00\xff\xff\xfc\x01\xff\xff\xfc\x01\xf1\xff\xf8\x01\xf7\xff\xb0\x01\xf7\xff\x80')

#OLED
WIDTH  = 128
HEIGHT = 64
i2c = I2C(0,scl=Pin(13), sda=Pin(15), freq=200000)
oled = SSD1306_I2C(WIDTH, HEIGHT, i2c)

#Image display
image = picture
fb = framebuf.FrameBuffer(image, 32, 32, framebuf.MONO_HLSB)  #Image size 32X32

#-----DF_Player------

uart = UART(1,baudrate=9600,tx = Pin(43),rx = Pin(44))

def Play(num):
    # Creating serial data
    onsei = bytearray([0x7E,0xFF,0x06,0x03,0x00,0x00,num,0xEF])
    # Transmitting serial data
    uart.write(onsei)

#-----RGB------

pwm0 = PWM(Pin(1),10000)
pwm1 = PWM(Pin(4),10000)
pwm2 = PWM(Pin(2),10000)

pwm3 = PWM(Pin(6),10000)
pwm4 = PWM(Pin(11),10000)
pwm5 = PWM(Pin(5),10000)

#define a function to set the color of RGBLED.
#Color Code:https://itsakura.com/html-color-codes
#value:0-1023
def setColor1(r1, g1, b1):
    pwm0.duty(r1)
    pwm1.duty(g1)
    pwm2.duty(b1)

def setColor2(r2, g2, b2):
    pwm3.duty(r2)
    pwm4.duty(g2)
    pwm5.duty(b2)

def Off():
    setColor1(0, 0, 0)
    setColor2(0, 0, 0)

def Red():
    setColor1(1023, 0, 0)
    setColor2(1023, 0, 0)

def Green():
    setColor1(0, 1023, 0)
    setColor2(0, 1023, 0)

def Blue():
    setColor1(0, 0, 1023)
    setColor2(0, 0, 1023)

def Yellow():
    setColor1(1023, 1023, 0)
    setColor2(1023, 1023, 0)

def Orenge():
    setColor1(1023, 256, 0)
    setColor2(1023, 256, 0)

def Cyan():
    setColor1(0, 1023, 1023)
    setColor2(0, 1023, 1023)

def Aquamarine():
    setColor1(128, 1023, 256)
    setColor2(128, 1023, 256)

def LightGreen():
    setColor1(0, 1023, 128)
    setColor2(0, 1023, 128)

def Magenta():
    setColor1(1023, 0, 1023)
    setColor2(1023, 0, 1023)

def DeepPink():
    setColor1(1023, 128, 1023)
    setColor2(1023, 128, 1023)

def Pink():
    setColor1(1023, 256, 1023)
    setColor2(1023, 256, 1023)

def White():
    setColor1(1023, 1023, 1023)
    setColor2(1023, 1023, 1023)

#-----Code------

while True:

    local_date_time = time.localtime(time.time() + UTC_offset)
    local_year =  local_date_time[0]
    local_month = local_date_time[1]
    local_day = local_date_time[2]
    local_hour = local_date_time[3]
    local_minute = local_date_time[4]

    local_year_month_day = str('{:04d}'.format(local_year)) + "/" + str('{:02d}'.format(local_month)) + "/" + str('{:02d}'.format(local_day))
    local_day_week = "(" + day_week[local_date_time[6]] + ")"
    local_hour_minute = str('{:02d}'.format(local_hour)) + ":" + str('{:02d}'.format(local_minute))

    oled.fill(0)
    oled.blit(fb, 48, 0)
    oled.text(local_year_month_day + local_day_week ,0,40)
    oled.text(local_hour_minute,0,50)
    oled.show()

    if ( local_minute == 0 and local_hour == 1 ):
        Red()
        Play(0x01)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 2 ):
        Green()
        Play(0x02)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.7)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 3 ):
        Blue()
        Play(0x03)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 4 ):
        Yellow()
        Play(0x04)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.7)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 5 ):
        Orenge()
        Play(0x05)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.7)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 6 ):
        Cyan()
        Play(0x06)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 7 ):
        Aquamarine()
        Play(0x07)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 8 ):
        LightGreen()
        Play(0x08)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 9 ):
        Magenta()
        Play(0x09)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.7)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 10 ):
        DeepPink()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 11 ):
        Pink()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x01)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.8)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 12 ):
        White()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x02)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.1)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 13 ):
        Red()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x03)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.8)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 14 ):
        Green()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x04)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.1)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 15 ):
        Blue()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x05)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.1)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 16 ):
        Yellow()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x06)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.8)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 17 ):
        Orenge()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x07)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.8)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 18 ):
        Cyan()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x08)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.8)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 19 ):
        Aquamarine()
        Play(0x0b)
        time.sleep(0.6)
        Play(0x09)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(2.1)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 20 ):
        LightGreen()
        Play(0x0c)
        time.sleep(0.9)
        Play(0x0d)
        time.sleep(2.1)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 21 ):
        Magenta()
        Play(0x0c)
        time.sleep(0.9)
        Play(0x01)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.5)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 22 ):
        DeepPink()
        Play(0x0c)
        time.sleep(0.9)
        Play(0x02)
        time.sleep(0.3)
        Play(0x0d)
        time.sleep(1.8)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 23 ):
        Pink()
        Play(0x0c)
        time.sleep(0.9)
        Play(0x03)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(1.5)
        Off()
        time.sleep(57)
    elif ( local_minute == 0 and  local_hour == 0 ):
        White()
        Play(0x0a)
        time.sleep(0.6)
        Play(0x0d)
        time.sleep(2.4)
        Off()
        time.sleep(57)
    else:
        Off()
        time.sleep(60)
