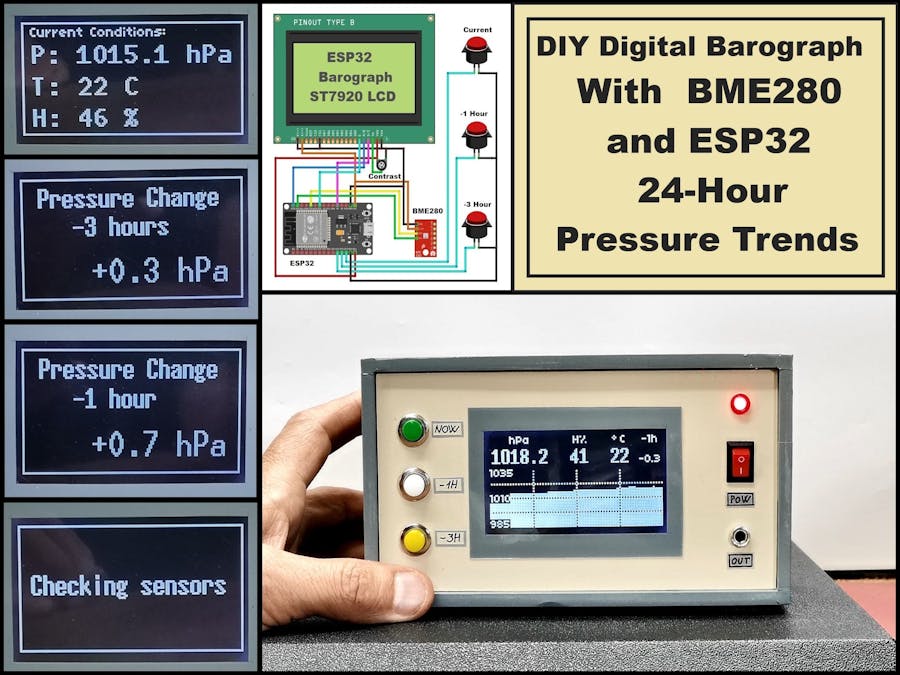

DIY Digital Barograph with BME280 and ESP32

/*
***Barometer/Barograph***
Components:
- ESP32 microcontroller (esp32 devkit v1)
- 128x64 LCD display
- BME280 pressure, temperature and humidity sensor

Features:
* Pressure change graph for the last 24 hours (measurement interval: 11 minutes 15 seconds)
* Temperature display
* Humidity display
* Pressure measurement history storage (to protect against graph reset during power loss)
* Ability to check all sensor readings
* Ability to adjust the pressure range displayed on screen (min and max)
*/

#include <U8g2lib.h>               // U8g2 library for graphical displays
#include <Wire.h>                  // Wire library for I2C
#include <Adafruit_Sensor.h>       // Common sensor library
#include <Adafruit_BME280.h>       // BME280 sensor library
#include <Preferences.h>           // For saving settings to memory (pressure array)
#include <EncButton.h>             // Button library by Gyver

#define BUFFER_SIZE 128            // Pressure buffer size
#define MIN_PRES 985              // Minimum pressure in hPa
#define PRESSURE_RANGE 50         // Pressure range in hPa (max = MIN_PRES + PRESSURE_RANGE)
#define ALTITUDE 700.0            // Set your location's altitude in meters here
#define EEPROM_MARKER 0xABCE      // Unique marker (for detecting first save)
#define BUTTON1_PIN 13
#define BUTTON2_PIN 12
#define BUTTON3_PIN 14
#define BUTTON_PIN 16 // Button pin
#define USE_MEMORY

// Use memory to store pressure array

Button b1(BUTTON1_PIN);
Button b2(BUTTON2_PIN);
Button b3(BUTTON3_PIN);

char pressureDiff1h[10];      // For -1h difference
char pressureDiff3h[10];      // For -3h difference

float hourlyPressureBuffer[6]; // Store actual pressure values for the last hour
int pressureBufferIndex = 0;
unsigned long lastPressureStoreTime = 0;


/*Required objects*/
Preferences preferences;                                                             // Object for working with persistent memory
class RingBuffer {                                                                   // Ring buffer object
  private:
    int buffer[BUFFER_SIZE];  // The buffer itself
    int head = 0;             // Pointer to data start
    int tail = 0;             // Pointer to data end
    bool full = false;        // Buffer full flag

  public:
    void push(int value) {
      value = constrain(value, 0, PRESSURE_RANGE);
      buffer[tail] = value;
      tail = (tail + 1) % BUFFER_SIZE;

      if (full) {
        head = (head + 1) % BUFFER_SIZE;  // Overwrite old data when full
      }

      full = (tail == head);
    }

  float getPressureValue(int index) {
    if (index >= size()) return -1;
    int pos = (head + index) % BUFFER_SIZE;
    return MIN_PRES + (float)buffer[pos] * PRESSURE_RANGE / PRESSURE_RANGE;
  }
    bool pop(int &value) {
      if (isEmpty()) return false;

      value = buffer[head];
      head = (head + 1) % BUFFER_SIZE;
      full = false;

      return true;
    }

    int peek(int index) {
      if (index >= size()) return -1;  // Check index validity

      int pos = (head + index) % BUFFER_SIZE;
      return buffer[pos];
    }

    bool isEmpty() {
      return (!full && (head == tail));
    }

    bool isFull() {
      return full;
    }

    int size() {
      if (full) return BUFFER_SIZE;
      if (tail >= head) return tail - head;
      return BUFFER_SIZE - head + tail;
    }

    void clear() {
      head = tail = 0;
      full = false;
    }

    void saveBufferToEEPROM() {
      preferences.begin("ring_buffer", false);  // Open memory area
      preferences.putUShort("marker", EEPROM_MARKER);
      preferences.putBytes("data", buffer, sizeof(buffer));
      preferences.putInt("head", head);
      preferences.putInt("tail", tail);
      preferences.putBool("full", full);
      preferences.end();  // Close memory area
    }

    void loadBufferFromEEPROM() {
      preferences.begin("ring_buffer", true);  // Open memory area in read mode
      if (preferences.getUShort("marker", 0) != EEPROM_MARKER) {
        clear();
        for (int i = 0; i < 128; i++) {                          // Fill buffer with maximum pressure if memory is empty
          push(PRESSURE_RANGE);
        }
      } else {
        if (preferences.isKey("data")) {
          preferences.getBytes("data", buffer, sizeof(buffer));
          head = preferences.getInt("head", 0);
          tail = preferences.getInt("tail", 0);
          full = preferences.getBool("full", false);
        }
      }
      preferences.end();  // Close memory area
    }
};

Button b(BUTTON_PIN);                                                                // Button on pin 13
RingBuffer ringBuffer;                                                               // Create ring buffer for pressure array
U8G2_ST7920_128X64_F_SW_SPI u8g2(U8G2_R0,/* SCLK = */18,/* MOSI = */23,/* CS = */4); // Display initialization via software SPI
Adafruit_BME280 bme;                                                                 // Object for working with BME280 sensor

/*Variables*/
uint32_t myTimer1, myTimer3;                                                         // Timer variables

char pressure[7],                                                                    // Strings for displaying data on screen
     pressureDiff[6],
     pres_scale_1[7],
     pres_scale_2[7],
     pres_scale_3[7],
     pressureDiffSign[2] = " ",
     temperature[6],
     humidity[6];

uint16_t varPress;
float varPressNorm;
uint8_t varTemp;
uint8_t varHum;
int varPressureDiff;

float getRelativePressure() {
  float absolute_pressure = bme.readPressure() / 100.0f; // Convert Pa to hPa
  return absolute_pressure * pow(1.0 - (ALTITUDE / 44330.0), -5.255);
}

void drawCurrentConditions() {
  u8g2.clearBuffer();
    u8g2.drawFrame(0,0,128,64);

  // Title with smaller font
  u8g2.setFont(u8g2_font_04b_03_tr);  // Smaller font for title
  u8g2.drawStr(5, 8, "Current Conditions:");

  // Values with large font
  u8g2.setFont(u8g2_font_9x18B_tf);  // Larger font for readings

  char tempStr[20];

  // Pressure
  sprintf(tempStr, "P: %.1f hPa", varPressNorm);
  u8g2.drawStr(5, 23, tempStr);

  // Temperature
  sprintf(tempStr, "T: %d C", varTemp);
  u8g2.drawStr(5, 41, tempStr);

  // Humidity
  sprintf(tempStr, "H: %d %%", varHum);
  u8g2.drawStr(5, 59, tempStr);

  u8g2.sendBuffer();
}

void firstScreen() {                                                                // Sensor check screen
  u8g2.clearBuffer();
   u8g2.drawFrame(0,0,128,64);
   u8g2.setFont(u8g2_font_7x14B_tf);
  u8g2.drawStr(7, 35, "Checking sensors");
   u8g2.sendBuffer();
  delay(2000);

  bool bme280_ok = bme.begin(0x76);

  if (bme280_ok) {
    varPressNorm = getRelativePressure();
    varTemp = round(bme.readTemperature());
    varHum = round(bme.readHumidity());
  }
  u8g2.clearBuffer();
  u8g2.drawFrame(0,0,128,64);
  u8g2.setFont(u8g2_font_7x14B_tf);
  u8g2.drawStr(30, 35, "BME280:");
  u8g2.drawStr(78, 35, bme280_ok ? "Ok" : "Err");
  u8g2.sendBuffer();
  delay(500);
  if (!bme280_ok) {
    while (1);                                                                      // Freeze if BME280 isn't working
  }
  delay(2000);
}

void drawScreen() {
    u8g2.clearBuffer();
    const char* errStr = "---";

    if ((varTemp > 100)||(varHum > 100)) {
        sprintf(pressure, "%s", errStr);
        sprintf(temperature, "%s", errStr);
        sprintf(humidity, "%s", errStr);
    } else {
        sprintf(pressure, "%.1f", varPressNorm);
        sprintf(temperature, "%d", varTemp);
        sprintf(humidity, "%d", varHum);
    }

    // Calculate pressure difference using the hourly buffer
    if (pressureBufferIndex >= 5) {  // We have enough readings
        float currentPressure = varPressNorm;
        float oldPressure = hourlyPressureBuffer[(pressureBufferIndex - 5) % 6];
        float pressureDiffFloat = currentPressure - oldPressure;

        if (fabs(pressureDiffFloat) < 0.1) {
            sprintf(pressureDiffSign, " ");
            sprintf(pressureDiff, "0.0");
        } else {
            if (pressureDiffFloat > 0) {
                sprintf(pressureDiffSign, "+");
            } else {
                sprintf(pressureDiffSign, "-");
            }
            sprintf(pressureDiff, "%.1f", fabs(pressureDiffFloat));
        }
    } else {
        sprintf(pressureDiffSign, " ");
        sprintf(pressureDiff, "---");
    }

  sprintf(pres_scale_3, "%d", MIN_PRES);
  sprintf(pres_scale_2, "%d", MIN_PRES + (PRESSURE_RANGE/2));
  sprintf(pres_scale_1, "%d", MIN_PRES + PRESSURE_RANGE);

  for (uint8_t i = 0; i < 128; i++) {                                               // Draw pressure graph (flip array and limit upper/lower bounds)
    uint8_t gr = ringBuffer.peek(i);

    //gr = map(gr, PRESSURE_RANGE, 0, 63, 23);  // Old version - inverted
    gr = map(gr, 0, PRESSURE_RANGE, 63, 23);  // New version - correct

    u8g2.drawBox(i, gr, 1, (64 - gr));
  }

  u8g2.setFont(u8g2_font_7x14B_tf);                                                 // Set font and display data (pressure, humidity, temperature)
  u8g2.drawStr(2, 19, pressure);
  u8g2.drawStr(60, 19, humidity);
  u8g2.drawStr(90, 19, temperature);

  u8g2.setFont(u8g2_font_04b_03_tr );                                               // Pressure change over 24 hours
  u8g2.drawStr(111, 19, pressureDiffSign);
  u8g2.drawStr(115, 19, pressureDiff);
  u8g2.drawStr(15, 5, "hPa        H%      C   -1h");
  u8g2.drawCircle(92, 1, 1);

  u8g2.setDrawColor(0);                                                             // Draw light areas for pressure scale numbers
  u8g2.drawBox(0, 58, 15, 6);
  u8g2.drawBox(0, 40, 15, 7);
  u8g2.drawBox(0, 23, 15, 6);

  u8g2.setDrawColor(1);                                                             // Draw pressure scale numbers
  u8g2.drawStr(0, 64, pres_scale_3);
  u8g2.drawStr(0, 46, pres_scale_2);
  u8g2.drawStr(0, 28, pres_scale_1);

  drawDashedLine(15, 43, 128);                                                      // Draw dashed lines
  drawDashedLine(1, 53, 128);
  drawDashedLine(1, 33, 128);

  drawVerticalDashedLine(32, 24, 64);
  drawVerticalDashedLine(64, 24, 64);
  drawVerticalDashedLine(96, 24, 64);

  u8g2.sendBuffer();
}

void drawDashedLine(uint8_t x_start, uint8_t y, uint8_t length) {                   // Draw horizontal line
  for (uint8_t i = x_start; i < length; i += 2) {
    u8g2.setDrawColor(1);                                                             // Dark pixel
    u8g2.drawPixel(i, y);
    u8g2.setDrawColor(0);                                                             // Light pixel
    u8g2.drawPixel(i + 1, y);
  }
  u8g2.setDrawColor(1);                                                               // Restore normal color for other elements
}

void drawVerticalDashedLine(uint8_t x, uint8_t y_start, uint8_t y_end) {            // Draw vertical line
  for (uint8_t i = y_start; i < y_end; i += 2) {
    u8g2.setDrawColor(1);                                                             // Dark pixel
    u8g2.drawPixel(x, i);
    u8g2.setDrawColor(0);                                                             // Light pixel
    u8g2.drawPixel(x, i + 1);
  }
  u8g2.setDrawColor(1);                                                               // Restore normal color
}

void getData() {                                                                    // Periodic sensor data reading during operation
  bme.begin(0x76);
  varPressNorm = getRelativePressure();                                            // Get relative pressure in hPa
  varTemp = round(bme.readTemperature());
  varHum = round(bme.readHumidity());
  varPressureDiff = ringBuffer.peek(0) - ringBuffer.peek(127);                      // Calculate pressure difference
  switch (varPressureDiff) {                                                        // Difference with + or - sign
    case -64 ... -1: sprintf(pressureDiffSign, "-");  break;
    case 0: sprintf(pressureDiffSign, " ");  break;
    case 1 ... 64: sprintf(pressureDiffSign, "+");  break;
  }
}

void resetBuffer() {
  float initialPressure = getRelativePressure();
  int pressureForGraph = round(initialPressure - MIN_PRES);
  pressureForGraph = constrain(pressureForGraph, 0, PRESSURE_RANGE);

  for (int i = 0; i < 128; i++) {
    ringBuffer.push(pressureForGraph);  // Initialize all slots with current pressure
  }
}

void drawPressureDiffScreen1h() {
  u8g2.clearBuffer();
  u8g2.drawFrame(0,0,128,64);

  // Title
  u8g2.setFont(u8g2_font_7x14B_tf);
  u8g2.drawStr(10, 15, "Pressure Change");
  u8g2.drawStr(30, 30, "-1 hour");

  // Value in large font
  u8g2.setFont(u8g2_font_10x20_tf);
  if (pressureBufferIndex >= 5) {  // We have enough readings for -1h
    float currentPressure = varPressNorm;
    float oldPressure = hourlyPressureBuffer[(pressureBufferIndex - 5) % 6];
    float pressureDiffFloat = currentPressure - oldPressure;

    char sign[2] = " ";
    char value[10];

    if (fabs(pressureDiffFloat) < 0.1) {
      sprintf(sign, " ");
      sprintf(value, "0.0");
    } else {
      if (pressureDiffFloat > 0) {
        sprintf(sign, "+");
      } else {
        sprintf(sign, "-");
      }
      sprintf(value, "%.1f", fabs(pressureDiffFloat));
    }

    u8g2.drawStr(20, 55, sign);
    u8g2.drawStr(30, 55, value);
    u8g2.drawStr(70, 55, "hPa");
  } else {
    u8g2.drawStr(50, 55, "N/A");
  }

  u8g2.sendBuffer();
}

void drawPressureDiffScreen3h() {
  u8g2.clearBuffer();

   u8g2.drawFrame(0,0,128,64);

  // Title
  u8g2.setFont(u8g2_font_7x14B_tf);
  u8g2.drawStr(10, 15, "Pressure Change");
  u8g2.drawStr(30, 30, "-3 hours");

  // Calculate 3-hour difference
  if (pressureBufferIndex >= 15) {  // We need at least 15 readings (3 hours)
    float currentPressure = varPressNorm;
    float oldPressure = hourlyPressureBuffer[(pressureBufferIndex - 15) % 6];
    float pressureDiffFloat = currentPressure - oldPressure;

    char sign[2] = " ";
    char value[10];

    if (fabs(pressureDiffFloat) < 0.1) {
      sprintf(sign, " ");
      sprintf(value, "0.0");
    } else {
      if (pressureDiffFloat > 0) {
        sprintf(sign, "+");
      } else {
        sprintf(sign, "-");
      }
      sprintf(value, "%.1f", fabs(pressureDiffFloat));
    }

    // Value in large font
    u8g2.setFont(u8g2_font_10x20_tf);
    u8g2.drawStr(20, 55, sign);
    u8g2.drawStr(30, 55, value);
    u8g2.drawStr(70, 55, "hPa");
  } else {
    u8g2.setFont(u8g2_font_10x20_tf);
    u8g2.drawStr(50, 55, "N/A");
  }

  u8g2.sendBuffer();
}
void setup() {
  pinMode(BUTTON1_PIN, INPUT_PULLUP);
  pinMode(BUTTON2_PIN, INPUT_PULLUP);
  pinMode(BUTTON3_PIN, INPUT_PULLUP);

  Wire.begin();
  u8g2.begin();
  delay(20);

  resetBuffer();                                                                     // Clear pressure buffer

  firstScreen(); // Check sensors before startup

      float initialPressure = getRelativePressure();
    for (int i = 0; i < 6; i++) {
        hourlyPressureBuffer[i] = initialPressure;
    }

#ifdef USE_MEMORY                                                                    // If using persistent memory
  ringBuffer.loadBufferFromEEPROM();                                                 // Restore data from memory

  if (!(digitalRead(BUTTON_PIN))) {                                                  // If button is pressed, reset pressure array
    resetBuffer();
    ringBuffer.saveBufferToEEPROM();                                                 // Save data to memory
    u8g2.clearBuffer();
    u8g2.setFont(u8g2_font_7x14B_tf);
    u8g2.drawStr(23, 19, "Buffer Reset");                                            // Report success
    u8g2.sendBuffer();
    delay(2000);
  }
#endif
}

void loop() {
    b1.tick();
    b2.tick();
    b3.tick();

    static bool showingCurrentConditions = false;
    static bool showingDiff1h = false;
    static bool showingDiff3h = false;

    if (b1.click()) {
        showingCurrentConditions = !showingCurrentConditions;
        showingDiff1h = false;
        showingDiff3h = false;
        getData();
    }

    if (b2.click()) {
        showingDiff1h = !showingDiff1h;
        showingCurrentConditions = false;
        showingDiff3h = false;
        getData();
    }

    if (b3.click()) {
        showingDiff3h = !showingDiff3h;
        showingCurrentConditions = false;
        showingDiff1h = false;
        getData();
    }

    if (showingCurrentConditions) {
        drawCurrentConditions();
    } else if (showingDiff1h) {
        drawPressureDiffScreen1h();
    } else if (showingDiff3h) {
        drawPressureDiffScreen3h();
    } else {
        drawScreen();
    }

    // Store pressure readings every 11.25 minutes
    if (millis() - myTimer1 >= 675000) {
        myTimer1 = millis();
        float relPressure = getRelativePressure();
        varPressNorm = relPressure;

        // Store actual pressure value in hourly buffer
        hourlyPressureBuffer[pressureBufferIndex % 6] = relPressure;
        pressureBufferIndex++;

        // Store mapped value for graph
        int pressureForGraph = round(relPressure - MIN_PRES);
        pressureForGraph = constrain(pressureForGraph, 0, PRESSURE_RANGE);
        ringBuffer.push(pressureForGraph);
    }

    if (millis() - myTimer3 >= 3600000) {
        myTimer3 = millis();
#ifdef USE_MEMORY
        ringBuffer.saveBufferToEEPROM();
#endif
    }
}
