Running man animation

On this 8x8 piece, using the code, an animation of a running humanoid in a circle, entering from the right and exiting from the left at a me

BeginnerProtip1 hour97

Things used in this project

Hardware components

LED Dot Matrix Display, Red

Arduino Nano R3

USB-A to Mini-USB Cable

Jumper wires (generic)

Software apps and online services

Arduino IDE

Story

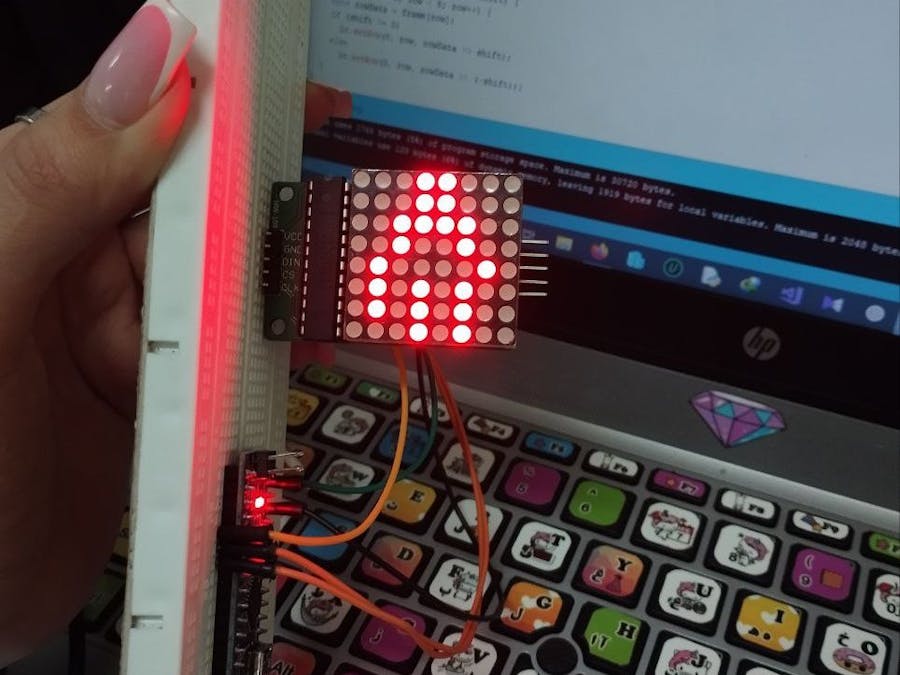

With the help of the LED Dot Matrix 8x8 module with MAX7219 Driver and using the code, an animation of a man running in a circle that enters from the right and exits from the left at a medium speed.

Running man animation

#include <LedControl.h>

// : DIN = D2, CLK = D4, CS = D3
LedControl lc = LedControl(2, 4, 3, 1);

byte runner1[8] = {
  B00011000,
  B00011000,
  B00111100,
  B00100100,
  B01000010,
  B01010100,
  B01010100,
  B00101000
};

byte runner2[8] = {
  B00011000,
  B00011000,
  B00111100,
  B00011000,
  B01010100,
  B01001000,
  B00101000,
  B00101000
};

byte runner3[8] = {
  B00011000,
  B00011000,
  B00111100,
  B00011000,
  B01000010,
  B00101000,
  B01010100,
  B00101000
};

byte runner4[8] = {
  B00011000,
  B00011000,
  B00111100,
  B00100100,
  B01000010,
  B01010100,
  B01010100,
  B00010100
};

void drawShifted(byte* frame, int shift);

void setup() {
  lc.shutdown(0, false);
  lc.setIntensity(0, 8);
  lc.clearDisplay(0);
}

void loop() {
  for (int shift = 8; shift >= -8; shift--) {
    drawShifted(runner1, shift);
    delay(150);
    drawShifted(runner2, shift);
    delay(150);
    drawShifted(runner3, shift);
    delay(150);
    drawShifted(runner4, shift);
    delay(150);
  }
}

void drawShifted(byte* frame, int shift) {
  for (int row = 0; row < 8; row++) {
    byte rowData = frame[row];
    if (shift >= 0)
      lc.setRow(0, row, rowData >> shift);
    else
      lc.setRow(0, row, rowData << (-shift));
  }
}
