How to Make Gesture Control Robot || #MadeWithArduino

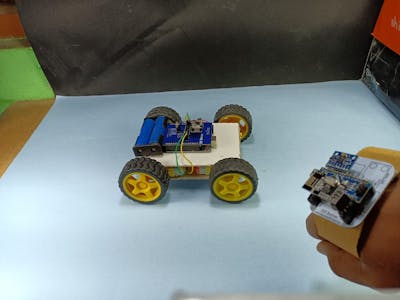

This is a Gesture Control Car that tracks our hand gestures and performs the same task. Like when we move our hand left, the car moves left.

IntermediateFull instructions provided554
How to Make Gesture Control Robot || #MadeWithArduino

Things used in this project

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Arduino Gesture control Transmitter Circuit

Arduino Gesture control Receiver Circuit

Code

Arduino Gesture control Transmitter Code

C/C++
//Arduino Gesture control Transmitter Code
//Created By DIY Burner
//Contact me here "https://www.instagram.com/diy_burner/"
//You need to include MPU6050.h and I2CDEV.h library before uploading the sketch, otherwise you'll get compilation error message.

#include <SPI.h>        //SPI library for communicate with the nRF24L01+
#include "RF24.h"       //The main library of the nRF24L01+
#include "Wire.h"       //For communicate
#include "I2Cdev.h"     //For communicate with MPU6050
#include "MPU6050.h"    //The main library of the MPU6050


MPU6050 mpu;
int16_t ax, ay, az;
int16_t gx, gy, gz;

//Define packet for the direction (X axis and Y axis)
int data[2];

//Define object from RF24 library - 9 and 10 are a digital pin numbers to which signals CE and CSN are connected.
RF24 radio(8,9);

//Create a pipe addresses for the communicate
const uint64_t pipe = 0xE8E8F0F0E1LL;

void setup(void){
  Serial.begin(9600);
  Wire.begin();
  mpu.initialize();              //Initialize the MPU object
  radio.begin();                 //Start the nRF24 communicate
  radio.openWritingPipe(pipe);   //Sets the address of the receiver to which the program will send data.
}

void loop(void){

  //With this function, the acceleration and gyro values of the axes are taken.
  //If you want to control the car axis differently, you can change the axis name in the map command.
  mpu.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);

  //In two-way control, the X axis (data [0]) of the MPU6050 allows the robot to move forward and backward.
  //Y axis (data [0]) allows the robot to right and left turn.
  data[0] = map(ax, -17000, 17000, 300, 400 ); //Send X axis data
  data[1] = map(ay, -17000, 17000, 100, 200);  //Send Y axis data
  radio.write(data, sizeof(data));
}

Arduino Gesture control Receiver Code

C/C++
//Arduino Gesture control Receiver Code
//Created By DIY Burner
//Contact me here https://www.instagram.com/diy_burner/
//You need to include RF24.h library before uploading the sketch, otherwise you'll get compilation error message.

#include <SPI.h>      //SPI library for communicate with the nRF24L01+
#include "RF24.h"     //The main library of the nRF24L01+

//Define enable pins of the Motors
const int enbA = 2;
const int enbB = 7;

//Define control pins of the Motors
//If the motors rotate in the opposite direction, you can change the positions of the following pin numbers
const int IN1 = 3;    //Right Motor (-)
const int IN2 = 4;    //Right Motor (+)
const int IN3 = 5;    //Left Motor (+)
const int IN4 = 6;    //Right Motor (-)

//Define variable for the motors speeds
//I have defined a variable for each of the two motors
//This way you can synchronize the rotation speed difference between the two motors
int RightSpd = 130;
int LeftSpd = 150;

//Define packet for the direction (X axis and Y axis)
int data[2];

//Define object from RF24 library - 9 and 10 are a digital pin numbers to which signals CE and CSN are connected
RF24 radio(8,9);

//Create a pipe addresses for the communicate
const uint64_t pipe = 0xE8E8F0F0E1LL;

void setup(){
  //Define the motor pins as OUTPUT
  pinMode(enbA, OUTPUT);
  pinMode(enbB, OUTPUT);
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);

  Serial.begin(9600);
  radio.begin();                    //Start the nRF24 communicate
  radio.openReadingPipe(1, pipe);   //Sets the address of the transmitter to which the program will receive data.
  radio.startListening();
  }

void loop(){
  if (radio.available()){
    radio.read(data, sizeof(data));

    if(data[0] > 380){
      //forward
      analogWrite(enbA, RightSpd);
      analogWrite(enbB, LeftSpd);
      digitalWrite(IN1, HIGH);
      digitalWrite(IN2, LOW);
      digitalWrite(IN3, HIGH);
      digitalWrite(IN4, LOW);
    }

    if(data[0] < 310){
      //backward
      analogWrite(enbA, RightSpd);
      analogWrite(enbB, LeftSpd);
      digitalWrite(IN1, LOW);
      digitalWrite(IN2, HIGH);
      digitalWrite(IN3, LOW);
      digitalWrite(IN4, HIGH);
    }

    if(data[1] > 180){
      //left
      analogWrite(enbA, RightSpd);
      analogWrite(enbB, LeftSpd);
      digitalWrite(IN1, HIGH);
      digitalWrite(IN2, LOW);
      digitalWrite(IN3, LOW);
      digitalWrite(IN4, HIGH);
    }

    if(data[1] < 110){
      //right
      analogWrite(enbA, RightSpd);
      analogWrite(enbB, LeftSpd);
      digitalWrite(IN1, LOW);
      digitalWrite(IN2, HIGH);
      digitalWrite(IN3, HIGH);
      digitalWrite(IN4, LOW);
    }

    if(data[0] > 330 && data[0] < 360 && data[1] > 130 && data[1] < 160){
      //stop car
      analogWrite(enbA, 0);
      analogWrite(enbB, 0);
    }
  }
}
