Published January 21, 2020 © GPL3+

Industrial Gas Leakage Monitor

This is a system that will alert in case of gas leakage in a manufacturing plant.

IntermediateFull instructions provided711

Things used in this project

Hardware components

Bolt IoT Bolt WiFi Module

MQ-135 Gas Sensor

Jumper wires (generic)

Software apps and online services

Bolt IoT Bolt Cloud

Story

Since lot of processes in the factories and manufacturing plants are automated and becoming more and more complex, there is a need for a robust fault finding, sensing and alarming system that will enable the authorities to manage the plant efficiently and act promptly in case of an anomaly to prevent any further mishaps. In this project we will build such system based on Bolt Wi-Fi module that will notify the concerned person on Telegram in case of a gas leak. Alternatively, we can make minor modifications in the code so that it can act as pollution monitoring system.

Step 1 : Hardware Setup

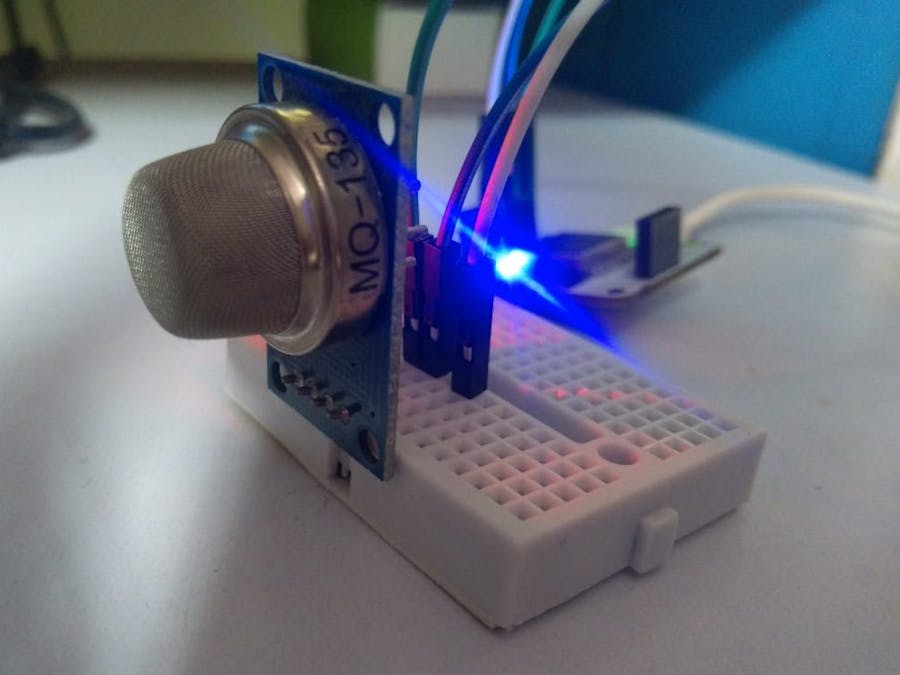

1 / 2 • Hardware Connections Schematic

Make the hardware setup as shown in the above images.

Step 2 : Setting Up Product in Bolt Cloud (Optional)

If you want to use your system as pollution monitor, then we need to get the threshold values of our sensor by observing what would be the range of values under normal conditions. For this, we need to setup a product as shown below.

1 / 3 • Creating a Product on Bolt Cloud

After following the above images, we need to save the product by clicking on save button. Then, we need to link our device with the product.

Linking Device with the Product

Now, after making all the connections, switch on the Bolt module. The device status should show online. Now click on small monitor symbol 'view this device' button. A graph of recorded values will be shown. Keep recording the values for about an hour or two. The graph should look something like this. Also, by pressing the predict button, we can predict the future values based on past values. This is machine learning feature enabled on the Bolt Cloud.

1 / 2 • Graph of recorded values for over two hours

As it is seen from the graph, the values usually range from 400 to 650. We thus choose our threshold at 750 or 800 and write a python program to alert the user whenever this threshold is crossed.

Step 3 : Writing Python Program for Gas Leak Sensor

Making the same hardware connections as in Step 1, we open up an Ubuntu Server Terminal as a Digital Ocean Droplet or by using VirtualBox.

After logging into the server, we create our project directory:

mkdir gas_sensor

We enter the directory by typing:

cd gas_sensor

We then make a configuration file 'conf.py' in which we will store our Bolt Device ID and API key.

sudo nano conf.py

Also, since we will be using Telegram to receive notifications, we enter Channel ID and Bot ID in this file as well. Here, we are going to use Z-score analysis so that our thresholds are changing dynamically as per the data. Thus, we also include 'frame size' and 'multiplication factor'.

bolt_api_key = "XXXX"              # This is your Bolt Cloud API Key
device_id = "XXXX"                 # This is the device ID
telegram_chat_id = "@XXXX"         # This is Channel ID. Paste after @
telegram_bot_id = "botXXXX"        # This is the telegram bot ID

FRAME_SIZE = 15                    # No. of previous values needed to decide Z-score
MUL_FACTOR = 10                    # Decides how far threshold will be from the data

Now we will save this file by pressing 'Ctrl+x' then 'y' (yes) to confirm and then 'Enter'.

Now, we will create another file called 'gas_sensor.py'

sudo nano gas_sensor.py

Type in the python code as given in the 'Code Section'

Save the above file and then run it using following command

sudo python3 gas_sensor.py

The output when the above code is run is as follows:

The thresholds are not calculated until the 15th value of the sensor reading is received since we have set the frame size to 15. After receiving all the 15 values, upper and lower bounds are calculated. However, in case of detecting gas leak, we are interested only in the upper bound.

Spraying to emulate gas leak

Now, to emulate gas leak, we use body spray. Hold the spray canister at some distance from the sensor and spray it. The alert will be sent to your Telegram Channel.

Conclusion

So, there you have it. This sensor project has many applications, two of which we have already discussed. This system can also be used as a breath analyzer where rather than using Telegram, we can attach a simple buzzer to one of the digital pins of the Bolt Module which will go off once the set threshold is crossed.

Please share your thoughts on this project.

Python code for Gas Sensor

import requests,json,math,statistics
from boltiot import Bolt
import conf

mybolt = Bolt(conf.bolt_api_key, conf.device_id)
history_data=[]


def compute_bounds(history_data,frame_size,factor):
  if len(history_data)<frame_size :
    return None
  if len(history_data)>frame_size :
    del history_data[0:len(history_data)-frame_size]
    Mn=statistics.mean(history_data)
    Variance=0
    for data in history_data :
    Variance += math.pow((data-Mn),2)
    Zn = factor * math.sqrt(Variance / frame_size)
    High_bound = history_data[frame_size-1]+Zn
    Low_bound = history_data[frame_size-1]-Zn
    return [High_bound,Low_bound]


def get_sensor_value_from_pin(pin):
  """Returns the sensor value. Returns -999 if request fails"""
  try:
    response = mybolt.analogRead(pin)
    data = json.loads(response)
    if data["success"] != 1:
      print("Request not successfull")
      print("This is the response->", data)
      return -999
      sensor_value = int(data["value"])
      return sensor_value
  except Exception as e:
    print("Something went wrong when returning the sensor value")
    print(e)
    return -999


def send_telegram_message(message):
  """Sends message via Telegram"""
  url = "https://api.telegram.org/" + conf.telegram_bot_id + "/sendMessage"
  data = {
  "chat_id": conf.telegram_chat_id,
  "text": message
  }
  try:
    response = requests.request("POST",url,params=data)
    print("This is the Telegram URL")
    print(url)
    print("This is the Telegram response")
    print(response.text)
    telegram_data = json.loads(response.text)
    return telegram_data["ok"]
  except Exception as e:
    print("An error occurred in sending the alert message via Telegram")
    print(e)
    return False


while True:
  sensor_value = get_sensor_value_from_pin("A0")
  print("The current sensor value is:", sensor_value)
  if sensor_value == -999:
    print("Request was unsuccessfull. Skipping.")
    time.sleep(10)
    continue

  bound = compute_bounds(history_data,conf.FRAME_SIZE,conf.MUL_FACTOR)
  if not bound:
    required_data_count=conf.FRAME_SIZE-len(history_data)
    print("Not enough data to compute Z-score. Need",required_data_count," \more data points")
    history_data.append(sensor_value)
    time.sleep(10)
    continue

  try:
    if sensor_value > bound[0] :
      print ("There’s sudden rise in temp")
      telegram_status = send_telegram_message("Alert!! There’s sudden rise in\ the sensor reading, check for gas leak. Current sensor reading is:"  + str\(sensor_value))
      print("This is the response ",response)
      history_data.append(sensor_value);


  except Exception as e:
    print ("Error",e)


time.sleep(10)
