Industrial IoT Gateway (Field-to-Cloud) Using Dual-Port SP23

Overview

Industrial IoT (IIoT) Gateway is a critical component in modern automation and telemetry systems. This article demonstrates how to build a Field-to-Cloud Gateway using the dual-Ethernet SP2302, with:

• eth0 for cloud connectivity (Internet-facing)
• eth1 for Modbus TCP data collection (W5500 via SPI)

This physical and logical separation enhances security, performance, and fault isolation — making it ideal for manufacturing, energy, and infrastructure applications.

Why Use Dual-Port SP2302?

In many industrial environments, Modbus controllers, PLCs, and legacy field devices are built for local, deterministic communication and have no native support for IoT protocols, cloud APIs, or secure Internet access. These devices are often critical to operations but lack the capability to communicate beyond their local network.

This is where the dual-port SP2302 becomes invaluable.

By integrating a W5500-based Ethernet port (eth1) via SPI alongside the SP2302’s native Ethernet (eth0), you can safely isolate and connect local-only machines to the cloud — without compromising network security or device integrity.

This architecture allowseth1to interface with local Modbus TCP devices, PLCs, or proprietary machine controllers, while eth0 manages communication with cloud services like Adafruit IO, AWS IoT, or private MQTT brokers.

Here’s how the dual-port configuration supports this secure and efficient data bridge:

With this setup, devices that were never designed for the Internet — like PLCs and Modbus sensors — can now participate in modern IoT platforms. The SP2302 ensures that all communication is stable, secure, and structured, acting as a translation and transport layer between industrial equipment and scalable cloud infrastructure.

The field-to-cloud gateway architecture is not only practical but also essential for evolving legacy operations into connected, intelligent systems without requiring expensive retrofitting or risking security exposure.

System Architecture

Roles for Each Ethernet Port

System Diagram

Setup Instructions

1. Prepare the Hardware

• Connect WIZ850io to SP2302 via SPI

Assign IPs:

• eth0: via DHCP or static (e.g., 192.168.1.50)
• eth1: static (e.g., 192.168.2.50) for talking to local Modbus devices
• Assign IPs:eth0: via DHCP or static (e.g., 192.168.1.50)eth1: static (e.g., 192.168.2.50) for talking to local Modbus devices

2. Configure Netplan

yaml
network:  version: 2  ethernets:    eth0:      dhcp4: true    eth1:      dhcp4: false      addresses: [192.168.2.50/24]
bash


複製編輯
sudo netplan apply

Demo: Modbus TCP to MQTT Gateway (Field-to-Cloud)

This example reads a simulated Modbus register from a device on `eth1`, and sends it to **Adafruit IO** using MQTT over `eth0`.

Install Required Packages

bash

pip3 install pymodbus paho-mqtt

Python Demo Code

python
# iot_gateway_demo.py

import time
import paho.mqtt.client as mqtt
from pymodbus.client.sync import ModbusTcpClient

# --- Modbus TCP Config (eth1 interface) ---
MODBUS_IP = '192.168.2.100'
MODBUS_PORT = 502
UNIT_ID = 1

# --- Adafruit IO MQTT Config (eth0 interface) ---
AIO_USER = 'your_adafruit_username'
AIO_KEY = 'your_aio_key'
AIO_FEED = 'sensor1'
BROKER = 'io.adafruit.com'
TOPIC = f"{AIO_USER}/feeds/{AIO_FEED}"
ETH0_IP = '192.168.1.50'  # Bind MQTT to this IP

# Setup MQTT
mqtt_client = mqtt.Client()
mqtt_client.username_pw_set(AIO_USER, AIO_KEY)
mqtt_client.bind_address = ETH0_IP
mqtt_client.connect(BROKER, 1883, 60)
mqtt_client.loop_start()

def read_modbus():    client = ModbusTcpClient(MODBUS_IP, port=MODBUS_PORT)    if not client.connect():        print("[X] Modbus connect failed")        return None    result = client.read_holding_registers(0, 1, unit=UNIT_ID)    client.close()    if not result.isError():        return result.registers[0]    return None

def main():    print("[✓] Gateway running (Modbus ➜ MQTT)")    while True:        val = read_modbus()        if val is not None:            mqtt_client.publish(TOPIC, val)            print(f"[>] Published to cloud: {val}")        time.sleep(5)

if __name__ == "__main__":    main()

Test Scenario

• SP2302 talks to a Modbus TCP device at 192.168.2.100 via eth1
• Data is read every 5 seconds
• Value is sent to Adafruit IO over eth0 via MQTT

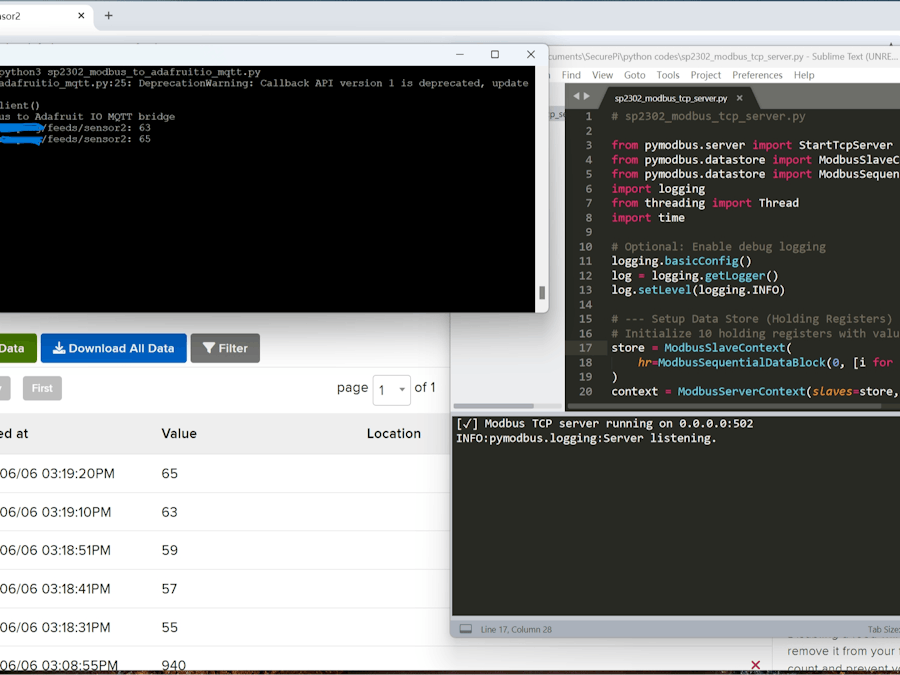

Result

Bonus: Secure Routing

Use firewall rules to isolate eth0 and eth1 traffic:

bashsudo ufw allow out on eth0
sudo ufw allow in on eth1 from 192.168.2.0/24

Summary

This setup enables reliable and secure field-to-cloud communication, with full control over each Ethernet path and data flow.
