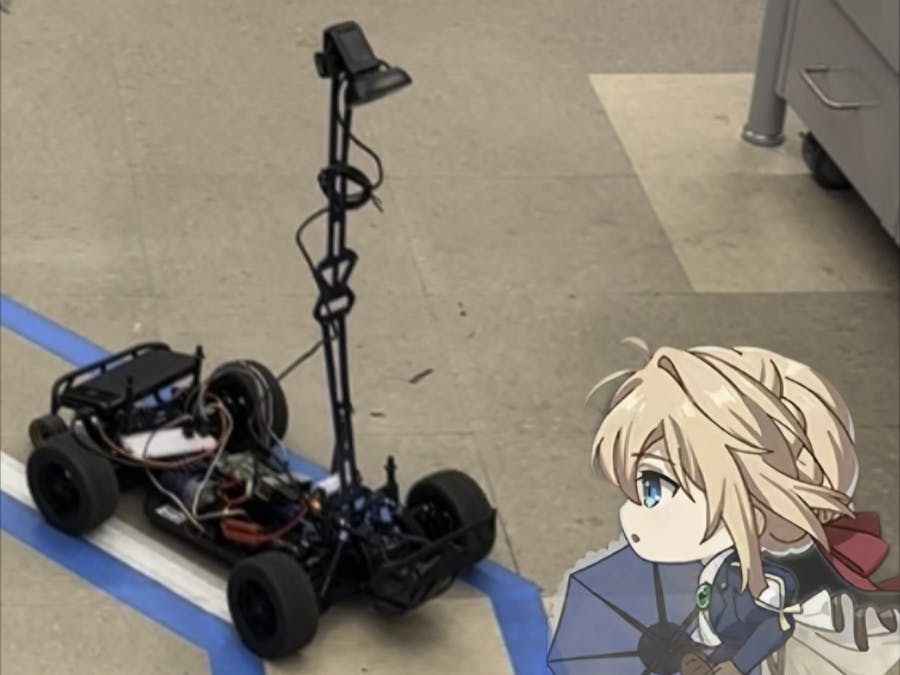

An autonomous RC car that follows lanes and stops at red markers using uses computer vision and real-time speed feedback.

IntermediateShowcase (no instructions)160
Violet Drive

Things used in this project

Hardware components

Raspberry Pi 4 Model B
Raspberry Pi 4 Model B
×1
Webcam, Logitech® HD Pro
Webcam, Logitech® HD Pro
×1
Portable Charger
×1
Optical Speed Encode
×1

Software apps and online services

OpenCV
OpenCV

Story

Read more

Code

ELEC553_final.py

Python
# Import required libraries
import cv2                      # For image processing
import numpy as np              # For numerical operations (arrays, masks, etc.)
import math                     # For trigonometric calculations
import RPi.GPIO as GPIO         # To interface with Raspberry Pi GPIO
import time                     # For timing operations like delays
import threading                # To run speed monitoring in parallel
import os                       # For checking and accessing file system paths

# Define GPIO pin assignments for steering, drive motor, and speed sensor
STEERING_PIN = 19               # GPIO pin controlling the steering servo
DRIVE_PIN = 18                  # GPIO pin for motor speed (hardware PWM)
SPEED_SENSOR_PIN = 17           # Input pin from wheel encoder (hall effect)

# Initialize GPIO pin modes and PWM control
GPIO.setmode(GPIO.BCM)                         # Use BCM pin numbering
#GPIO.setup(DRIVE_PIN, GPIO.OUT)
GPIO.setup(STEERING_PIN, GPIO.OUT)             # Steering pin set as output
GPIO.setup(SPEED_SENSOR_PIN, GPIO.IN)          # Speed sensor as input

#drive_pwm = GPIO.PWM(DRIVE_PIN, 50)
steering_pwm = GPIO.PWM(STEERING_PIN, 50)      # 50Hz PWM for steering servo
#drive_pwm.start(7.5)
steering_pwm.start(7.5)                        # Start at 7.5% duty (neutral steering)

# Setup for hardware PWM control via Linux sysfs interface
PWM_CHIP = "/sys/class/pwm/pwmchip0"           # Path to PWM chip
PWM_CHANNEL = f"{PWM_CHIP}/pwm0"               # Channel 0 under that chip

# If PWM channel is not yet exported (enabled), export it manually
if not os.path.exists(PWM_CHANNEL):
    with open(f"{PWM_CHIP}/export", 'w') as f:
        f.write("0")
    time.sleep(0.1)  # Give system time to create the path

# Set PWM frequency to 50Hz (i.e., 20,000,000 nanoseconds period)
with open(f"{PWM_CHANNEL}/period", 'w') as f:
    f.write("20000000")  # 20ms period for 50Hz

# Set initial duty cycle to 7.5% (corresponds to neutral throttle)
with open(f"{PWM_CHANNEL}/duty_cycle", 'w') as f:
    f.write(str(int(20000000 * 0.075)))  # 7.5% of 20ms = 1.5ms pulse width

# Enable the hardware PWM channel to begin sending signals
with open(f"{PWM_CHANNEL}/enable", 'w') as f:
    f.write("1")

# Initialize variables for wheel speed tracking
pulse_count = 0                  # Number of pulses received in current interval
current_rps = 0                  # Rotations per second, computed from pulses
target_rps = 2.3                 # Target RPS for cruise control
wheel_magnet_count = 20          # Pulses per wheel revolution

# Callback function for counting encoder pulses
def count_pulse(channel):
    global pulse_count
    pulse_count += 1             # Increment pulse count every falling edge

# Register the encoder pin to trigger count_pulse() on every falling edge
GPIO.add_event_detect(SPEED_SENSOR_PIN, GPIO.FALLING, callback=count_pulse)

# Background thread to compute real-time speed (RPS)
def speed_monitor():
    global pulse_count, current_rps
    while True:
        time.sleep(0.2)                              # Sample speed every 0.2s
        current_rps = pulse_count / wheel_magnet_count  # Compute RPS
        pulse_count = 0                              # Reset pulse count for next window

# Launch the speed monitor in a background thread
threading.Thread(target=speed_monitor, daemon=True).start()

# Convert input BGR image to HSV color space for easier color filtering
def convert_to_HSV(frame):
    return cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)

# Detect edges by filtering out blue lane lines, then applying Canny edge detection
def detect_edges(hsv):
    lower_blue = np.array([90, 120, 0], dtype=np.uint8)       # Lower HSV bound for blue
    upper_blue = np.array([150, 255, 255], dtype=np.uint8)    # Upper HSV bound for blue
    mask = cv2.inRange(hsv, lower_blue, upper_blue)           # Mask out only blue areas
    return cv2.Canny(mask, 50, 100)                            # Apply edge detection on mask

# Restrict detection area to lower part of image (road area) using a polygon mask
def region_of_interest(edges):
    height, width = edges.shape                               # Get image dimensions
    mask = np.zeros_like(edges)                               # Start with a black mask
    polygon = np.array([[(0, height), (0, height//1.2),       # Define a trapezoidal ROI
                         (width, height//1.2), (width, height)]], np.int32)
    cv2.fillPoly(mask, polygon, 255)                          # Fill ROI area with white
    return cv2.bitwise_and(edges, mask)                       # Keep only ROI part of edges

# Use Hough Transform to extract straight line segments from edge map
def detect_line_segments(cropped_edges):
    return cv2.HoughLinesP(
        cropped_edges, 1, np.pi / 180, 10, np.array([]),      # Angle resolution = 1, threshold = 10
        minLineLength=5, maxLineGap=0)                        # Keep small segments, no gap tolerance

# Average left and right lane lines based on slope and position
def average_slope_intercept(frame, line_segments):
    height, width, _ = frame.shape
    left_fit, right_fit = [], []                              # Store slope/intercepts separately

    if line_segments is None:                                 # If no lines found, return nothing
        return []

    for segment in line_segments:
        for x1, y1, x2, y2 in segment:
            if x1 == x2:                                      # Skip vertical lines (infinite slope)
                continue
            slope = (y2 - y1) / (x2 - x1)                      # Calculate slope
            intercept = y1 - slope * x1                       # Calculate y-intercept
            if slope < 0 and x1 < width * 2 / 3 and x2 < width * 2 / 3:
                left_fit.append((slope, intercept))           # Likely a left lane line
            elif slope >= 0 and x1 > width / 3 and x2 > width / 3:
                right_fit.append((slope, intercept))          # Likely a right lane line

    lane_lines = []
    if left_fit:
        lane_lines.append(make_points(frame, np.average(left_fit, axis=0)))   # Average left lines
    if right_fit:
        lane_lines.append(make_points(frame, np.average(right_fit, axis=0)))  # Average right lines
    return lane_lines

# Convert line slope and intercept into actual pixel coordinates to draw
def make_points(frame, line):
    slope, intercept = line
    height, width, _ = frame.shape
    y1 = height                                               # Bottom of the image
    y2 = int(height / 2)                                      # Middle of the image
    if slope == 0:
        slope = 0.1                                           # Avoid division by zero
    x1 = int((y1 - intercept) / slope)                        # Calculate x for y1
    x2 = int((y2 - intercept) / slope)                        # Calculate x for y2
    return [[x1, y1, x2, y2]]

# Draw detected lane lines on the image
def display_lines(frame, lines, color=(0, 255, 0), width=6):
    line_image = np.zeros_like(frame)                         # Blank image to draw on
    if lines:
        for x1, y1, x2, y2 in [line[0] for line in lines]:
            cv2.line(line_image, (x1, y1), (x2, y2), color, width)  # Draw each line
    return cv2.addWeighted(frame, 0.8, line_image, 1, 1)      # Overlay lines on original frame


# Compute the steering angle based on lane line positions
def get_steering_angle(frame, lane_lines):
    height, width, _ = frame.shape
    if len(lane_lines) == 2:
        _, _, lx2, _ = lane_lines[0][0]                       # x2 of left lane
        _, _, rx2, _ = lane_lines[1][0]                       # x2 of right lane
        x_offset = (lx2 + rx2) / 2 - width / 2                # Offset from image center
    elif len(lane_lines) == 1:
        x1, _, x2, _ = lane_lines[0][0]
        x_offset = x2 - x1                                    # Estimate curve direction
    else:
        x_offset = 0                                          # No line detected, go straight

    y_offset = height / 2                                     # Fixed vertical reference
    angle = math.atan2(x_offset, y_offset)                    # Calculate angle in radians
    return int(angle * 180.0 / math.pi) + 90                  # Convert to degrees (center = 90)

# Draw the steering direction on the output image
def display_heading_line(frame, angle, color=(0, 0, 255), width=5):
    heading_image = np.zeros_like(frame)
    height, width_frame, _ = frame.shape
    rad = math.radians(angle)
    x1 = width_frame // 2
    y1 = height
    x2 = int(x1 - height / 2 / math.tan(rad))                 # Project heading line
    y2 = height // 2
    cv2.line(heading_image, (x1, y1), (x2, y2), color, width)
    return cv2.addWeighted(frame, 0.8, heading_image, 1, 1)   # Overlay onto original frame

# Convert the steering angle into a PWM value for servo motor control
def angle_to_pwm(angle):
    angle = max(60, min(120, angle))                          # Clamp angle range
    if angle >= 90:
        return 7.5 - (angle - 90) / 0.7 * (1.6 / 30)
    else:
        return 7.5 - (angle - 90) / 1.5 * (1.5 / 30)

# PD controller configuration
last_error = 0                    # Store previous speed error for derivative term
last_time = time.time()          # Time of last update for derivative calculation
Kp = 0.4                         # Proportional gain: amplifies current speed error
Kd = Kp * 0.75                  # Derivative gain: dampens change rate of error
base_speed = 7.5                # Base PWM duty cycle (neutral driving value)

# Compute PWM throttle using PD control (based on difference between target and actual speed)
# NOTE: In the final version, this PD control is computed but not used (hardware PWM is fixed)
def compute_throttle_pwm(angle):
    global last_error, last_time
    now = time.time()                       # Get current time
    dt = now - last_time                    # Time elapsed since last update
    error = target_rps - current_rps        # Compute speed error

    if error < 0:                           # Avoid negative error (overspeeding)
        error = 0.01

    P = Kp * error                          # Proportional component
    D = Kd * (error - last_error) / dt if dt > 0 else 0  # Derivative component
    last_error = error                      # Update last error
    last_time = now                         # Update last time
    return min(7.99, max(7.9, base_speed + P + D))  # Return clamped PWM value

# Detect red regions in the frame using HSV color filtering
# Combines two HSV ranges to detect both ends of red spectrum
def detect_red_stop(frame):
    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)  # Convert image to HSV color space

    # Red can appear in two HSV ranges: low (0-10) and high (160-180)
    lower_red1 = np.array([0, 100, 100])
    upper_red1 = np.array([10, 255, 255])
    lower_red2 = np.array([160, 100, 100])
    upper_red2 = np.array([180, 255, 255])

    # Create masks for both red ranges
    mask1 = cv2.inRange(hsv, lower_red1, upper_red1)
    mask2 = cv2.inRange(hsv, lower_red2, upper_red2)

    # Combine both red masks
    red_mask = cv2.bitwise_or(mask1, mask2)

    # Return number of red pixels (normalized)
    return np.sum(red_mask) / 255

# Video stream and smoothing buffers
video = cv2.VideoCapture(0)                          # Initialize webcam stream
video.set(cv2.CAP_PROP_FRAME_WIDTH, 320)             # Set frame width
video.set(cv2.CAP_PROP_FRAME_HEIGHT, 240)            # Set frame height

# Buffers to store previous PWM values for smoothing
steering_buffer = []
drive_buffer = []
STEERING_BUFFER_SIZE = 15
DRIVE_BUFFER_SIZE = 15

# Initialize stop detection state
red_detected_count = 0                               # How many stops encountered
red_detected = False                                 # Whether red is currently detected

# Main control loop
try:
    while True:
        ret, frame = video.read()                    # Capture a frame from camera
        if not ret:
            continue                                 # Skip if frame not valid

        # Function to set drive motor PWM using sysfs
        def set_hardware_pwm(duty_percent):
            duty_ns = int(20000000 * duty_percent / 100.0)  # Convert to nanoseconds
            with open(f"{PWM_CHANNEL}/duty_cycle", 'w') as f:
                f.write(str(duty_ns))

        # ---------- Image Processing Pipeline ----------
        hsv = convert_to_HSV(frame)                  # Convert to HSV
        edges = detect_edges(hsv)                    # Edge detection (blue lines)
        roi = region_of_interest(edges)              # Apply region mask
        segments = detect_line_segments(roi)         # Extract line segments
        lanes = average_slope_intercept(frame, segments)  # Fit left/right lane lines
        angle = get_steering_angle(frame, lanes)     # Determine steering angle
        lane_img = display_lines(frame, lanes)       # Draw lane lines
        final_img = display_heading_line(lane_img, angle)  # Draw heading line

        # ---------- Compute PWM values ----------
        target_steering_pwm = angle_to_pwm(angle)    # Convert angle to PWM for steering
        target_drive_pwm = compute_throttle_pwm(angle)  # Compute throttle (though unused)

        # ---------- Apply Moving Average ----------
        steering_buffer.append(target_steering_pwm)
        drive_buffer.append(target_drive_pwm)
        if len(steering_buffer) > STEERING_BUFFER_SIZE:
            steering_buffer.pop(0)
        if len(drive_buffer) > DRIVE_BUFFER_SIZE:
            drive_buffer.pop(0)
        average_steering_pwm = sum(steering_buffer) / len(steering_buffer)
        average_drive_pwm = sum(drive_buffer) / len(drive_buffer)

        # ---------- Stop Box Detection ----------
        red_area = detect_red_stop(frame)
        if red_area > 15000:                          # Large red area detected
            if not red_detected:
                red_detected = True
                red_detected_count += 1
                if red_detected_count == 1:           # First stop box
                    print("First stop detected: pausing 3 seconds")
                    time.sleep(1)
                    set_hardware_pwm(7.5)             # Pause motor
                    time.sleep(3)
                    set_hardware_pwm(average_drive_pwm)
                elif red_detected_count == 2:         # Second stop box
                    print("Second stop detected: stopping permanently")
                    time.sleep(0.5)
                    set_hardware_pwm(7.5)             # Final stop
                    break
        else:
            if red_area < 100:                        # Reset if red disappears
                red_detected = False

        # ---------- Apply PWM to Motors ----------
        steering_pwm.ChangeDutyCycle(average_steering_pwm)  # Steering servo
        set_hardware_pwm(average_drive_pwm)                 # Drive motor
        print(average_drive_pwm)

        # ---------- Show Camera Debug View ----------
        cv2.imshow("Lane Following", final_img)
        cv2.imshow("roi", roi)
        if cv2.waitKey(1) & 0xFF == 27:              # ESC key to exit
            break

# Shutdown and Cleanup
finally:
    video.release()
    cv2.destroyAllWindows()
    steering_pwm.ChangeDutyCycle(7.5)                # Reset steering to center
    set_hardware_pwm(7.5)                            # Reset drive motor
    time.sleep(1)
    steering_pwm.stop()
    #drive_pwm.stop()
    GPIO.cleanup()                                   # Release all GPIO resources

Credits

Tom Lu
1 project • 1 follower
Chenxin Yan
1 project • 1 follower
Yixiang Yu
1 project • 1 follower
Chengyun Tang
1 project • 1 follower

Comments
