Integrate a IR Remote controlled fan with OpenHAB w/ TASMOTA

Discover how I built a smart IR remote controller using a WEMOS D1 module to automate my new BLDC fan. In this video, I’ll walk you through the setup and integration process, enabling full control of the fan through my home automation system using MQTT. Watch to see how you can bring convenience and smart control to everyday appliances!

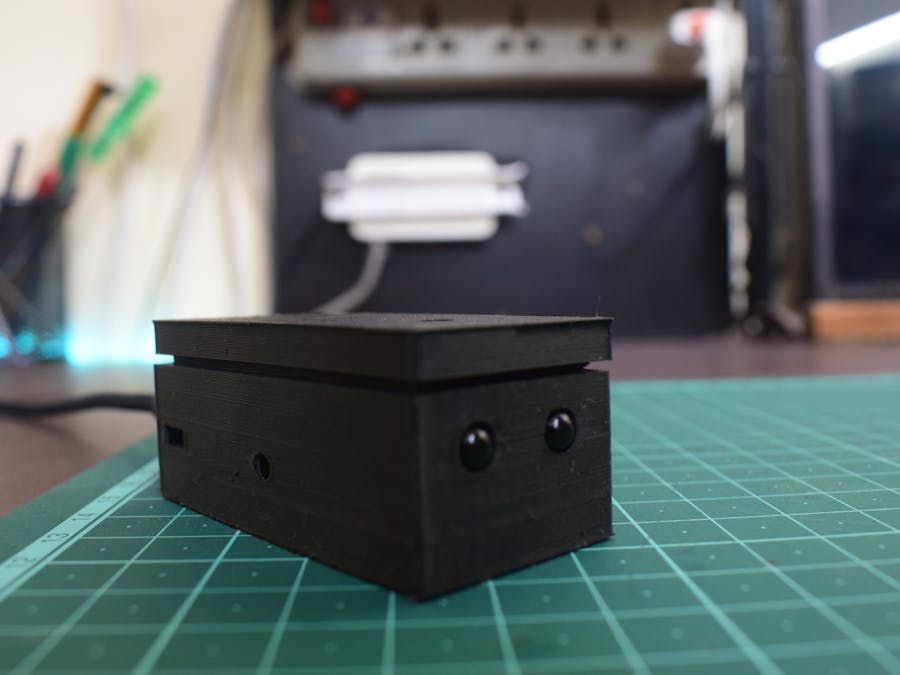

Project Enclosure:

Thingiverse Link

Connection Diagram:

How to get the IR data from remote control

I have used a TSOP IR receiver sensor to copy the data from the remote of the fan, using an Arduino UNO. For the purpose I have used the Arduino IR Remote library. The usage is fairly simple.

I used the ReceiveDump example sketch to dump the data received by TSOP to terminal. Make sure you are using 115200 baud rate and TSOP is connected to +5V.Please ensure the TSOP data pin is connected to pin 2 of Arduino UNO.

Then you can press the button on the remote and you will see the respective data for the button pressed in Arduino console.

A sample data for a button press.

Protocol=NEC Address=0xF300 Command=0x90 Raw-Data=0x6F90F300 32 bits LSB first

Send with: IrSender.sendNEC(0xF300, 0x90, <numberOfRepeats>);

Raw result in internal ticks (50 us) - with leading gap
rawData[68]:
 -4786
 +179,-88
 +12,-11 +12,-10 +12,-11 +11,-11
 +12,-10 +12,-11 +12,-10 +12,-11
 +12,-32 +12,-33 +12,-11 +12,-10
 +12,-32 +13,-32 +12,-32 +13,-32
 +12,-11 +12,-11 +11,-11 +12,-10
 +12,-33 +12,-11 +11,-11 +12,-32
 +13,-32 +12,-32 +13,-32 +13,-32
 +12,-11 +11,-33 +12,-32 +13,-10
 +12
Sum: 1308  .
rawData[68]:
 -239300
 +8950,-4400
 + 600,- 550 + 600,- 500 + 600,- 550 + 550,- 550
 + 600,- 500 + 600,- 550 + 600,- 500 + 600,- 550
 + 600,-1600 + 600,-1650 + 600,- 550 + 600,- 500
 + 600,-1600 + 650,-1600 + 600,-1600 + 650,-1600
 + 600,- 550 + 600,- 550 + 550,- 550 + 600,- 500
 + 600,-1650 + 600,- 550 + 550,- 550 + 600,-1600
 + 600,- 550 + 600,- 550 + 550,- 550 + 600,- 500
 + 600,- 550 + 550,-1650 + 600,-1600 + 650,- 500
 + 600
Sum: 65400

Result as internal 8bit ticks (50 us) array - compensated with MARK_EXCESS_MICROS=20
uint8_t rawTicks[67] = {179,88, 12,11, 12,10, 12,11, 11,11, 12,10, 12,11, 12,10, 12,11, 12,32, 12,33, 12,11, 12,10, 12,32, 13,32, 12,32, 13,32, 12,11, 12,11, 11,11, 12,10, 12,33, 12,11, 11,11, 12,32, 13,32, 12,32, 13,32, 13,32, 12,11, 11,33, 12,32, 13,10, 12};  // Protocol=NEC Address=0xF300 Command=0x90 Raw-Data=0x6F90F300 32 bits LSB first

Result as microseconds array - compensated with MARK_EXCESS_MICROS=20
uint16_t rawData[67] = {8930,4420, 580,570, 580,520, 580,570, 530,570, 580,520, 580,570, 580,520, 580,570, 580,1620, 580,1670, 580,570, 580,520, 580,1620, 630,1620, 580,1620, 630,1620, 580,570, 580,570, 530,570, 580,520, 580,1670, 580,570, 530,570, 580,1620, 630,1620, 580,1620, 630,1620, 630,1620, 580,570, 530,1670, 580,1620, 630,520, 580};  // Protocol=NEC Address=0xF300 Command=0x90 Raw-Data=0x6F90F300 32 bits LSB first

uint16_t address = 0xF300;
uint16_t command = 0x90;
uint32_t rawData = 0x6F90F300;


Pronto Hex as string
char prontoData[] = "0000 006D 0022 0000 0159 00A8 0018 0014 0018 0012 0018 0014 0016 0014 0018 0012 0018 0014 0018 0012 0018 0014 0018 003D 0018 003F 0018 0014 0018 0012 0018 003D 001A 003D 0018 003D 001A 003D 0018 0014 0018 0014 0016 0014 0018 0012 0018 003F 0018 0014 0016 0014 0018 003D 001A 003D 0018 003D 001A 003D 001A 003D 0018 0014 0016 003F 0018 003D 001A 0012 0018 06C3 ";

TASMOTA Rules set up

Following is the rule you need to setup in TASMOTA. For details checkout the video

Rule1 ON IrSend#Data DO Led1 ON ENDON ON IrSend#Data DO backlog delay 5; Led1 OFF ENDON
Rule1 1

on/off: irsend 0,8930,4420,580,570,580,520,580,570,580,520,580,570,580,520,580,570,580,520,580,1670,580,1620,580,570,580,520,580,1670,580,1620,580,1670,580,1670,580,1620,580,570,580,520,580,570,580,1620,580,570,580,520,580,1670,580,520,580,1670,580,1670,580,1620,580,570,580,1620,580,1670,580,520,580
1:      irsend 0,8880,4420,580,570,580,520,580,570,530,570,580,570,530,570,580,520,580,570,580,1670,530,1670,580,570,580,520,580,1620,630,1620,580,1670,580,1670,530,1670,580,1620,630,520,580,1620,630,520,580,570,580,520,580,1620,630,520,580,570,580,1620,580,570,580,1620,580,1670,580,1620,630,520,580
2:      irsend 0,8930,4420,580,520,580,570,580,520,630,520,580,520,580,520,630,520,580,570,580,1620,580,1670,580,520,580,570,580,1620,580,1670,580,1670,580,1620,630,520,580,520,580,570,580,520,580,1670,580,520,630,520,580,1620,580,1670,580,1670,580,1620,580,1670,580,520,580,1670,580,1670,580,520,580
3:      irsend 0,8930,4420,580,570,580,520,580,570,580,520,580,570,580,520,630,520,580,520,580,1670,580,1620,630,520,580,520,580,1670,580,1620,580,1670,580,1670,580,520,580,1670,580,520,580,1670,580,520,580,570,580,520,580,1670,580,1670,530,570,580,1620,630,520,580,1670,580,1620,580,1670,580,520,580
4:      irsend 0,8930,4370,630,520,580,520,630,520,580,570,580,520,580,570,580,520,580,520,630,1620,580,1670,580,520,580,520,630,1620,630,1620,580,1670,580,1620,580,1670,580,1620,630,520,580,570,580,1620,580,570,580,520,580,1670,580,520,580,570,580,1620,580,1670,580,520,580,1670,580,1620,630,520,580
5:      irsend 0,8930,4420,580,520,580,570,580,520,580,570,580,520,580,570,580,520,580,520,630,1620,580,1670,580,520,630,470,630,1620,580,1670,580,1670,580,1620,630,470,630,520,580,520,630,1620,580,520,630,520,580,520,630,1620,580,1670,580,1670,580,1620,580,520,630,1620,580,1670,580,1670,580,520,580
B:      irsend 0,8930,4420,580,570,580,520,580,520,580,570,580,520,580,570,580,520,580,570,580,1620,580,1670,580,570,580,520,580,1670,580,1620,580,1670,580,1620,580,1670,580,1670,580,1620,580,1670,580,520,580,570,580,520,580,1670,580,520,580,570,580,520,580,570,580,1670,580,1620,580,1670,580,520,580
Timer:  irsend 0,8880,4420,630,520,580,520,580,570,580,520,580,570,580,520,580,570,580,520,580,1670,580,1670,580,520,580,520,630,1620,580,1670,580,1620,580,1670,580,520,580,1670,580,1620,630,520,580,1670,580,520,580,520,630,1620,580,1670,580,520,580,520,630,1620,580,570,580,1620,630,1620,580,520,630
OSC:    irsend 0,8930,4420,580,570,580,520,580,570,580,520,580,570,580,520,580,520,630,520,580,1670,580,1670,530,570,580,520,580,1670,580,1670,580,1620,580,1670,580,1670,580,1620,580,1670,580,520,580,1670,580,520,580,570,580,1620,580,570,580,520,580,570,580,1620,580,570,580,1670,530,1670,580,570,580
Sleep:  irsend 0,8930,4370,630,520,580,520,630,520,630,520,580,520,580,570,580,520,580,520,630,1620,630,1620,580,520,630,470,630,1620,630,1620,630,1620,580,1620,630,520,580,1620,580,1670,580,1620,630,520,580,570,580,520,580,1670,580,1620,630,520,580,520,580,570,580,1620,630,1620,580,1620,630,520,580
